Disassembly/Assembly > Controller System > Removing the Fixing Delivery/Paper Width Sensor PCB (MF4720w/MF4712/MF4710) > Procedure
Disassembly/Assembly > Controller System > Removing the Fixing Delivery/Paper Width Sensor PCB (MF4720w/MF4712/MF4710) > Procedure
Note:

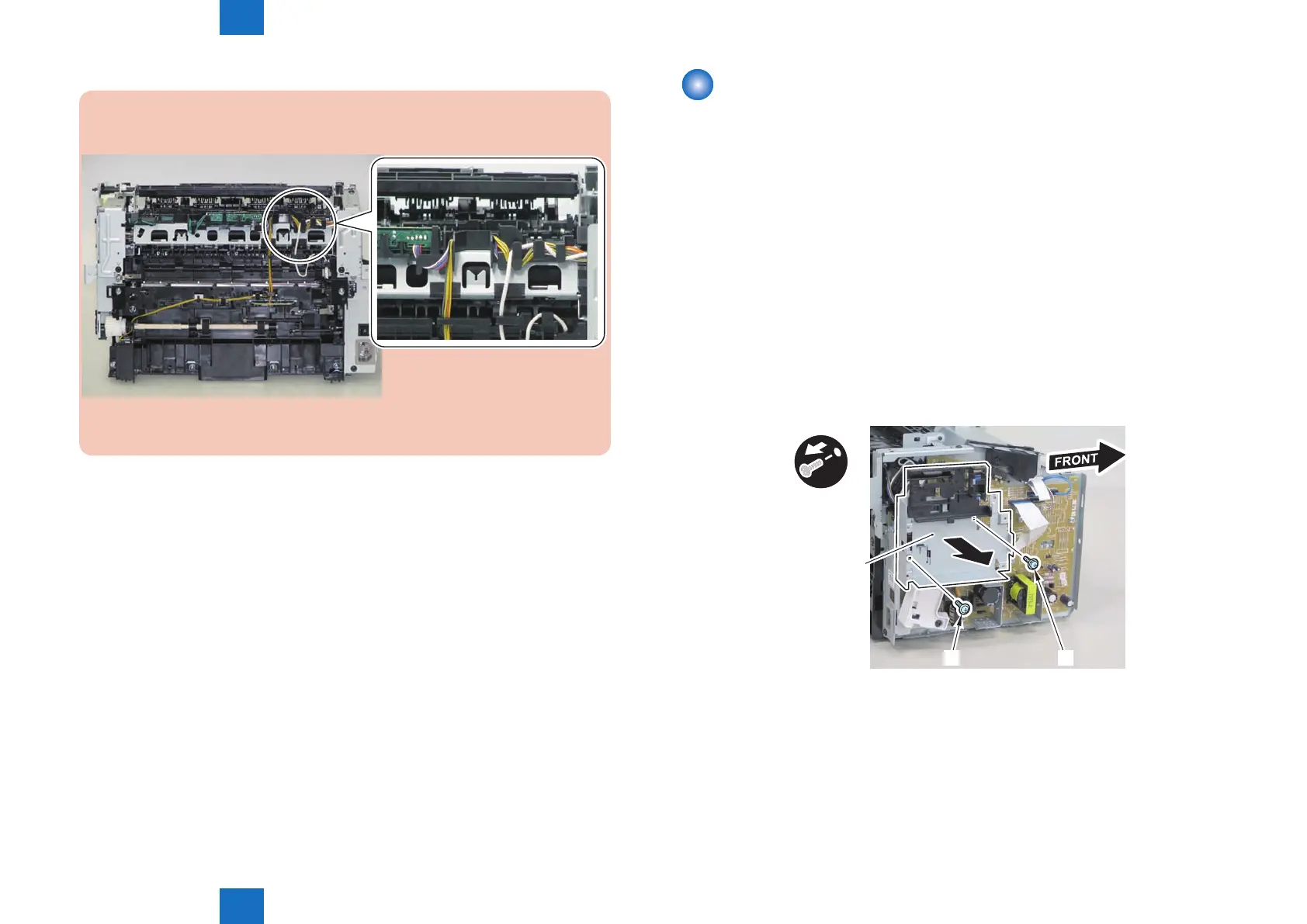

The below picture shows how to wind the harness.
F-4-641
Removing the Fixing Delivery/Paper Width Sensor PCB
(MF4720w/MF4712/MF4710)
■
Preparation
1) Remove the left cover
2)Remove the copyboard cover and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
6)Remove the duplex feed unit.
7)Remove the main controller PCB
■
Procedure
1)Remove the main controller mounting plate[1]
• 1 screw(with washer)[2]
• 1 screw(black TP)[3]
x2
[1]
[2][3]
•
F-4-642
