Canon imageCLASS D530 - Removing the Engine Controller PCB(D530)

4
4
4-201
4-201
Disassembly/Assembly > Controller System > Removing the Engine Controller PCB(D530) > Procedure
Disassembly/Assembly > Controller System > Removing the Engine Controller PCB(D530) > Procedure

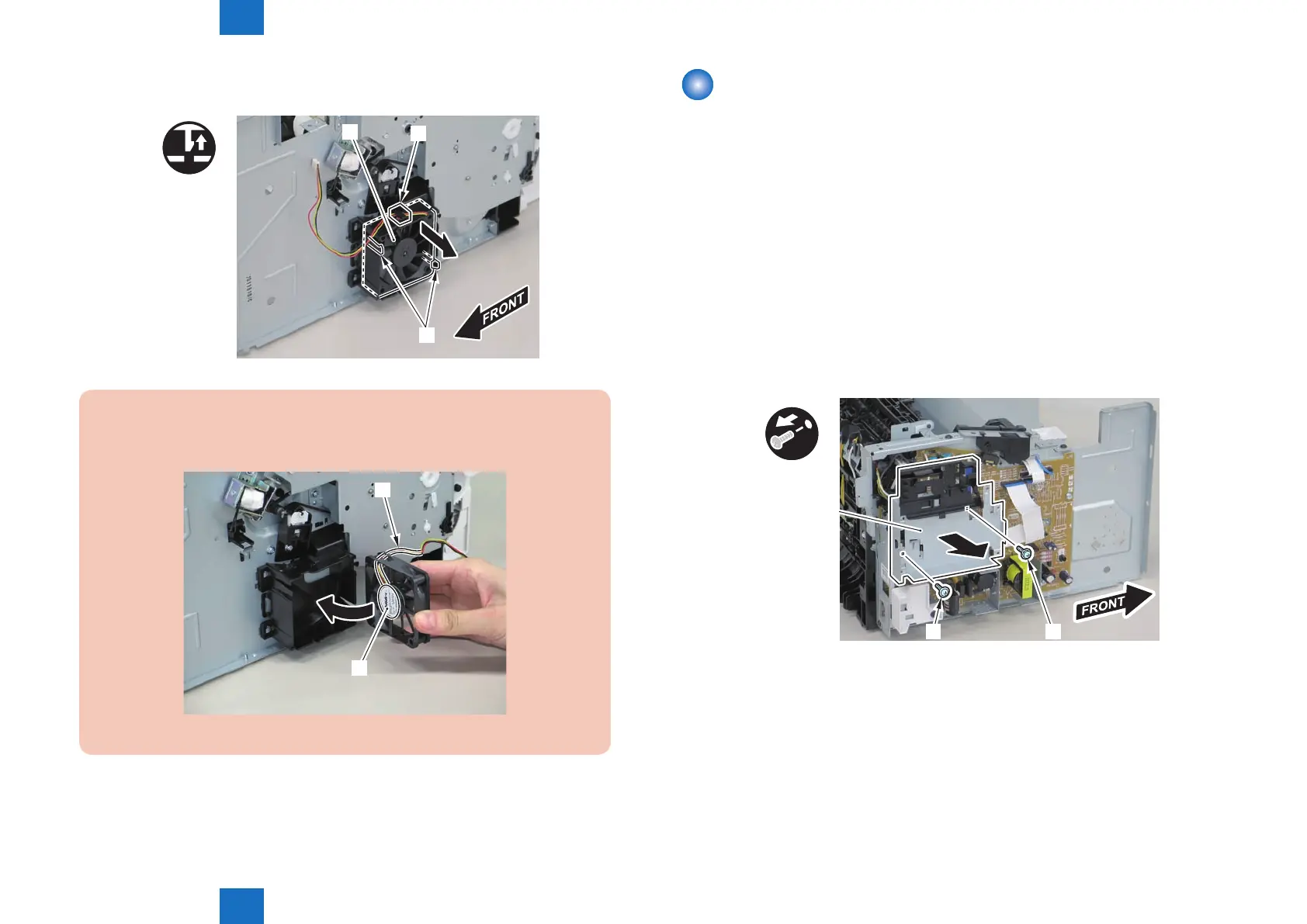

4)Free the harness from the guide[A], and remove the main fan[1].
• 2 claws[2]
x2
[1]
[2]
[A]
Caution:
When mounting the main fan, attach the harness [2] to the upper-right side of the
fan with the fan label [1] facing inwards.
[1]
[2]
F-4-516
F-4-515
Removing the Engine Controller PCB(D530)
■
Preparation
1) Remove the left cover
2)Remove the copyboard cover and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
6)Remove the duplex feed unit.
7)Remove the main controller PCB
■
Procedure
1)Remove the main controller mounting plate[1]
• 1 screw(with washer)[2]
• 1 screw(black TP)[3]
x2
[2][3]
[1]
F-4-517
