Disassembly/Assembly > Controller System > Removing the Control Panel Unit (MF4820d) > Procedure
Disassembly/Assembly > Controller System > Removing the Control Panel Unit (MF4820d) > Procedure

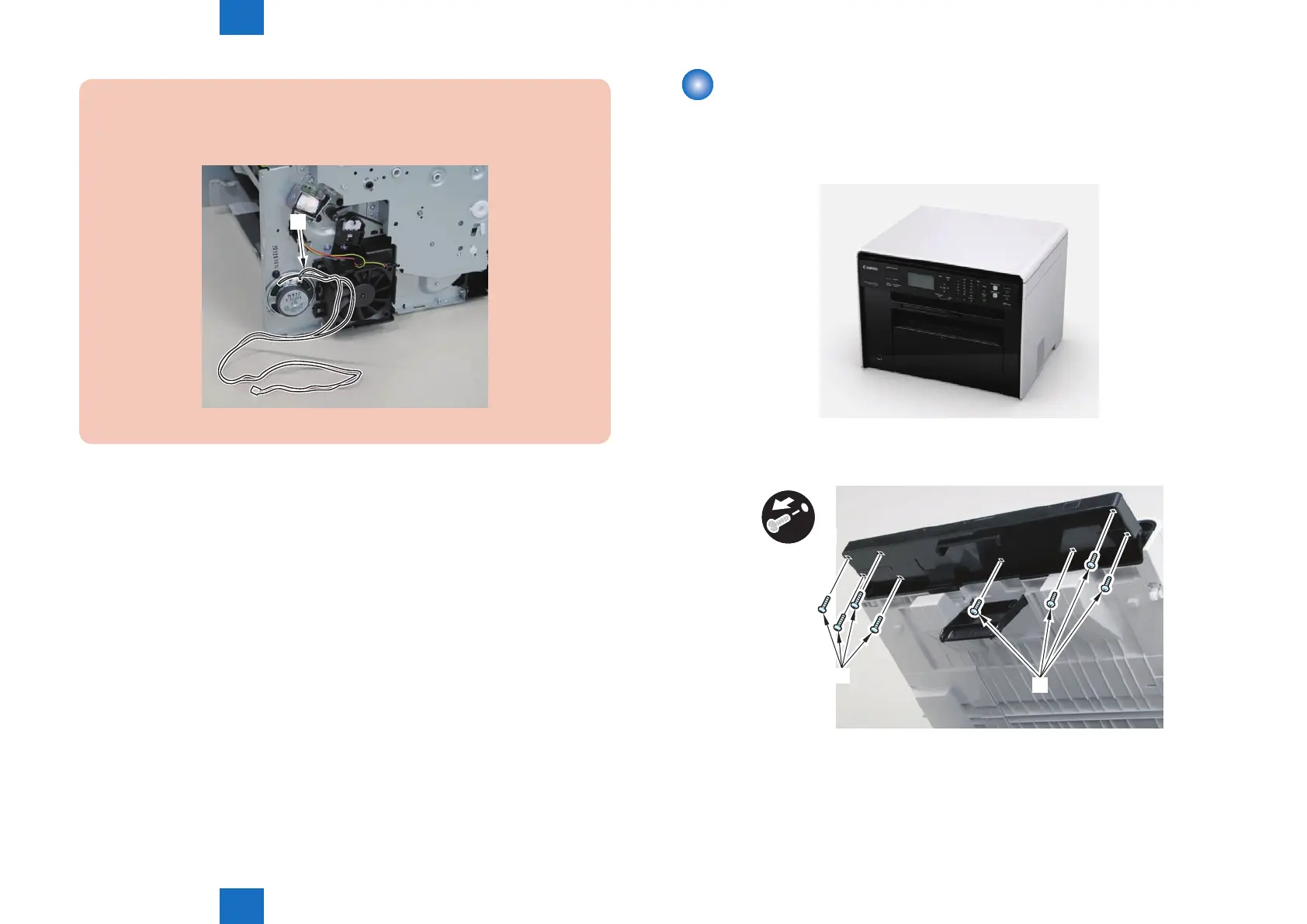

Caution:
When mounting the speaker, attach the harness [1] to the upper side of the speaker.
(So that the speaker harness connector can reach the main controller.)
[1]
F-4-439
Removing the Control Panel Unit (MF4820d)
■
Procedure
1)Open the reader unit and remove the control panel support plate.
2) Remove the 8 screws[1] on the back side of the control panel unit.
x8
[1]
[1]
3) Remove the control panel unit[1]
• 4 claws[2]
• 1 at cable[3]
F-4-440
F-4-441
