Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Glass(MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Glass(MF4890dw/MF4880dw) > Procedure
Removing the Copyboard Glass(MF4890dw/
MF4880dw)
■
Preparation
1) Remove the left cover.
2)Remove the DADF unit and reader unit
3)Remove the DADF unit.
■
Procedure

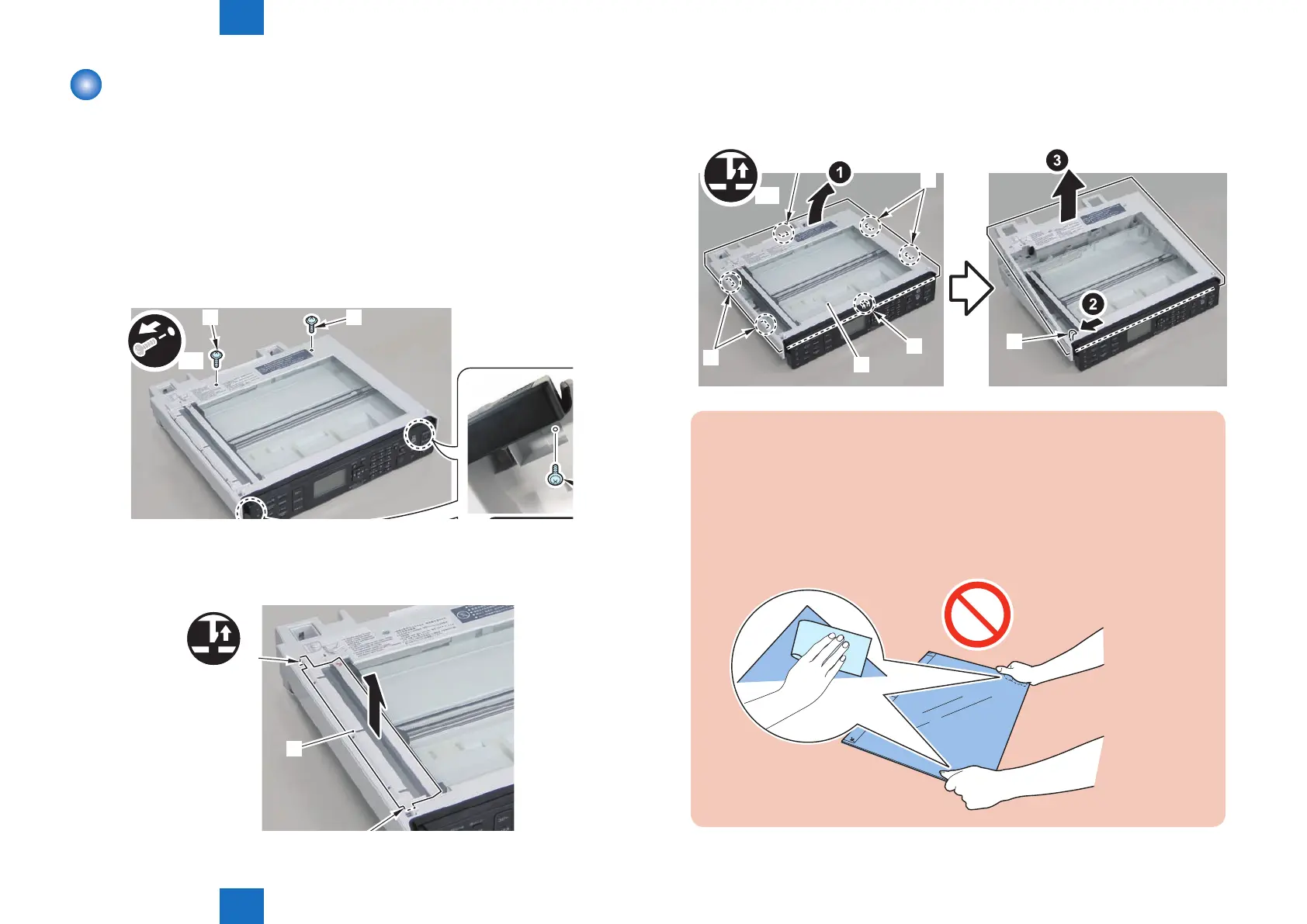

1)Remove the 4 screws(TP)[1]
x4
[1]
[1] [1]
2)Remove the copyboard guide holder[1]
1 claw[2]
1 protrusions[3]
[1]
[3]
[2]
F-4-139
F-4-140
3)Remove the reader upper cover[1]
• 6 claws[2]
• 1 hook[3]
x6
[1]
[2]
[2]
[2]
[2]
[3]
Caution.
Place the detached copyboard glass cover on a cloth etc. to avoid damaging the
bottom sheet.
When removing the copyboard glass, take care not to touch the glass surface.
If the surface becomes dirty, clean it with lens-cleaning paper.
F-4-141
