Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Separation Pad(MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Separation Pad(MF4890dw/MF4880dw) > Procedure

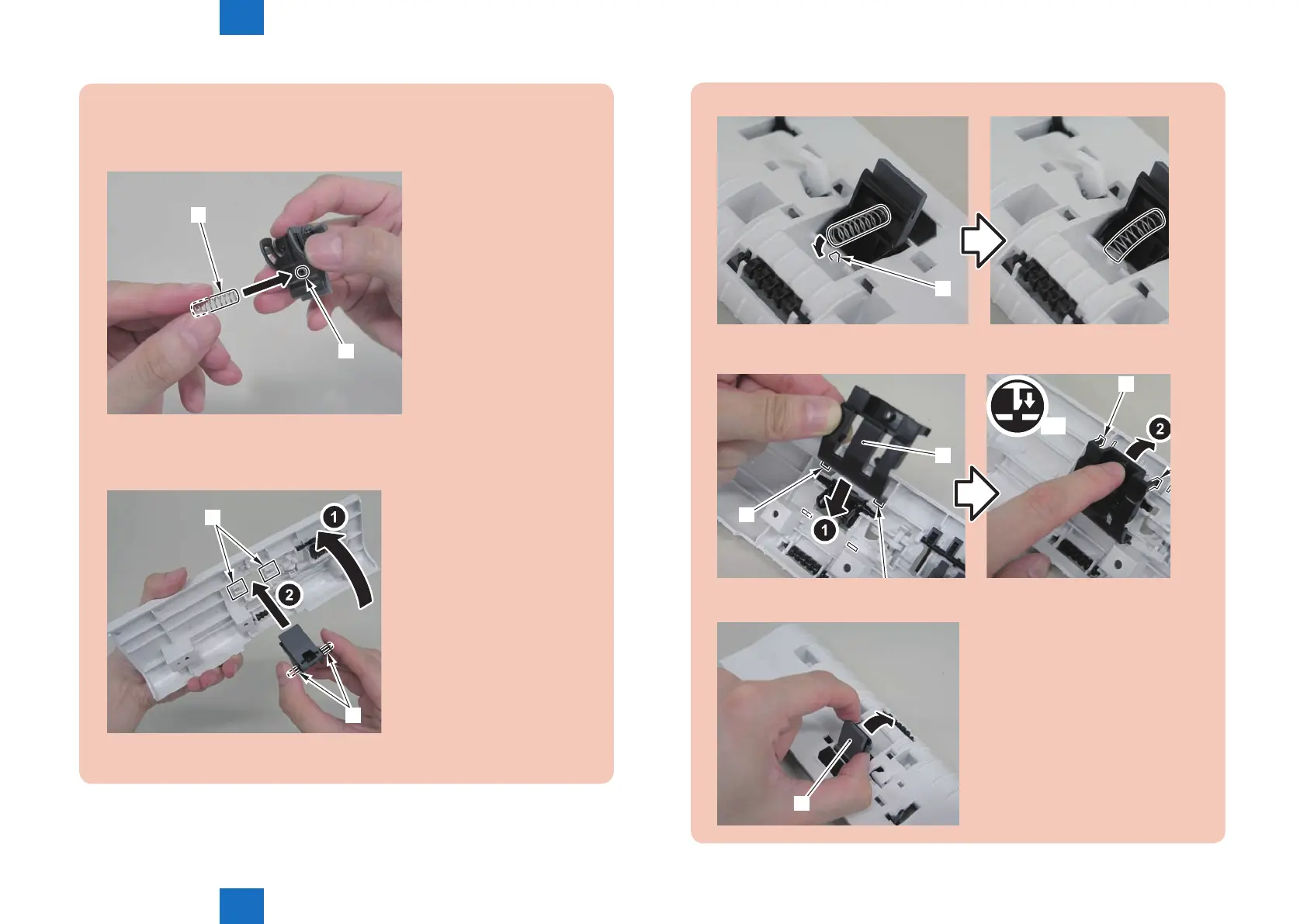

Caution.
When the spring[1] comes off, go through the following steps to install it.
1)Install the spring[1] to the boss[2] on the back side of the separation pad.
[1]
[2]
2)Install the shaft[1] of the separation pad unit to the [A] part on the back side of the
DADF pickup upper cover.
[A]
[1]
3)Install the spring to the protrusion[1] of the DADF pickup upper cover.
[1]
4)Turn the DADF pickup upper cover over to the back, and install the separation pad
cover[1].
x2
[1]
[2]
[2]
[3]
[3]
5)Turn the DADF pickup upper cover over to the front, and push in the separation
pad unit[1].
[1]
