Canon imageCLASS D530 - Removing the CIS Unit(D530)

4
4
4-90
4-90
Disassembly/Assembly > Document Exposure/Feeder System > Removing the CIS Unit(D530) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the CIS Unit(D530) > Procedure

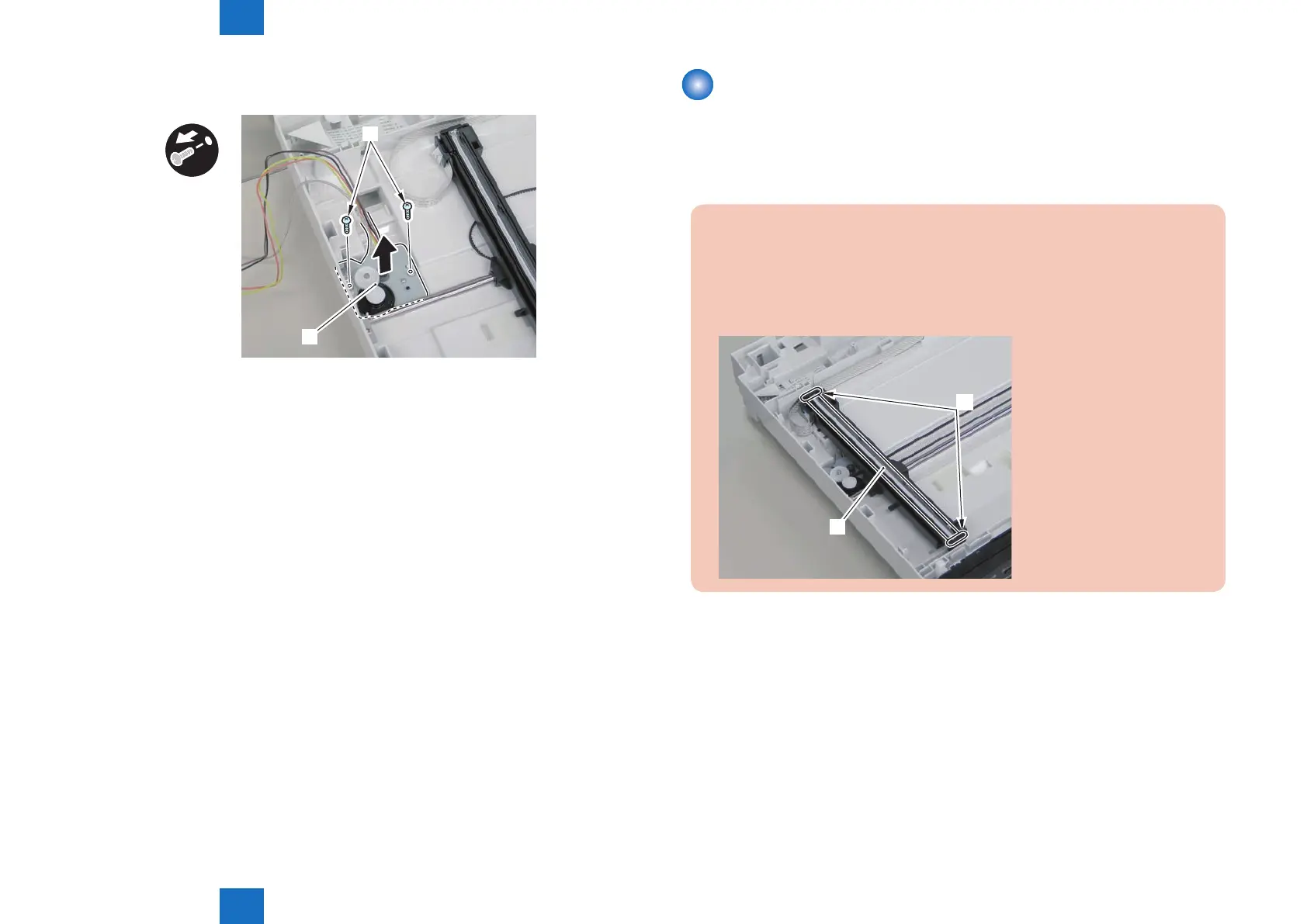

5)Remove the atbed motor unit[1]
• 2 screws[2]
x2
[1]
[2]
F-4-216
Removing the CIS Unit(D530)
■
Preparation
1) Remove the copyboard cover.
2)Remove the control panel unit.
3)Remove the copyboard glass
■
Procedure
Caution.
When assembling/disassembling the CIS unit, take care not to lose the 2 CIS unit
spacers [1].
When assembling/disassembling the CIS unit, do not touch the copy reading area [A]
of the CIS unit.
[1]
[A]
