Canon imageCLASS D530 - List of PCB; Single-Sided Printer Unit; List of Motor;Fan

4
4
4-7
4-7
Disassembly/Assembly > List of Parts > Single-sided Printer Unit > List of Motor/Fan
Disassembly/Assembly > List of Parts > Single-sided Printer Unit > List of Motor/Fan
■

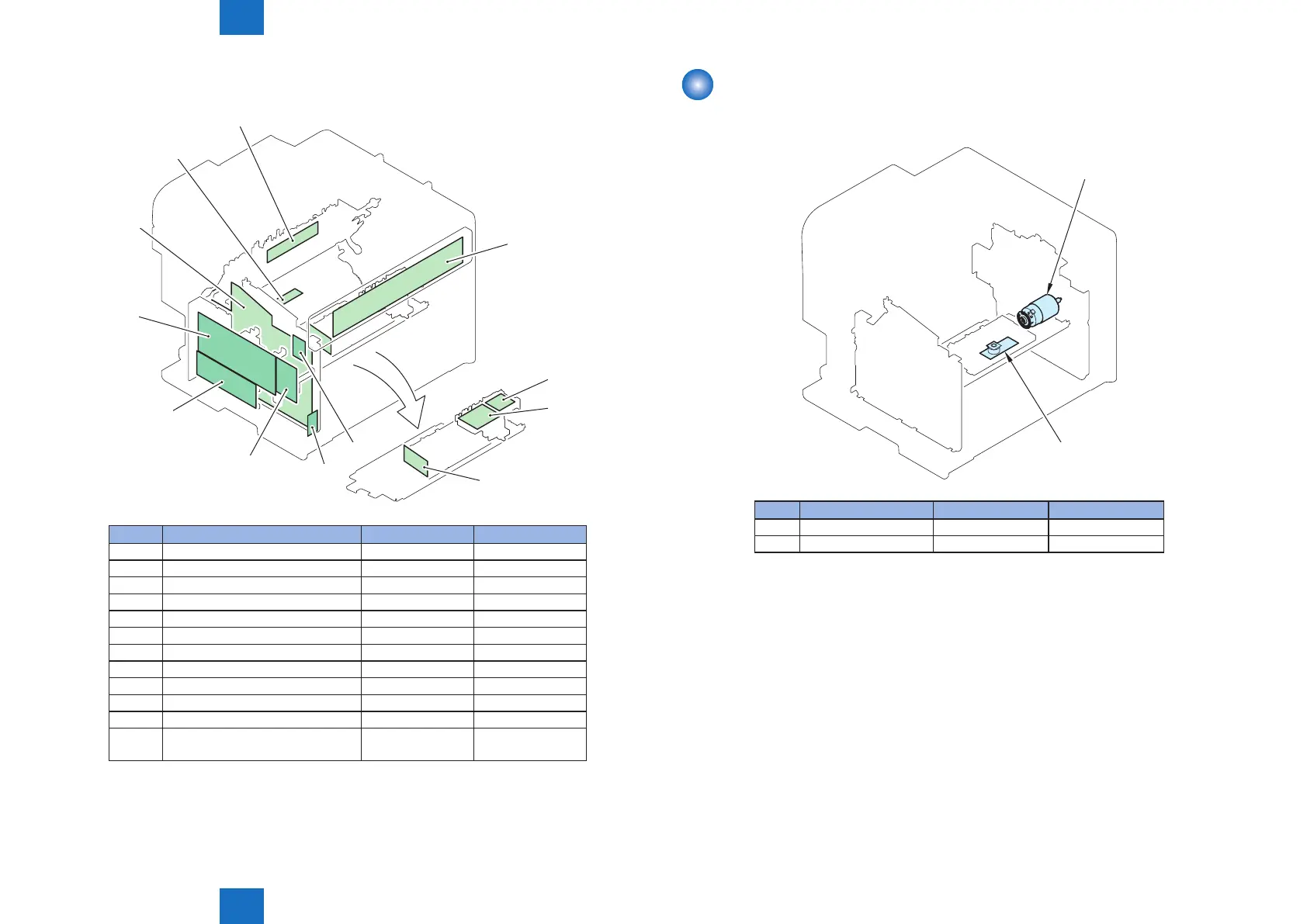

List of PCB
[2]
[3]
[4]
[1]
[8]
[9]
[7]
[12]
[11]
[10]
[5]
[6]
No. Name Reference Remarks
[1] Control Panel PCB - -
[2] Duplex Driver PCB - -
[3] Motor Driver PCB -
[4] Laser Driver PCB
[5] WiFi Module
[6] Switch PCB
[7] Off Hook PCB 100V Model Only
[8] FAX NCU PCB
[9] Main controller PCB
[10] Engine Controller PCB
[11] Paper Leading Edge Sensor PCB
[12]
Fixing Delivery/Paper
Width Sensor PCB
F-4-9
Single-sided Printer Unit
■
List of Motor/Fan
[1]
[2]
No. Name Reference Remarks
[1] Main Motor
[2] Laser Scanner Motor -
F-4-10
