Disassembly/Assembly > Controller System > Removing the Toner Sensor and Multi Pickup Sensor Unit (MF4720w/MF4712/MF4710) > Procedure
Disassembly/Assembly > Controller System > Removing the Toner Sensor and Multi Pickup Sensor Unit (MF4720w/MF4712/MF4710) > Procedure
Removing the Toner Sensor and Multi Pickup Sensor
Unit (MF4720w/MF4712/MF4710)
■
Preparation
1) Remove the left cover
2)Remove the copyboard cover and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
■
Procedure

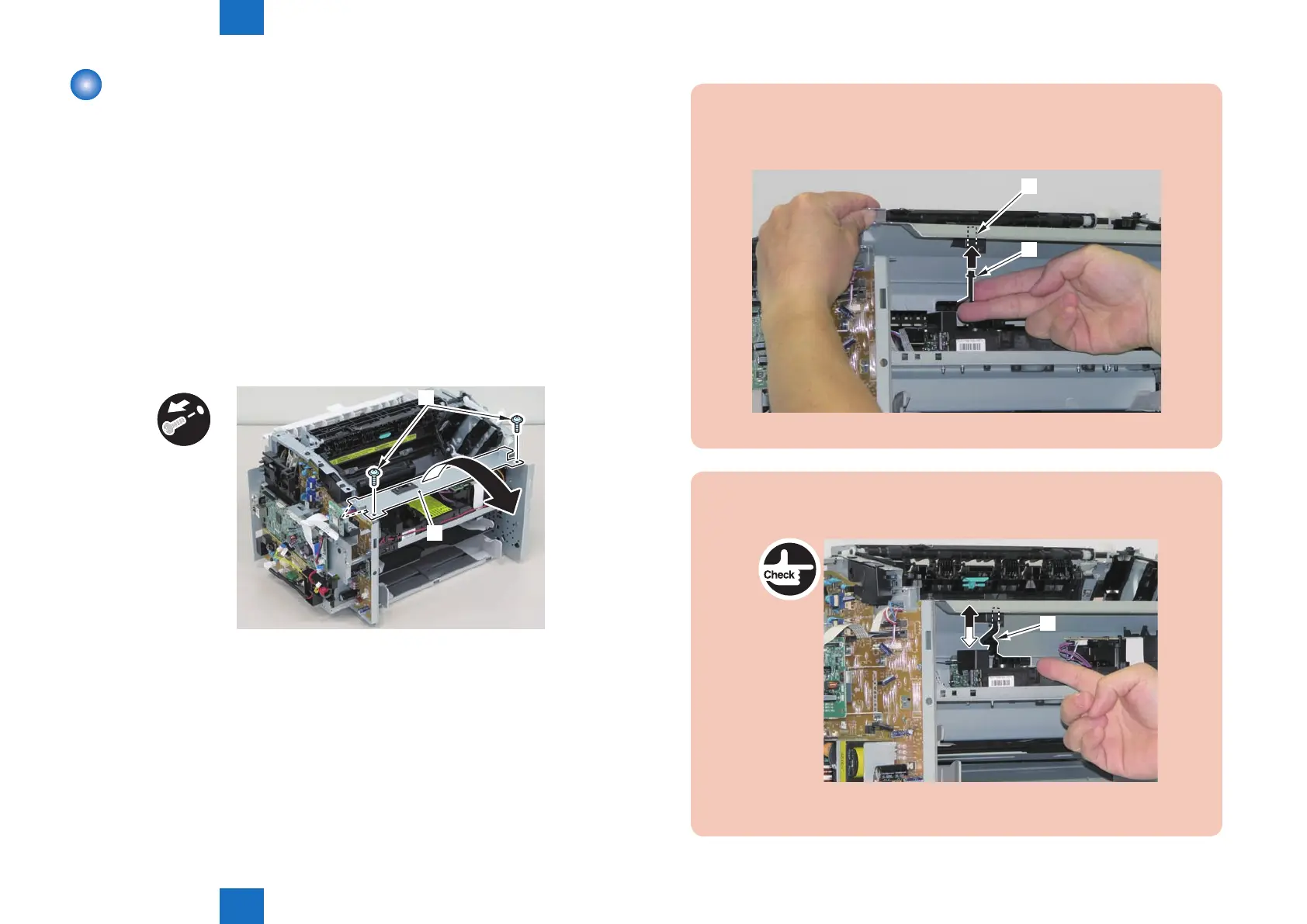

1)Remove the scanner cover[1]
• 2 screws(black TP)[2]
x2
[1]
[2]
F-4-650
Caution:
When mounting the scanner cover, pass the shutter open/close lever [1] through the
hole [A] in the scanner cover.
[1]
[A]
F-4-651
Caution:
Ensure that the shutter open/close lever [1] can move vertically.
[1]
F-4-652
