Disassembly/Assembly > Controller System > Removing the Fixing Delivery/Paper Width Sensor PCB (MF4720w/MF4712/MF4710) > Procedure
Disassembly/Assembly > Controller System > Removing the Fixing Delivery/Paper Width Sensor PCB (MF4720w/MF4712/MF4710) > Procedure

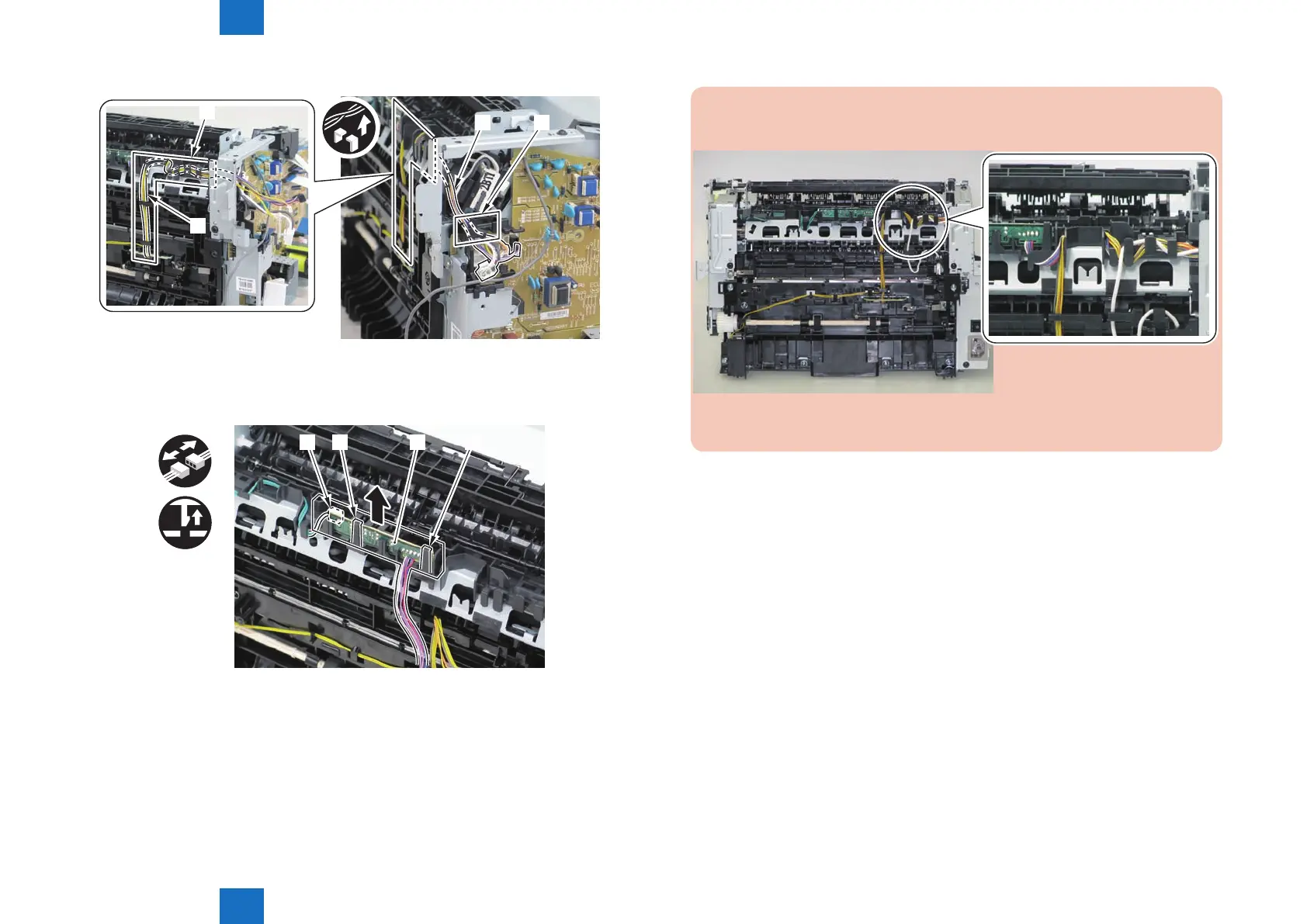

5)Remove the harness[1] from the guide[A] and [B].
[1] [A]
[1]
[B]
6)Remove the xing delivery/paper width sensor PCB[1]
• 1 connector
• 2 claws[3]
x2
[2] [3] [3][1]
F-4-647
F-4-648
Note:
The below picture shows how to wind the harness.
F-4-649
