Disassembly/Assembly > Controller System > Removing the Main Motor (MF4720w/MF4712/MF4710) > Procedure
Disassembly/Assembly > Controller System > Removing the Main Motor (MF4720w/MF4712/MF4710) > Procedure

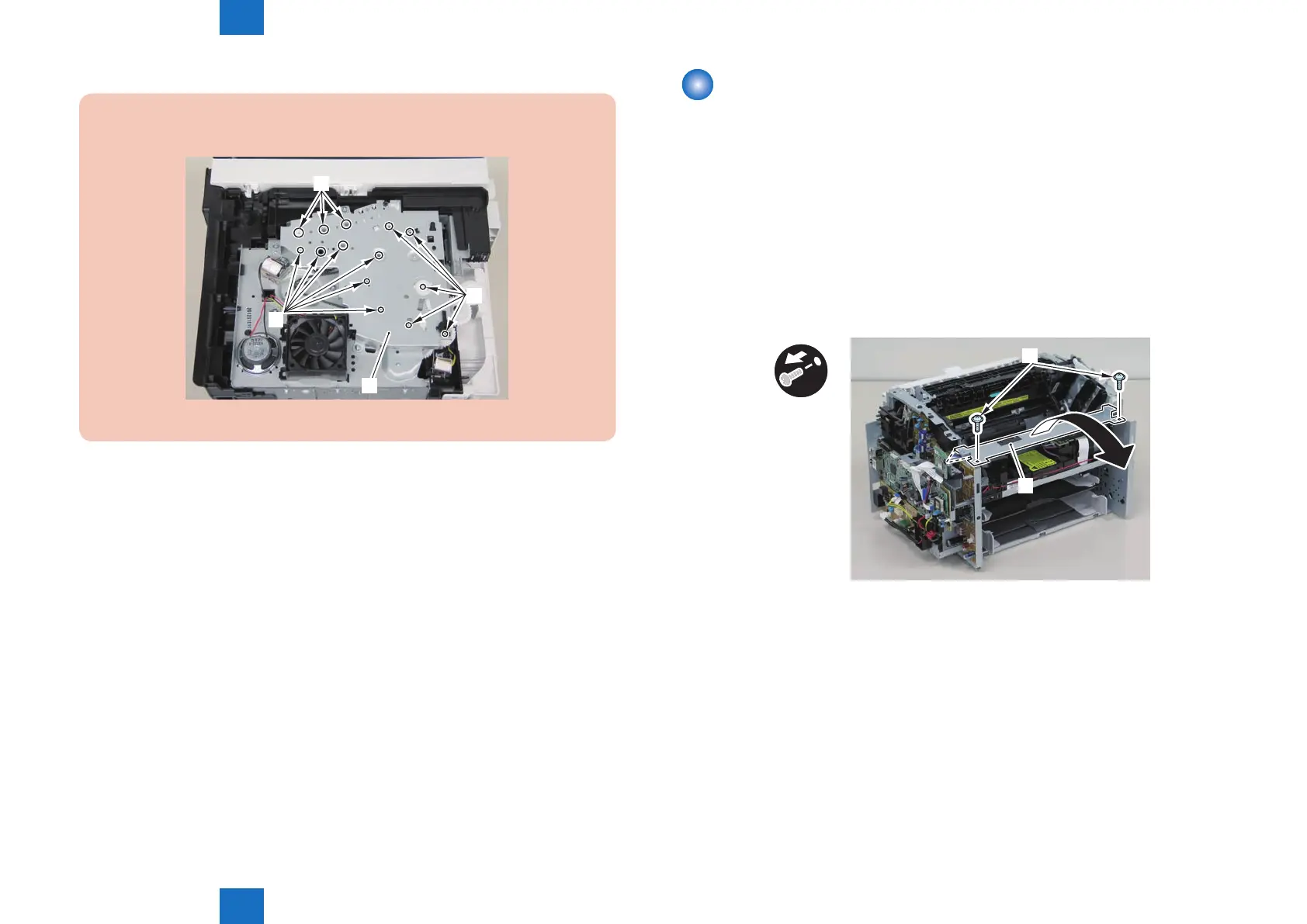

Caution:
Align the drive cover [2] with the 14 shaft holes [1] to mount it.
[2]
[1]
[1]
[1]
F-4-615
Removing the Main Motor (MF4720w/MF4712/MF4710)
■
Preparation
1) Remove the left cover
2)Remove the copyboard cover and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
■
Procedure
1) Remove the scanner cover[1]
• 2 screws(black TP)[2]
[1]
x2
[2]
F-4-616
