Image Formation System
Removing the Transfer Roller (MF4890dw/MF4880dw)
■
Procedure
Caution:
When assembling/disassembling the transfer roller, do not touch the surface of the
roller.

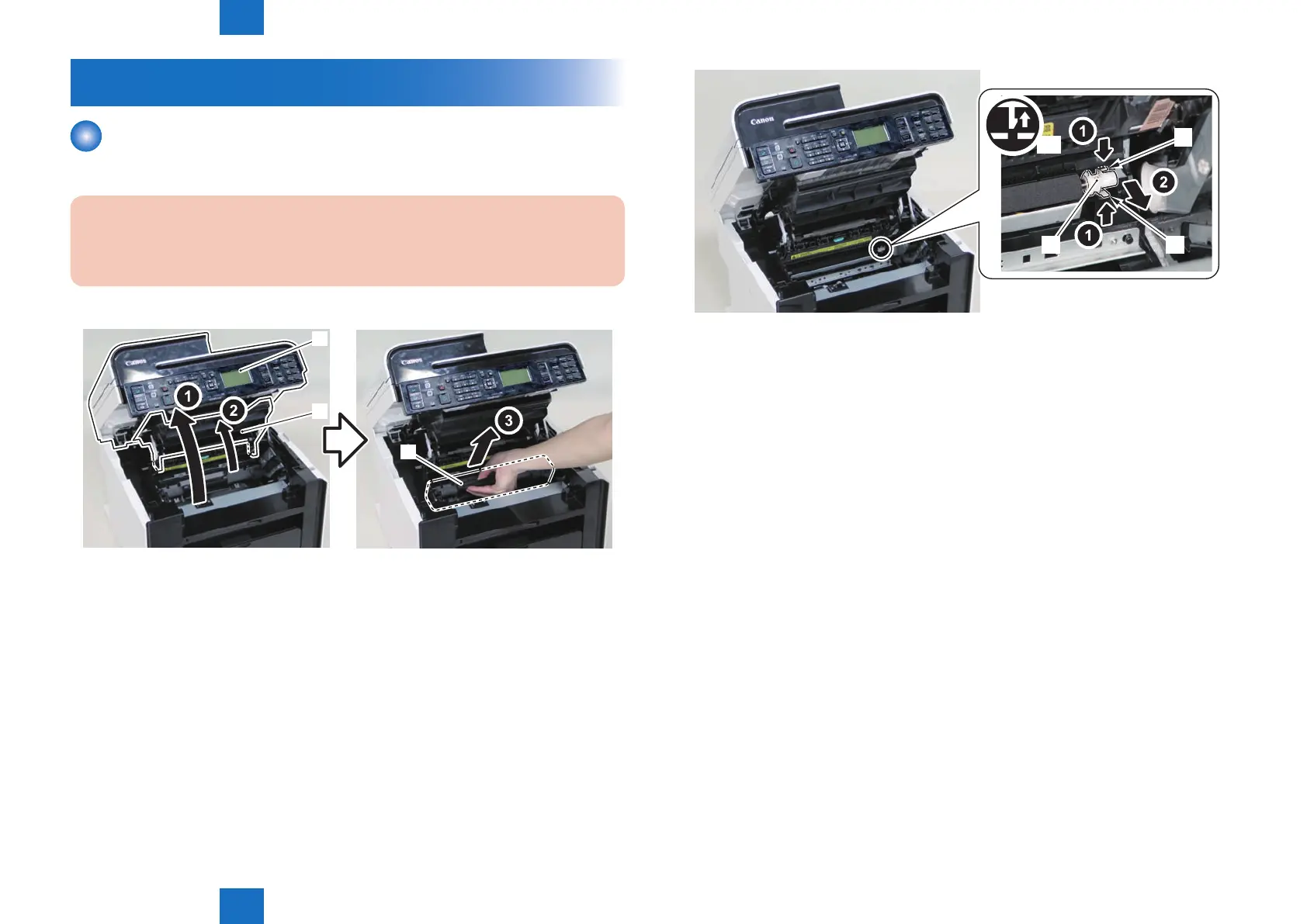

1) Open the reader unit [1] and delivery tray [2]. , and remove the drum unit[3].
[2]
[1]
[3]
2) Remove the transfer roller bushing [1].
• 2 claws [2
F-4-757
[1]
[1]
[2]
[2]
x2
]
F-4-758
