Disassembly/Assembly > Laser Exposure System > Removing the Laser Scanner Unit (L418S/L410/L190) > Procedure
Disassembly/Assembly > Laser Exposure System > Removing the Laser Scanner Unit (L418S/L410/L190) > Procedure
3) Remove the laser scanner unit [1].
• 1 at cable [2]
• 1 connector [3]
x2
[1]
[2]
[3]

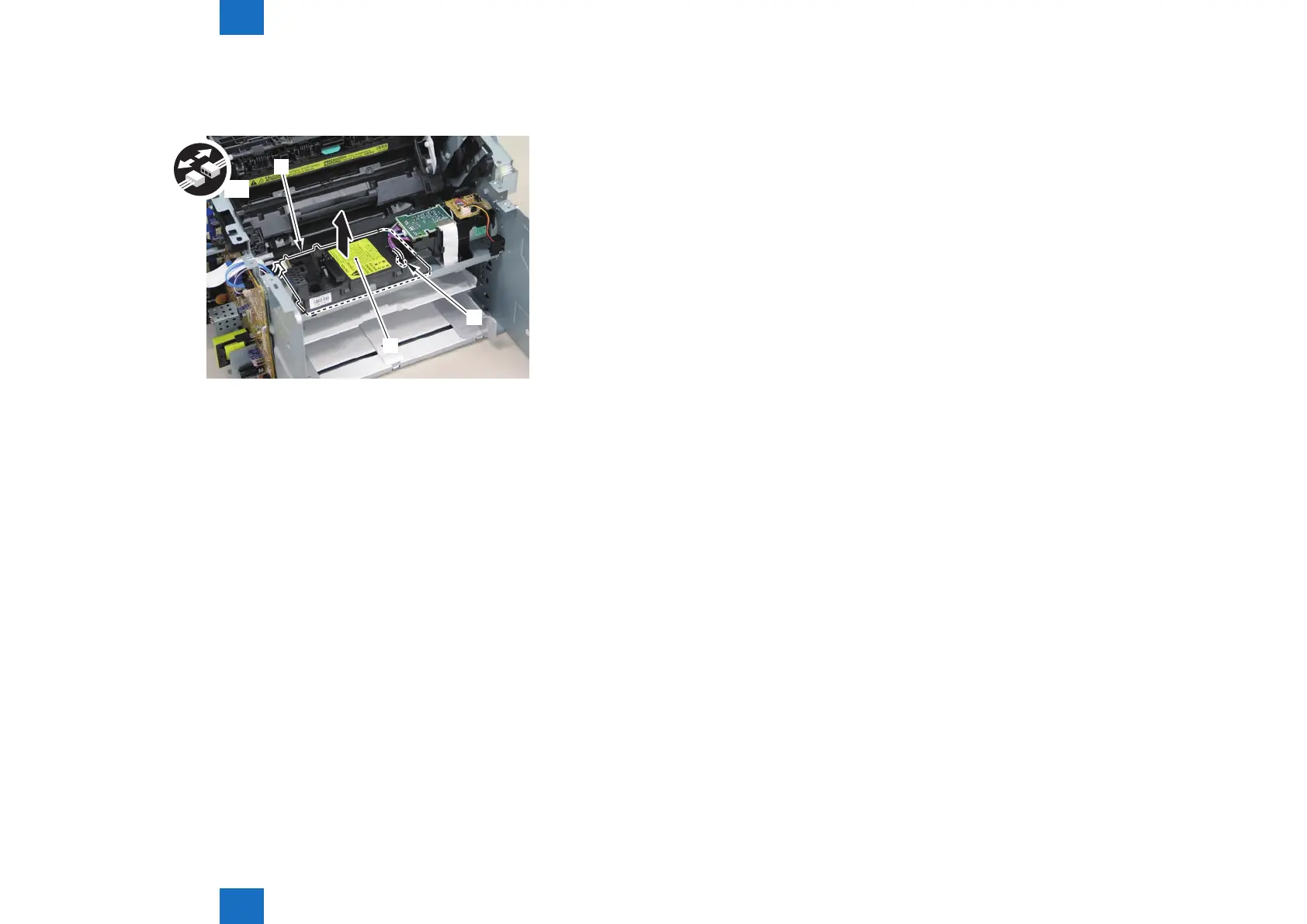

F-4-756
