Disassembly/Assembly > Fixing System > Removing the Fixing Assembly (MF4820d) > Procedure
Disassembly/Assembly > Fixing System > Removing the Fixing Assembly (MF4820d) > Procedure
Note:

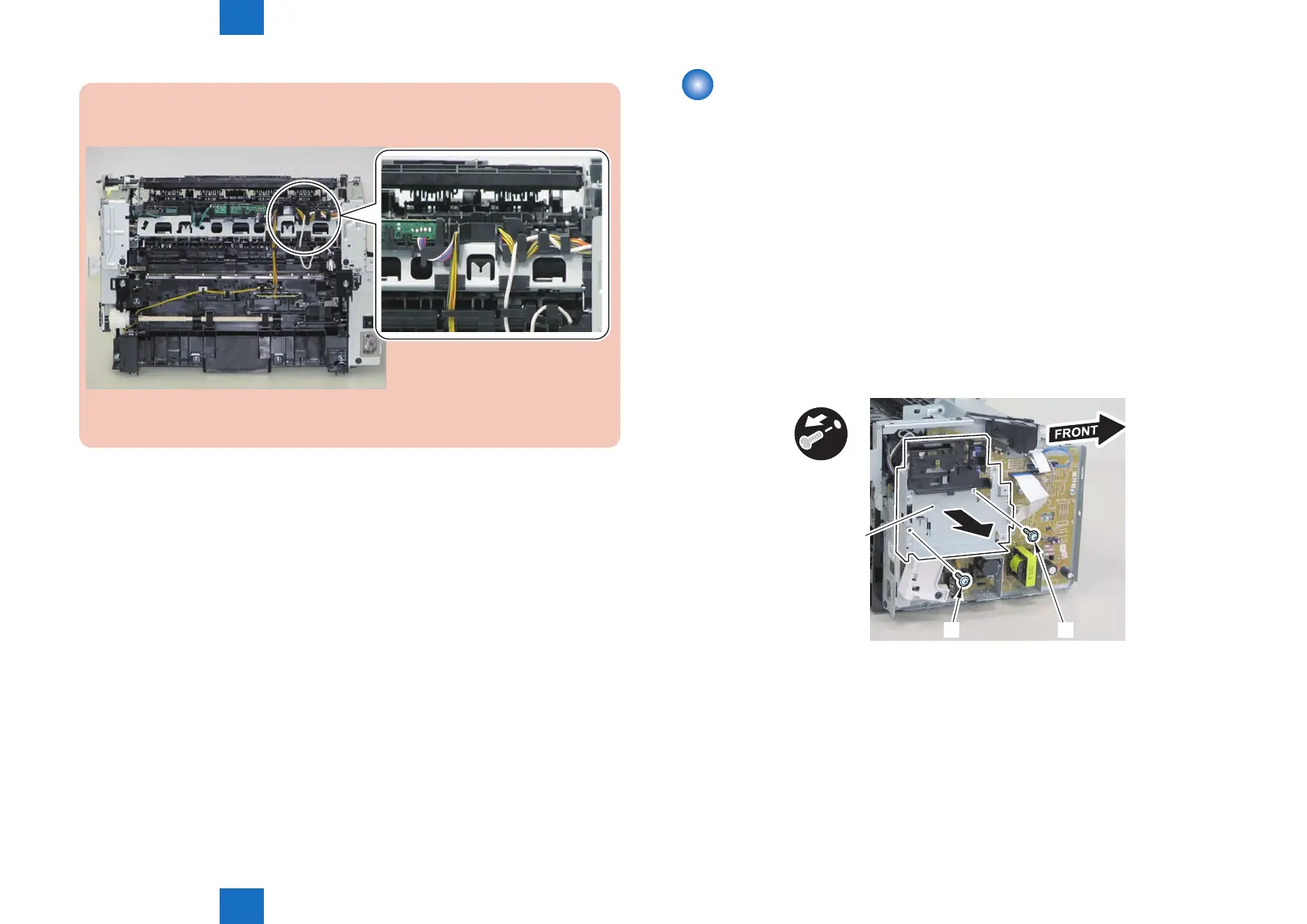

The below picture shows how to wind the harness.
F-4-807
Removing the Fixing Assembly (MF4820d)
■
Preparation
1)Remove the left cover
2)Remove the copyboard cover and reader unit
3)Remove the right cover
4)Remove the front cover unit
5)Remove the upper cover
6)Remove the duplex feed unit
7)Remove the main controller PCB
■
Procedure
1)Remove the main controller mounting plate[1]
• 1 screw(with washer)[2]
• 1 screw(black TP)[3]
x2
[1]
[2][3]
F-4-808
