Disassembly/Assembly > Fixing System > Removing the Fixing Assembly(MF4870dn/MF4830d) > Procedure
Disassembly/Assembly > Fixing System > Removing the Fixing Assembly(MF4870dn/MF4830d) > Procedure

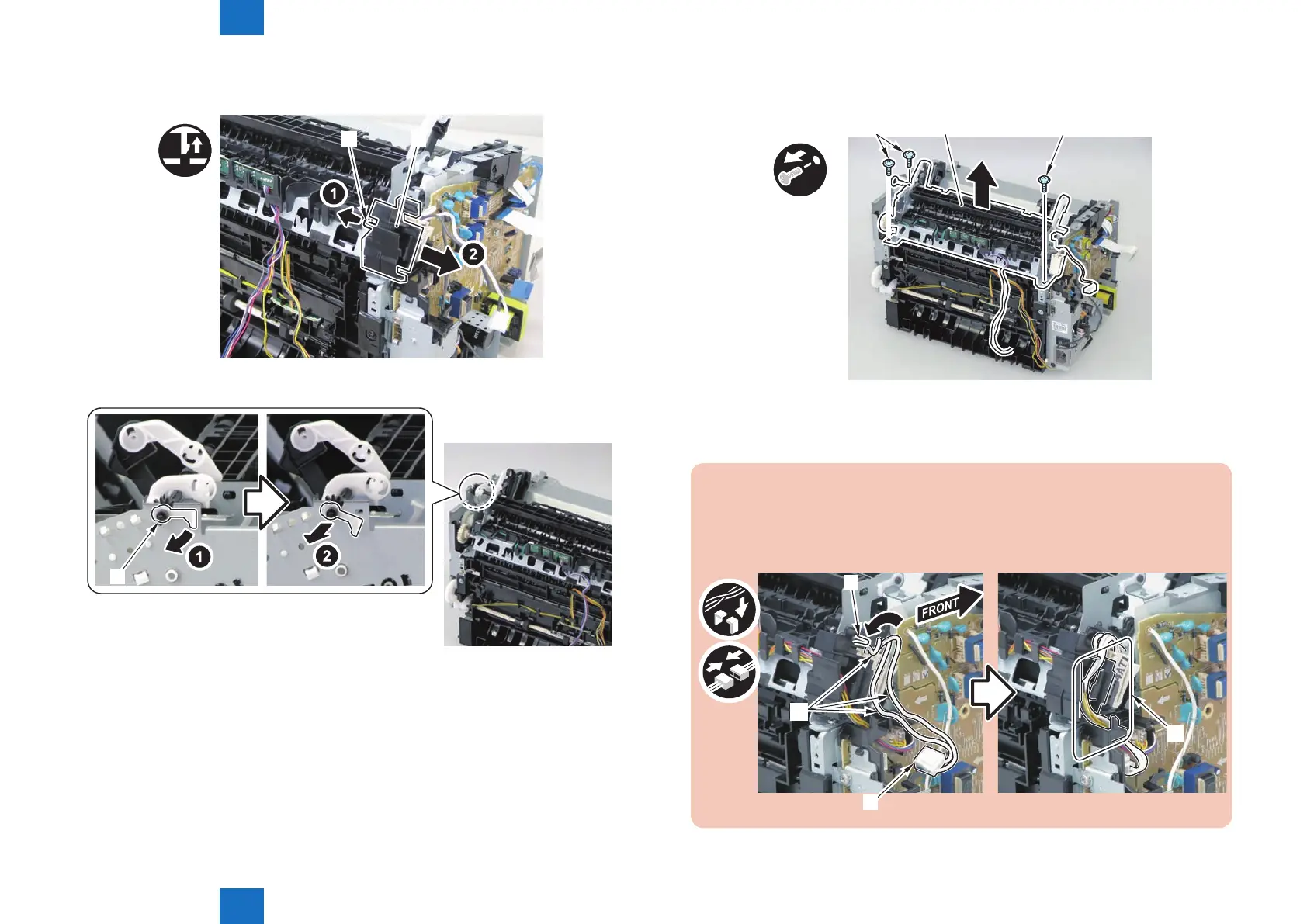

8) Remove the harness holder [1].
• 1 claw [2]
[1][2]
9) Remove the shaft support [1] of the delivery roller.
[1]
F-4-803
F-4-804
10) Remove the xing assembly [1].
• 3 screws [2]
x3
[2]
[2]
[1]
Caution:
When mounting the xing harness, wrap the xing harness [2] around the protruding
part [1] of the harness holder, pass it through the harness guide [A], and then mount
the connector [3].
[A]
[1]
[2]
[3]
F-4-805
