Disassembly/Assembly > Fixing System > Removing the Fixing Assembly(MF4870dn/MF4830d) > Procedure
Disassembly/Assembly > Fixing System > Removing the Fixing Assembly(MF4870dn/MF4830d) > Procedure

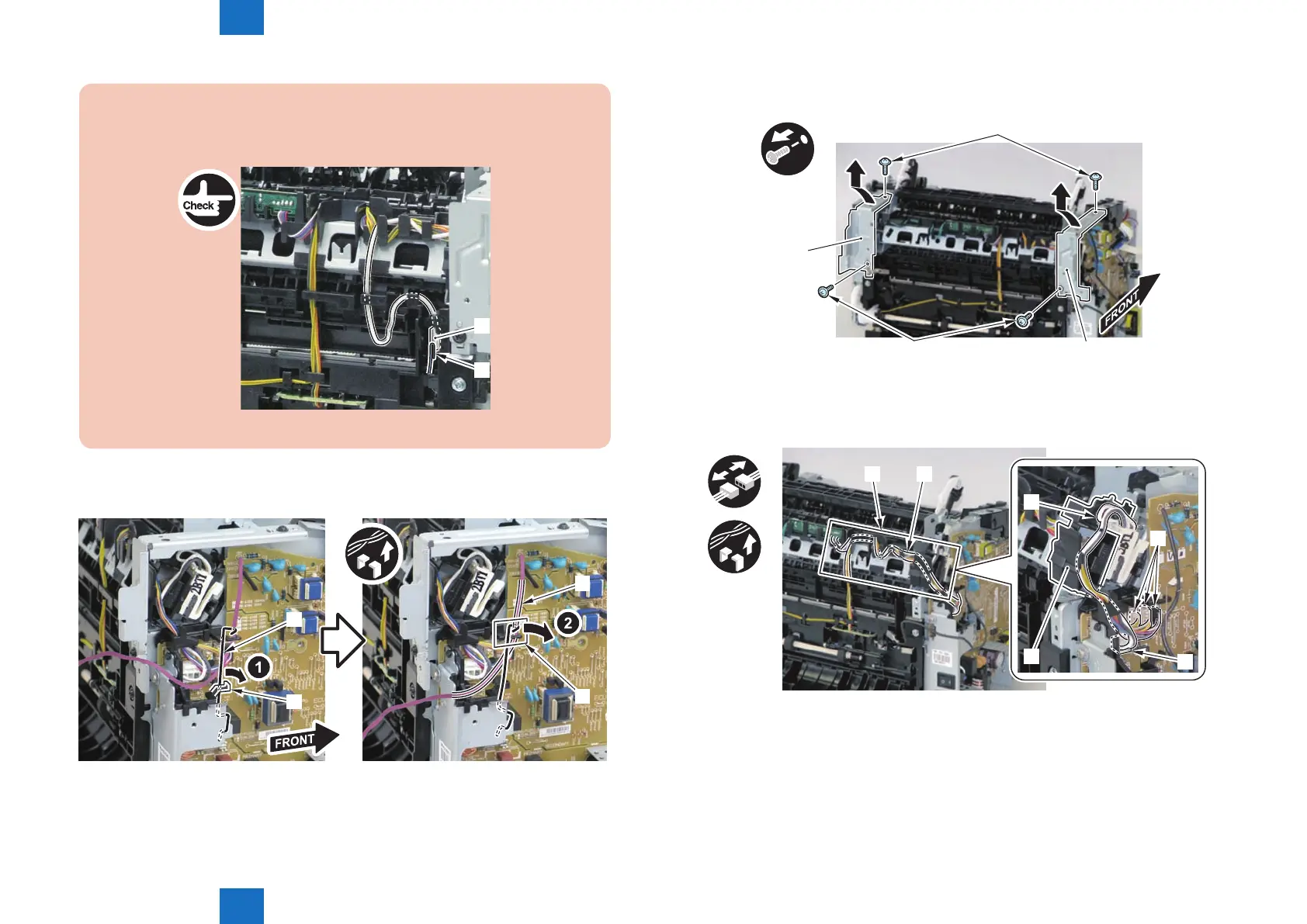

Caution:
When connecting the terminal[1], be sure that the contact spring[2] is in contact with
it.
[2]
[1]
F-4-799
3)Remove the harness retaining spring[1] from the hook[2], and free the harness[3] from the
guide[A].
[1]
[2]
[3]
[A]
F-4-800
4)Remove the 2 left/right reinforcing plates[1]
• 4 screws(black TP)[2]
x4
[2]
[2] [1]
[1]
5) Remove the 4 connectors [1].
6) Disengage the harness [2] from the harness guide [A].
7) Disengage the xing harness [4] from the harness holder [3].
[1]
[1]
[4]
[3]
[A] [2]
x4
F-4-801
F-4-802
