Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF CIS Unit (L418S/L410/L190) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF CIS Unit (L418S/L410/L190) > Procedure

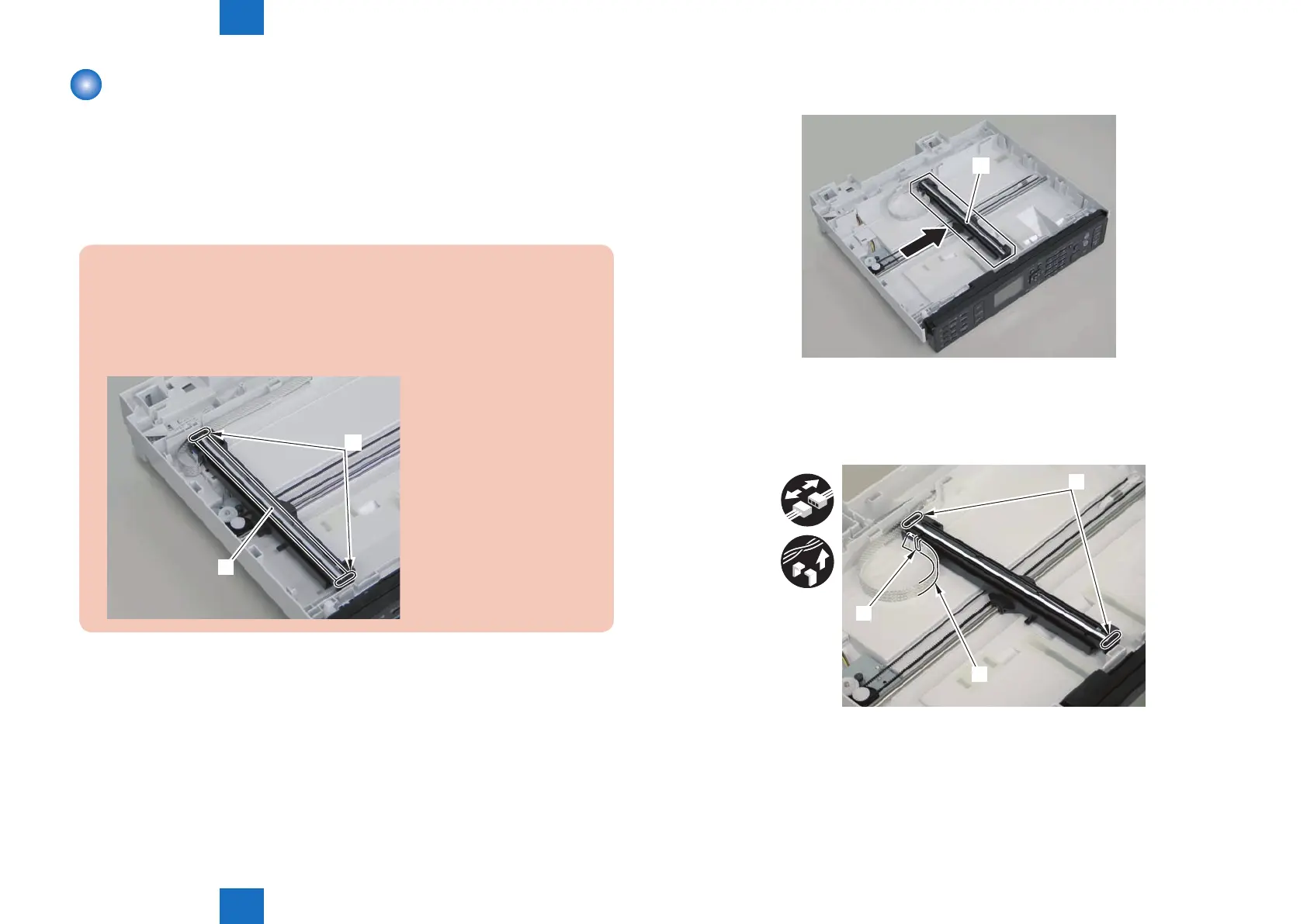

Removing the DADF CIS Unit (L418S/L410/L190)
■
Preparation
1) Remove the left cover.
2)Remove the DADF unit and reader unit
3)Remove the DADF unit.
4)Remove the copyboard glass
■
Procedure
Caution.
When assembling/disassembling the CIS unit, take care not to lose the 2 CIS unit
spacers [1].
When assembling/disassembling the CIS unit, do not touch the copy reading area [A]
of the CIS unit.
[1]
[A]
1)Move the CIS unit[1]
[1]
2)Remove 2 spacers[1] and at cable[2].
• 1 guide[A]
[1]
[2]
[A]
F-4-310
F-4-311
