Disassembly/Assembly > Controller System > Removing the Main Fan (L418S/L410/L190) > Procedure
Disassembly/Assembly > Controller System > Removing the Main Fan (L418S/L410/L190) > Procedure

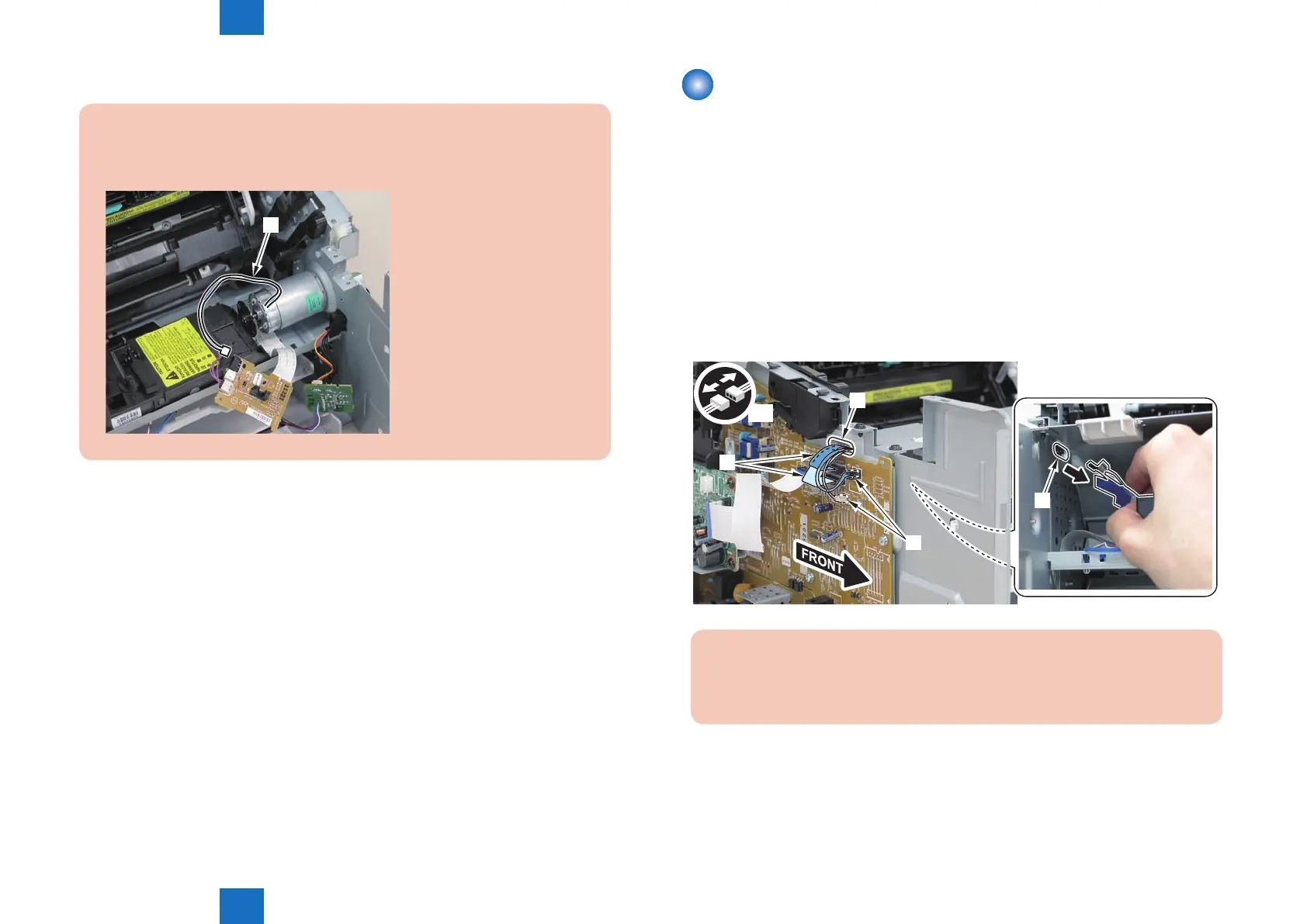

Caution:
When installing the main motor, be sure to install the harness[1] to the upper side of
the motor.
[1]
Removing the Main Fan (L418S/L410/L190)
■
Preparation
1) Remove the left cover
2)Remove the DADF unit and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
■
Procedure
1)Remove the 2 connectors[1] and 2 at cables[2], and put them through the hole[A] of the
left side plate to the inside.
x4
[2]
[A]
[A]
[1]
Caution:
When removing the scanner cover, be sure to disconnect the at cable in advance
to prevent damage to the cable
