Disassembly/Assembly > Controller System > Removing the Main Motor (L418S/L410/L190) > Procedure
Disassembly/Assembly > Controller System > Removing the Main Motor (L418S/L410/L190) > Procedure

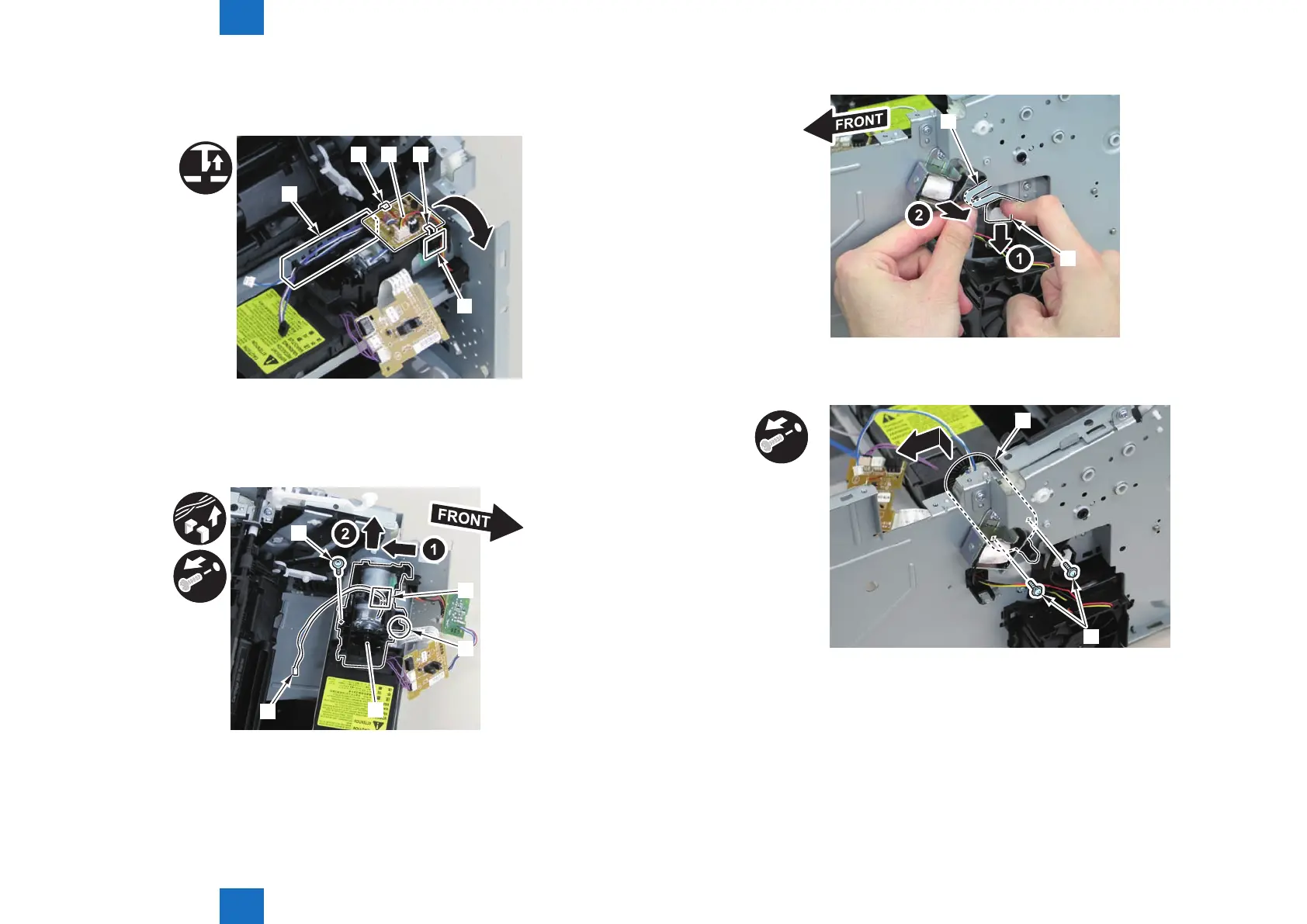

4)Free the harness from the harness guide[A] and [B], and remove the duplex relay PCB[1]
• 1 claw[2]
• 1 hook[3]
[A]
[2]
[1]
[B]
[3]
5)Free the motor harness[1] from the harness guide[C].
6)Remove the motor guide[2]
• 1 screw[3]
• 1 hook[4]
[3]
[1]
[2]
[4]
[C]
F-4-672
F-4-673
7)Lower the tension unit[1], and remove the belt[2].
[1]
[2]
8)Remove the main motor[1]
• 2 screws(with washer)[2]
x2
[2]
[1]
F-4-674
F-4-675
