Canon imageCLASS D530 - List of Connectors; DADF Unit; SADF Unit

4
4
4-11
4-11
Disassembly/Assembly > List of Connectors > SADF Unit
Disassembly/Assembly > List of Connectors > SADF Unit

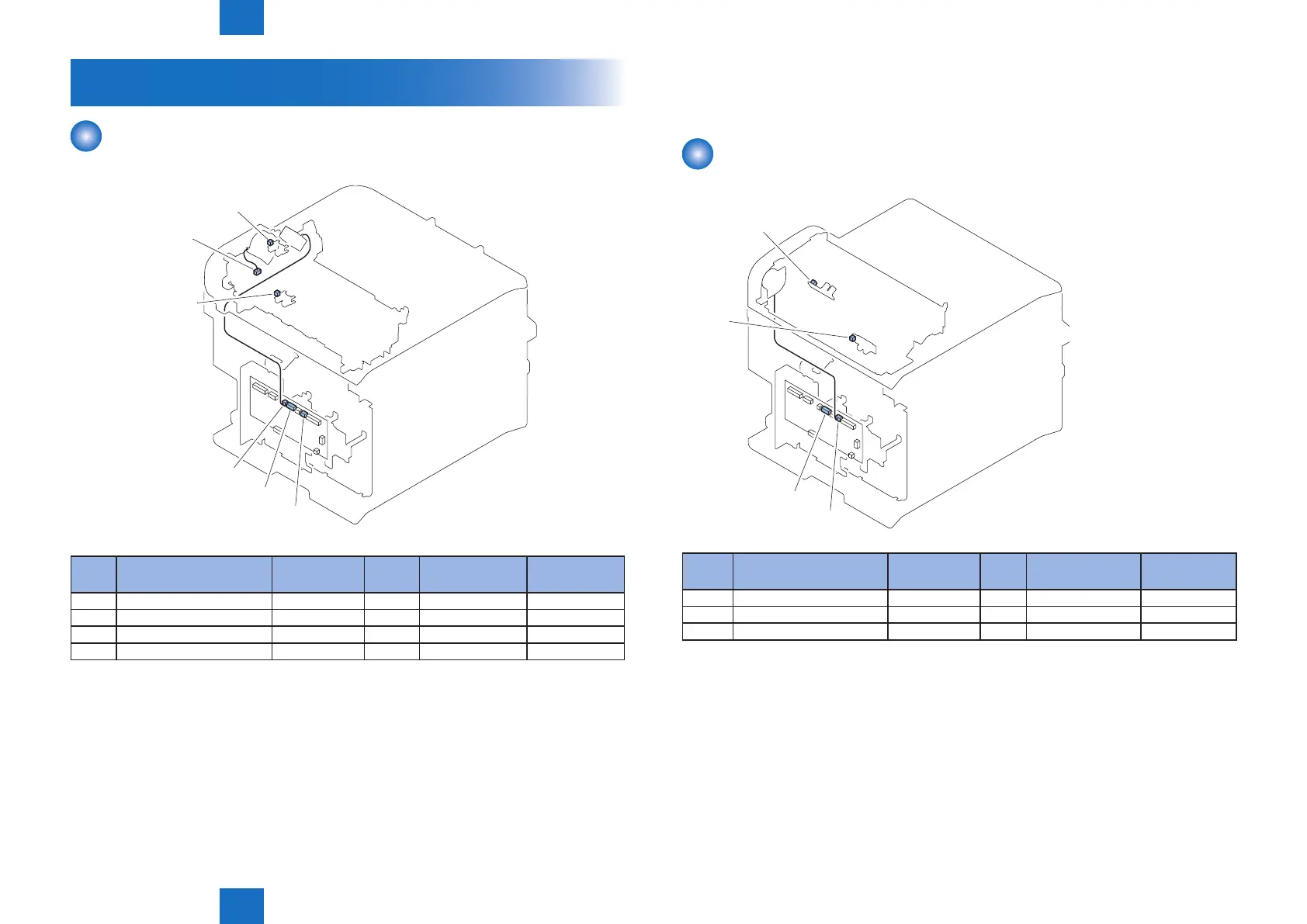

List of Connectors
DADF Unit
J8
J15
J12
J1402
J1401
J1403
J No. Name Relay
Connector
J No. Name Remarks
J15 Main Controller PCB - J1402 DES Sensor -
J15 Main Controller PCB - J1403 DS Sensor -
J12 Main Controller PCB - J1401 DADF Motor -
J8 Main Controller PCB - J8 DADF Solenoid -
F-4-16
T-4-1
SADF Unit
J15
J12
J1402
J1403
J No. Name Relay
Connector
J No. Name Remarks
J15 Main Controller PCB - J1402 DES Sensor -
J15 Main Controller PCB - J1403 DS Sensor -
J12 Main Controller PCB - J12 SADF Motor -
T-4-2
