Disassembly/Assembly > List of Parts > Single-sided Printer Unit > List of Solenoid
Disassembly/Assembly > List of Parts > Single-sided Printer Unit > List of Solenoid
●

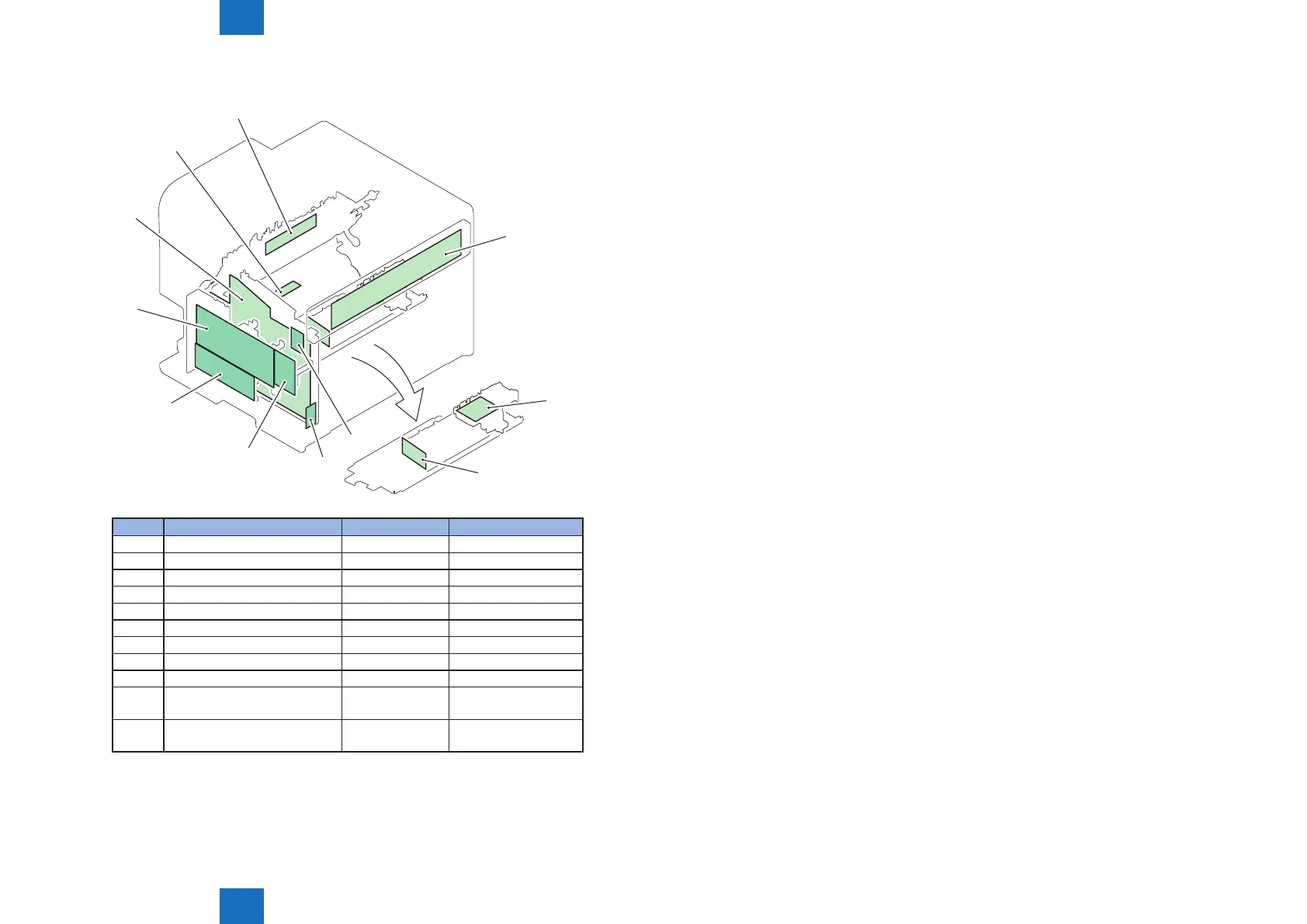

List of PCB
[7]
[9]
[1]
[6]
[2]
[3]
[8]
[4]
[5]
[11]
[10]
No. Name Reference Remarks
[1] Control Panel PCB - -
[2] Motor Driver PCB - -
[3] Laser Driver PCB - -
[4] WiFi Module PCB
[5] Switch PCB
[6] Off Hook PCB 100V Model Only
[7] FAX-NCU PCB
[8] Main Controller PCB
[9] Engine Controller PCB
[10]
Paper Leading Edge
Sensor PCB
[11]
Fixing Delivery/Paper
Width Sensor PCB
F-4-15
