Disassembly/Assembly > Document Exposure/Feeder System > Removing the SADF Pickup Roller 1,2 (MF4870dn/MF4830d) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the SADF Pickup Roller 1,2 (MF4870dn/MF4830d) > Procedure

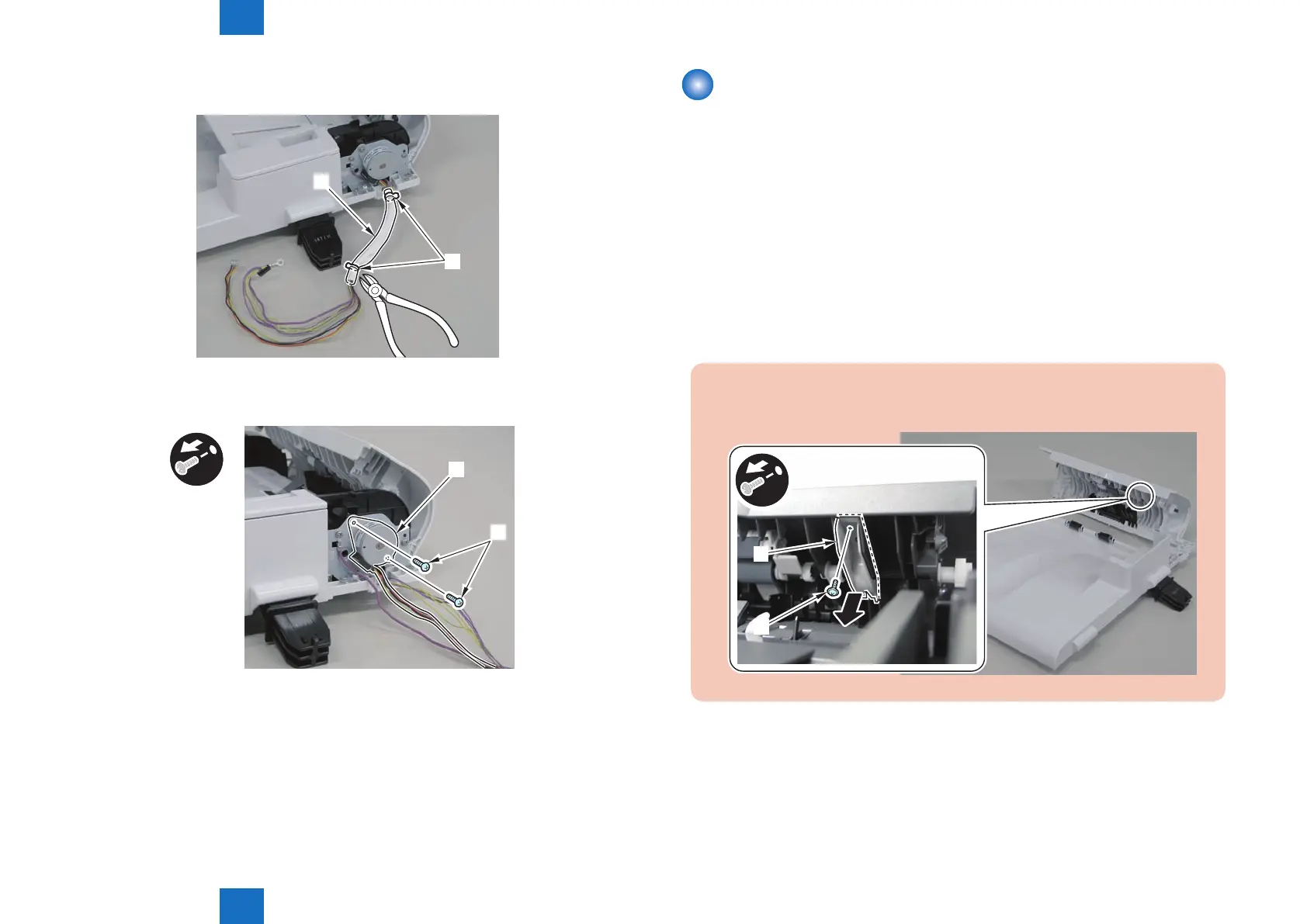

3)Remove the tube[1] protecting the harness.
• 2 harnesses bands[2]
[1]
[2]
4)Remove the SADF motor[1].
• 2 screws[2]
x2
[2]
[1]
F-4-166
F-4-167
Removing the SADF Pickup Roller 1,2 (MF4870dn/
MF4830d)
■
Preparation
1) Remove the left cover.
2)Remove the SADF unit and reader unit
3)Remove the SADF unit.
4)Remove the SADF pickup unit.
■
Procedure
1)Remove the rib[1]
• 1 screw[2]
Caution:
Do not touch the pickup roller surface[1]
[2]
[1]
F-4-168
