Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Motor Unit (MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Motor Unit (MF4890dw/MF4880dw) > Procedure
Removing the DADF Motor Unit (MF4890dw/
MF4880dw)
■
Preparation
1) Remove the left cover.
2)Remove the DADF unit and reader unit
3)Remove the DADF unit.
■
Procedure

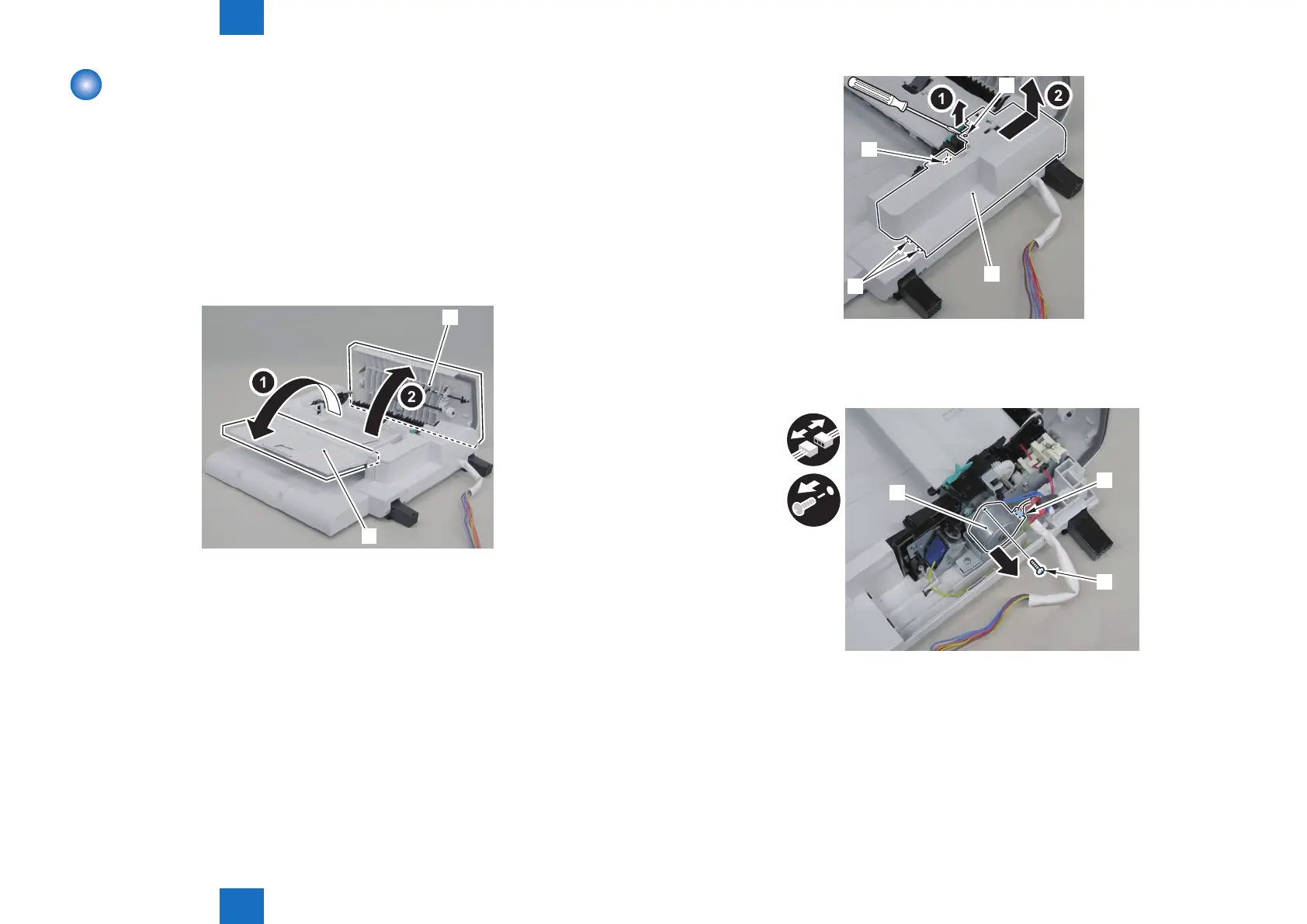

1) Open the DADF pickup tray and DADF upper cover.
[1]
[2]
2) Remove the DADF upper rear cover[1]
• 1 boss[2]
• 3 hooks[3]
F-4-126
[1]
[2]
[3]
[3]
3)Remove the DADF motor[1]
• 1 connector[2]
• 1 screw[3]
[1]
[2]
[3]
F-4-127
F-4-128
