Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Pickup Unit (MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Pickup Unit (MF4890dw/MF4880dw) > Procedure

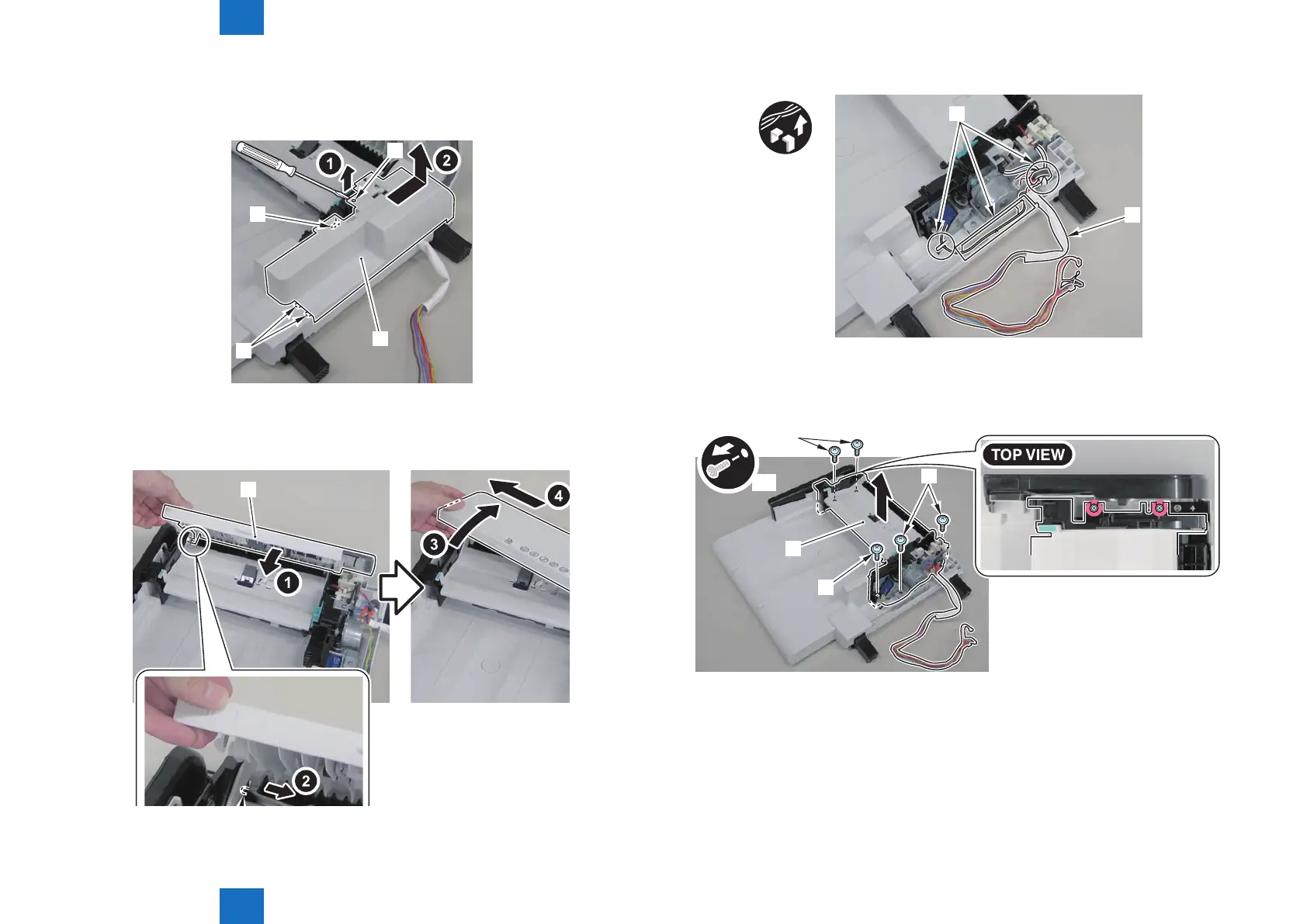

5)Remove the DADF upper rear cover[1].
• 1 boss[2]
• 3 hooks[3]
[1]
[2]
[3]
[3]
6)Remove the DADF upper cover[1].
• 2 shafts[2]
[1]
[1]
[2]
[2]
F-4-122
F-4-123
7)Remove the DADF unit communication cable[1] from the harness guide[A].
x5
[1]
[A]
8)Remove the DADF unit.
5 screws[2]
x5
[1]
[2]
[2]
[2]
F-4-124
F-4-125
