Disassembly/Assembly > Document Exposure/Feeder System > Removing the Flatbed Motor Unit(MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the Flatbed Motor Unit(MF4890dw/MF4880dw) > Procedure
[1]
F-4-142

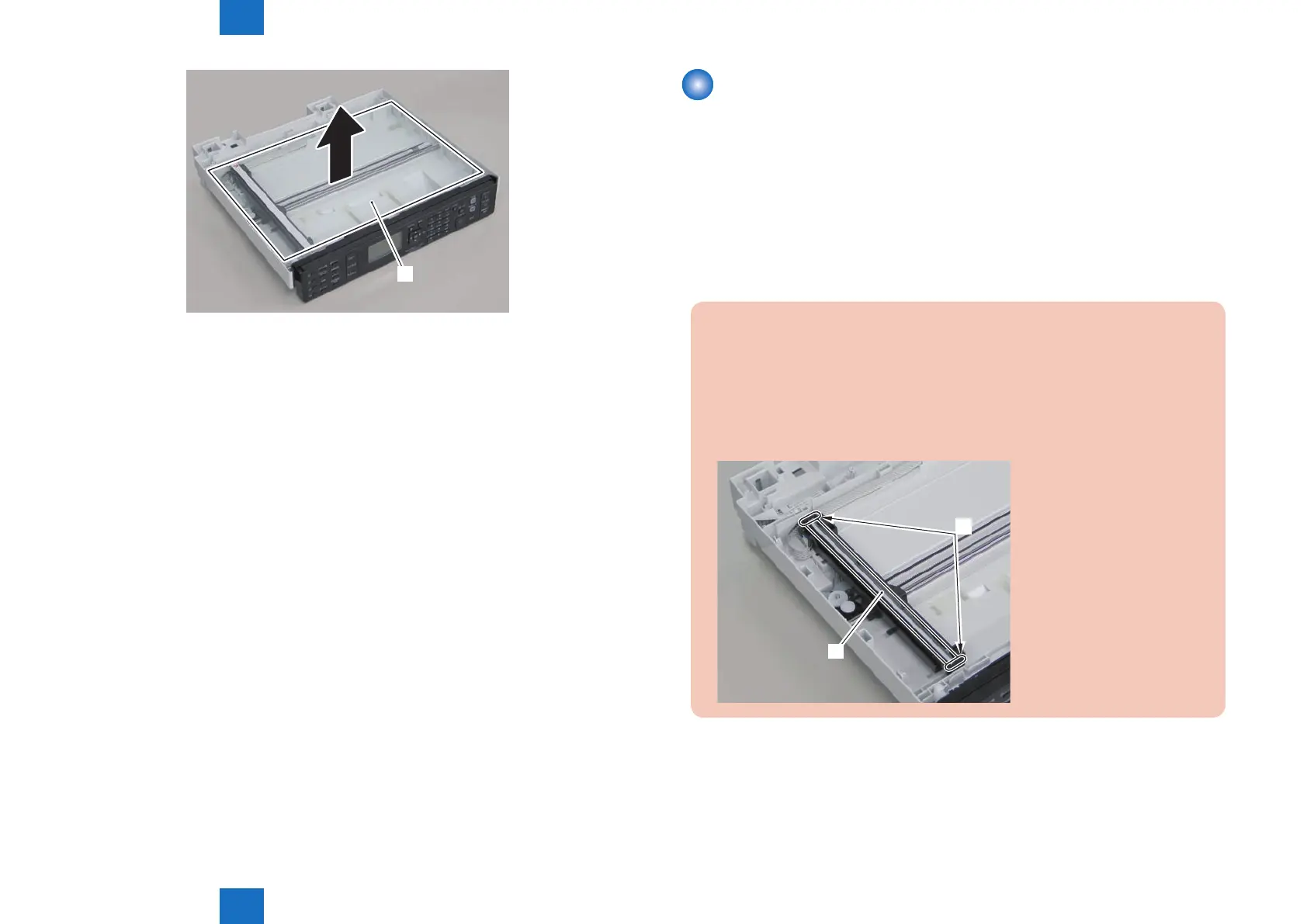

Removing the Flatbed Motor Unit(MF4890dw/
MF4880dw)
■
Preparation
1) Remove the left cover.
2)Remove the DADF unit and reader unit
3)Remove the DADF unit.
4)Remove the copyboard glass
■
Procedure
Caution.
When assembling/disassembling the copyboard glass, take care not to lose the 2
CIS unit spacers [1].
When assembling/disassembling the copyboard glass, do not touch the copy reading
area [A] of the CIS unit.
[1]
[A]
