Disassembly/Assembly > Pickup And Feeding System > Removing the Duplex Solenoid (MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Duplex Solenoid (MF4890dw/MF4880dw) > Procedure

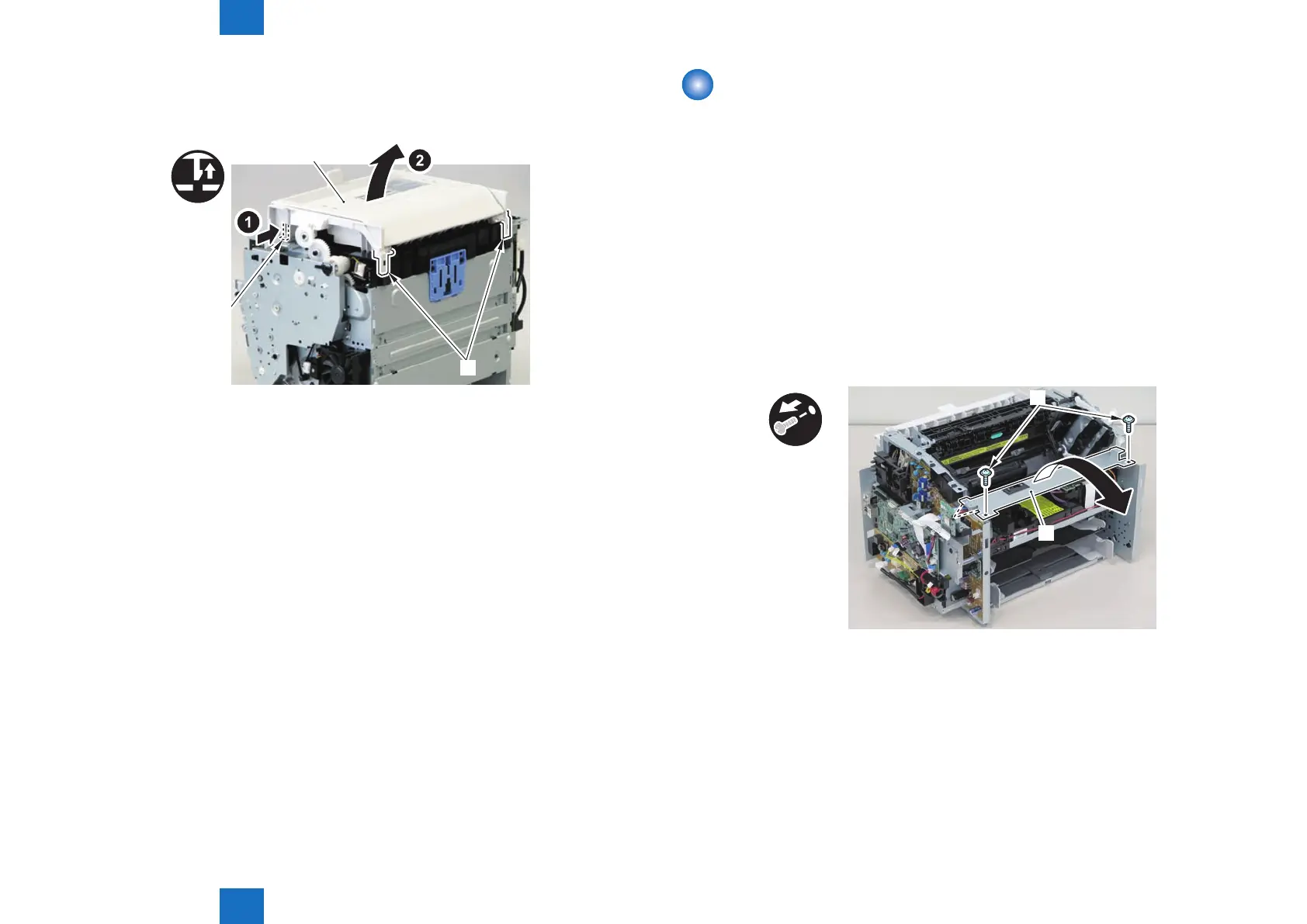

5)Remove the duplex feed unit[1]
• 1 claw[2]
• 2 hooks[3]
[2]
[1]
[3]
F-4-889
Removing the Duplex Solenoid (MF4890dw/
MF4880dw)
■
Preparation
1) Remove the left cover
2)Remove the DADF unit and reader unit.
3)Remove the right cover
4)Remove the front cover unit.
5)Remove the upper cover.
■
Procedure
1)Remove the scanner cover[1]
• 2 screws(black TP)[2]
x2
[1]
[2]
F-4-890
