Disassembly/Assembly > Controller System > Removing the Main Controller PCB (L418S/L410/L190) > Procedure
Disassembly/Assembly > Controller System > Removing the Main Controller PCB (L418S/L410/L190) > Procedure
Caution:
When reassembling, attach the engine controller PCB to the hook [1] and then
mount the switchboard [3] to the lower side of the switch arm [2].
[3]
[1]
[2]
[3]
[2][2]
[3]
Ensure that the switch arm [1] can move vertically.
[1]
F-4-689

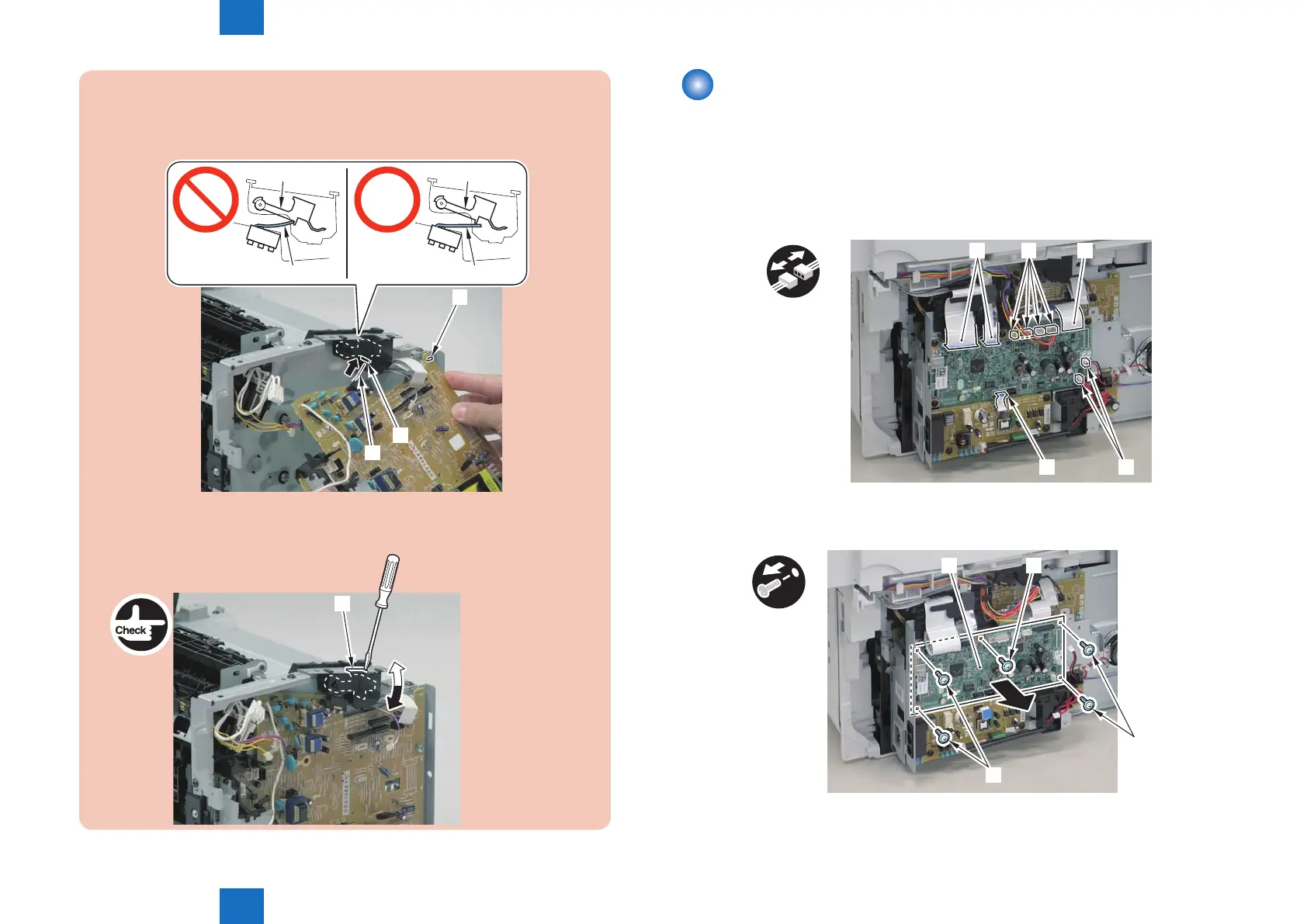

Removing the Main Controller PCB (L418S/L410/L190)
■
Preparation
1) Remove the left cover
■
Procedure
1)Remove the 4 at cables[1] and 6 connectors[2].
x10
[1][2][1]
[1] [2]
2)Remove the main controller PCB[1].
• 5 screws(black TP)[3]
x5
[1]
[2]
[2]
[2]
F-4-690
F-4-691
