Disassembly/Assembly > Document Exposure/Feeder System > Removing the Flatbed Motor Unit(MF4780w/MF4770n/MF4750/MF4730) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the Flatbed Motor Unit(MF4780w/MF4770n/MF4750/MF4730) > Procedure

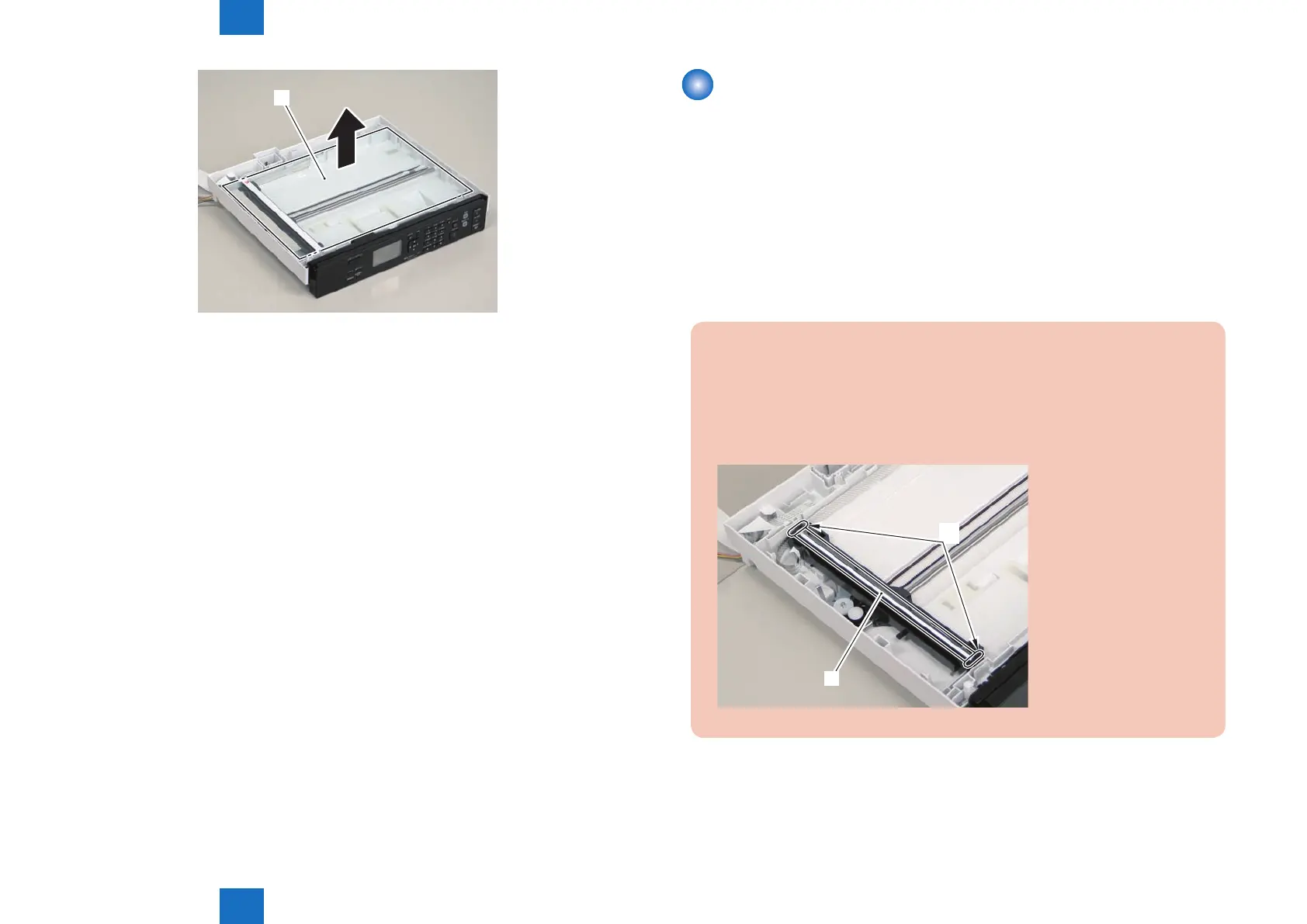

[1]
F-4-250
Removing the Flatbed Motor Unit(MF4780w/MF4770n/
MF4750/MF4730)
■
Preparation
1) Remove the left cover.
2)Remove the SADF unit and reader unit
3)Remove the SADF unit.
4)Remove the copyboard glass
■
Procedure
Caution.
When assembling/disassembling the copyboard glass, take care not to lose the 2
CIS unit spacers [1].
When assembling/disassembling the copyboard glass, do not touch the copy reading
area [A] of the CIS unit.
[1]
[A]
