Disassembly/Assembly > Controller System > Removing the Toner Sensor and Multi Pickup Sensor Unit (MF4820d) > Procedure
Disassembly/Assembly > Controller System > Removing the Toner Sensor and Multi Pickup Sensor Unit (MF4820d) > Procedure

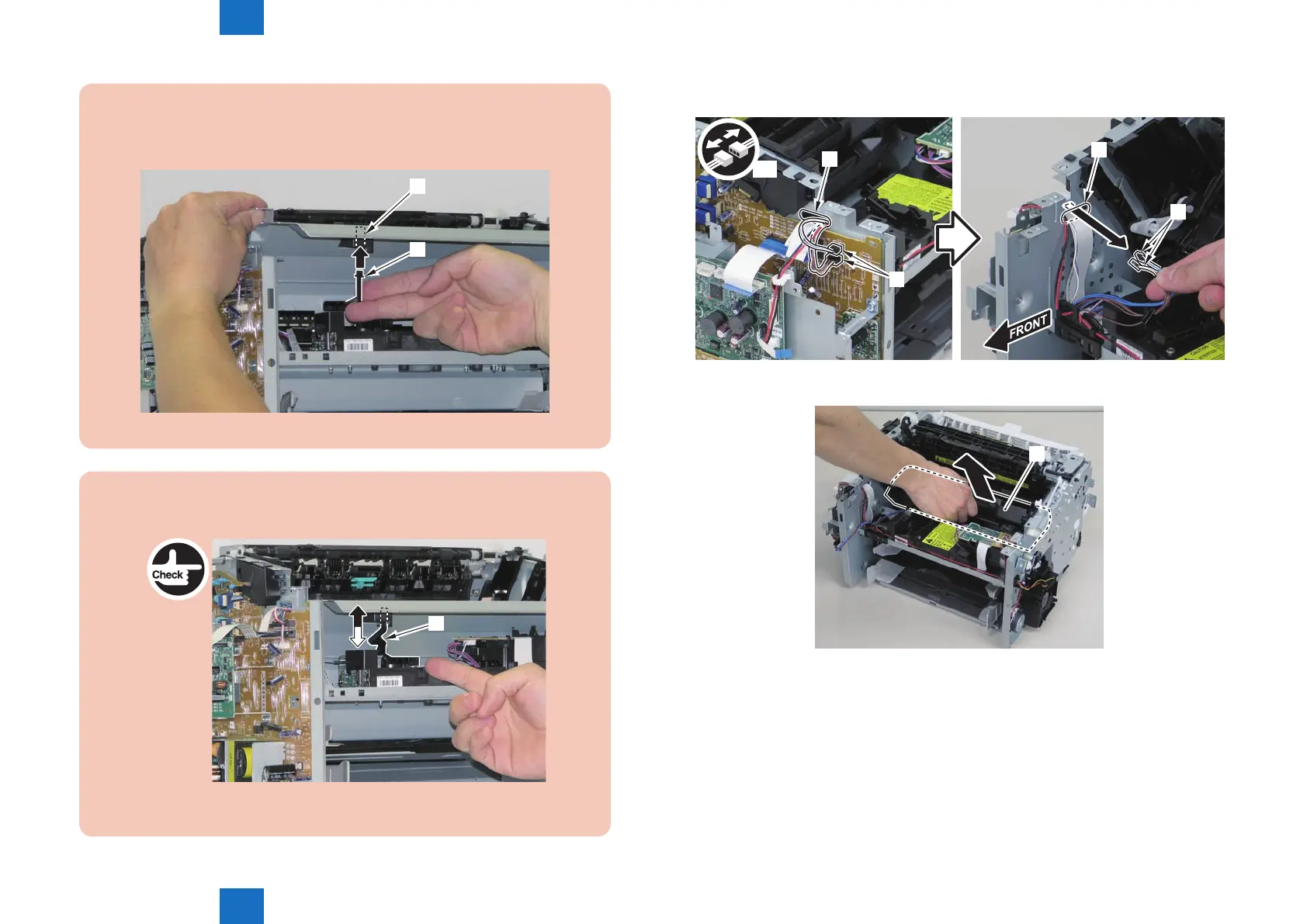

Caution:
When mounting the scanner cover, pass the shutter open/close lever [1] through the
hole [A] in the scanner cover.
[1]
[A]
F-4-484
Caution:
Ensure that the shutter open/close lever [1] can move vertically.
[1]
F-4-485
2)Disconnect the 2 connectors[1], and put it through the hole[A] of the left side plate to the
inside.
[A]
[A]
[1]
[1]
x2
3)Remove the drum unit[1].
[1]
F-4-486
F-4-487
