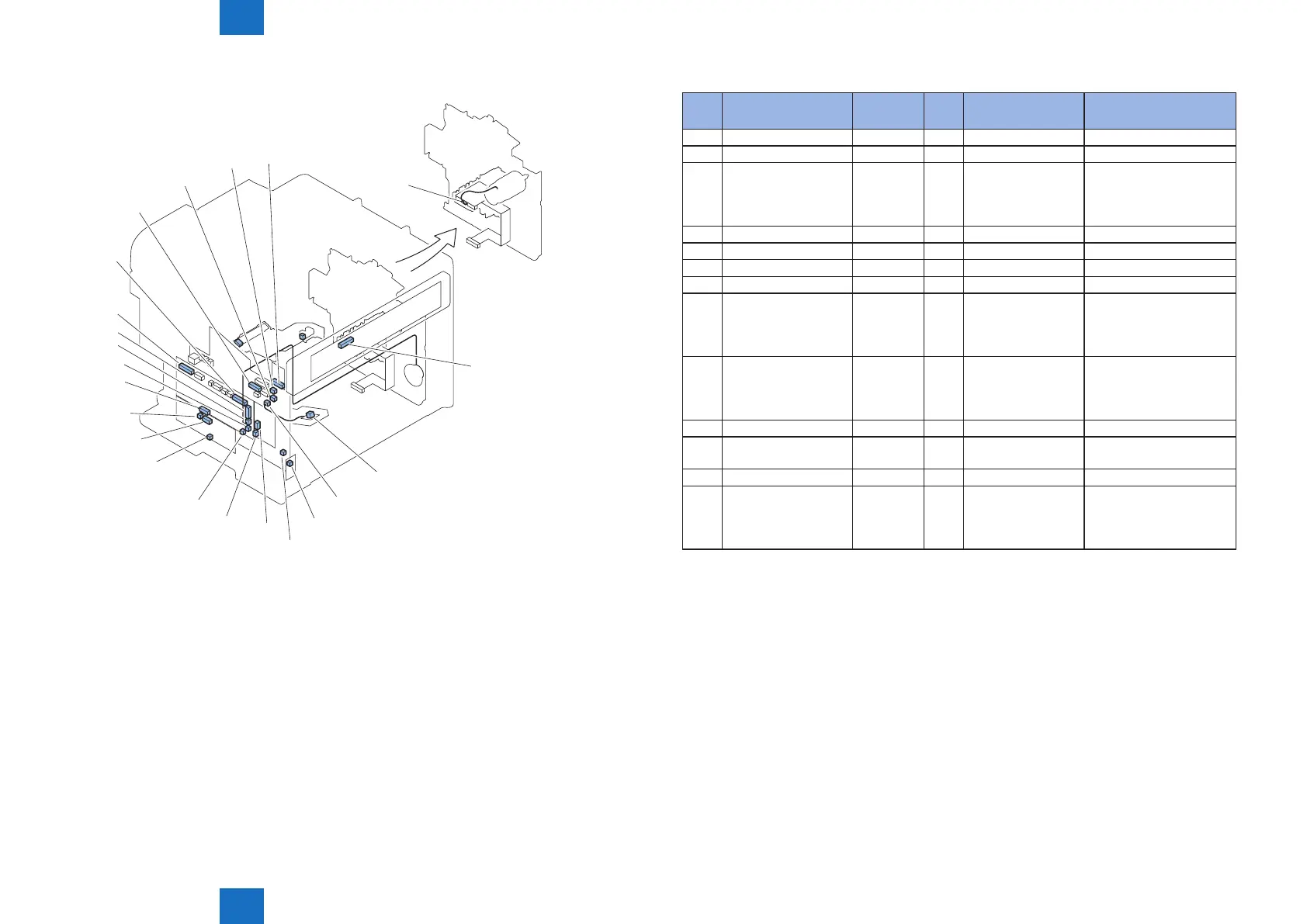

Disassembly/Assembly > List of Connectors > Duplex Printer Unit
Disassembly/Assembly > List of Connectors > Duplex Printer Unit
J401
J905
J901
J902
J7
J2
J6
J6
J1
J601
J602
J581
J605
J1309
J1305
J912
J1104
J1152
J1204
J1202
J1201
J3
J No. Name Relay
Connector
J No. Name Remarks
J1152 Motor Driver PCB - J1152 Main Motor -
J581 Engine Controller PCB - - Memory Tag -
J901 Engine Controller PCB - - Toner Sensor Model with FAX
(MF4890dw/MF4880dw/
MF4870dn/L418S/L410/
L190)
J902 Engine Controller PCB - J6 Main Controller PCB -
J905 Engine Controller PCB - - Multi Pickup Sensor -
J3 Memory Tag - - Cartridge -
J605 Main Controller PCB - J1305 Pseudo CI PCB Model with FAX (100V)
J602 Main Controller PCB - J1204 FAX-NCU PCB Model with FAX
(MF4890dw/MF4880dw/
MF4870dn/L418S/L410/
L190)
J601 Main Controller PCB - J1201 FAX-NCU PCB Model with FAX
(MF4890dw/MF4880dw/
MF4870dn/L418S/L410/
L190)
J7 Main Controller PCB - J401 Control Panel PCB -
J6 Main Controller PCB - J1 Wireless LAN PCB Model with Wireless LAN
(MF4890dw)
J1202 FAX-NCU PCB - J1309 Pseudo CI PCB Model with FAX (100V)
J1202 FAX-NCU PCB - J1202 Speaker Model with FAX
(MF4890dw/MF4880dw/
MF4870dn/L418S/L410/
L190)
T-4-5
