Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Solenoid (MF4870dn/MF4830d) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Solenoid (MF4870dn/MF4830d) > Procedure

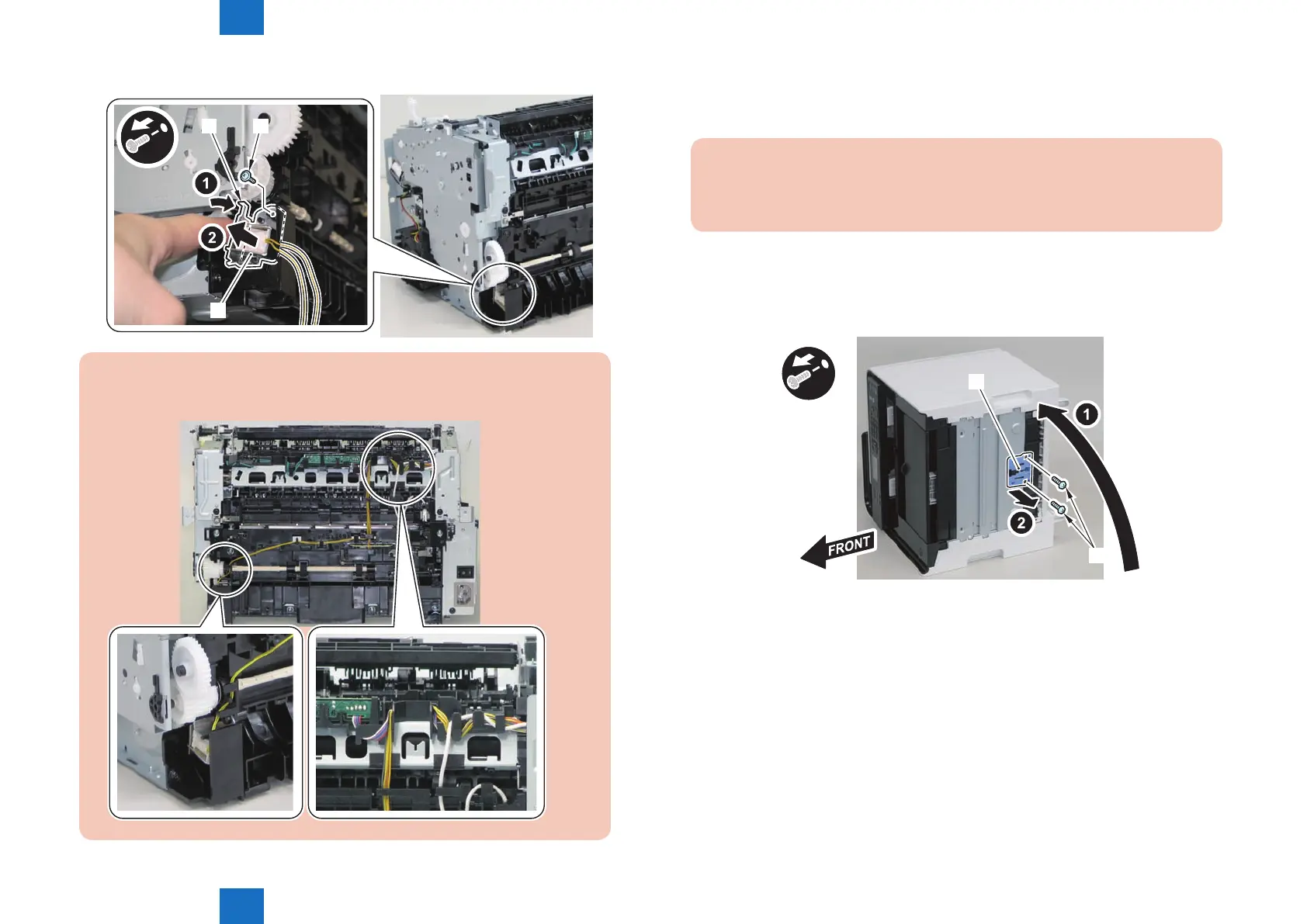

6)Remove the screw[1], move the solenoid arm[2] and remove the pickup solenoid[3].
[1][2]
[3]
Caution:
The below picture shows how to wind the harness.
F-4-917
Removing the Separation Pad (MF4870dn/MF4830d)
■
Procedure
Caution:
When assembling/disassembling the separation pad, do not touch the surface of
the
1) Face the left side of the host machine downwards.
2) Remove the separation pad [1].
• 2 screws [2]
[1]
x5x2
[2]
F-4-918
