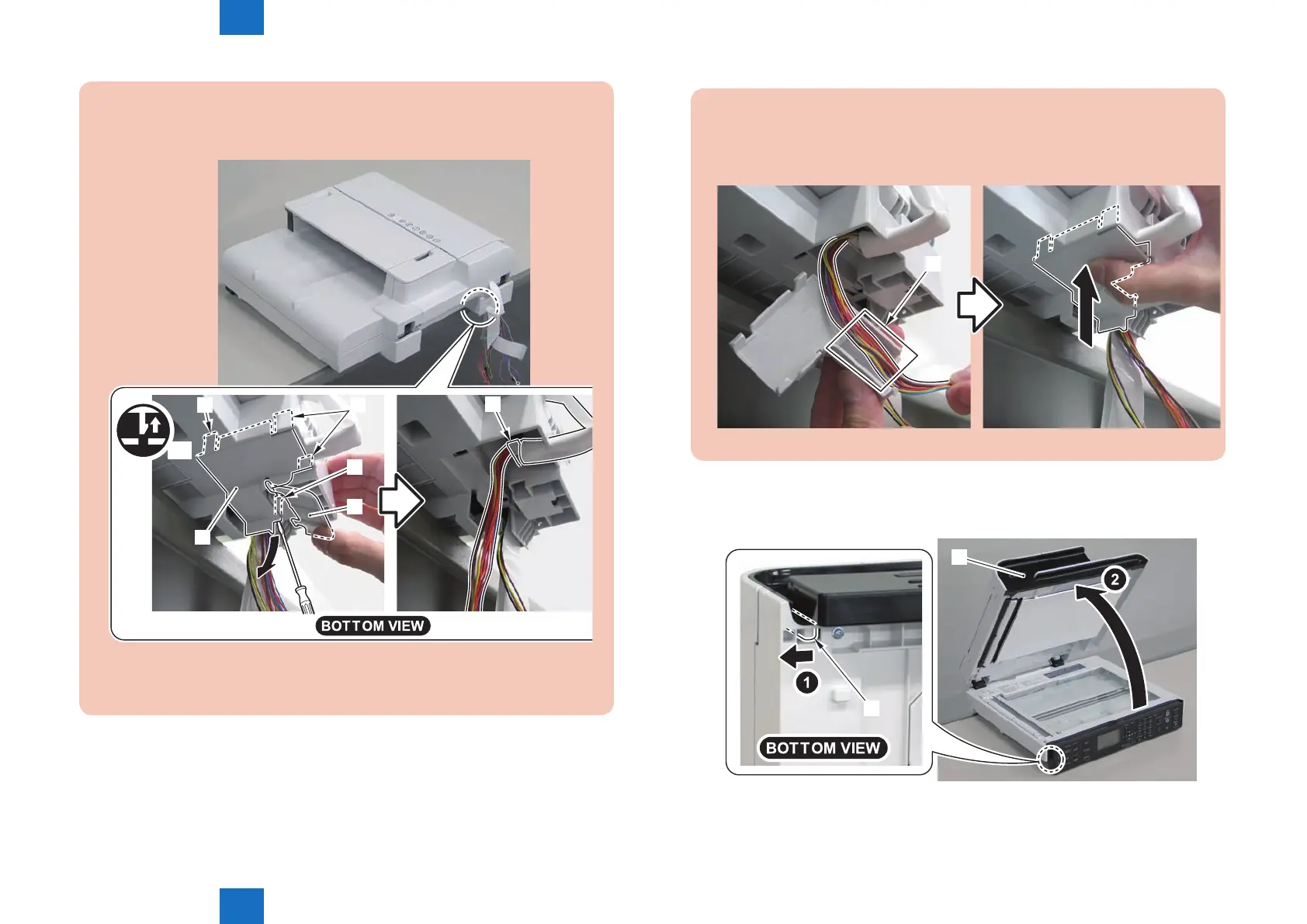

Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Unit (MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Unit (MF4890dw/MF4880dw) > Procedure
Caution:
Be sure to hold the connector cover when removing it.
[1]
[2]
[3] [3]
[3]
[A]
x4
Caution:
Before installing the connector cover, be sure to store the harness, grounding wire,
and at cable in the [A] part.
[A]
2)Release the lock[1] on the lower left front side of the reader unit, and open the DADF unit.
[1]
[2]
F-4-115
