Disassembly/Assembly > Document Exposure/Feeder System > Removing the SADF Unit (MF4870dn/MF4830d) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the SADF Unit (MF4870dn/MF4830d) > Procedure

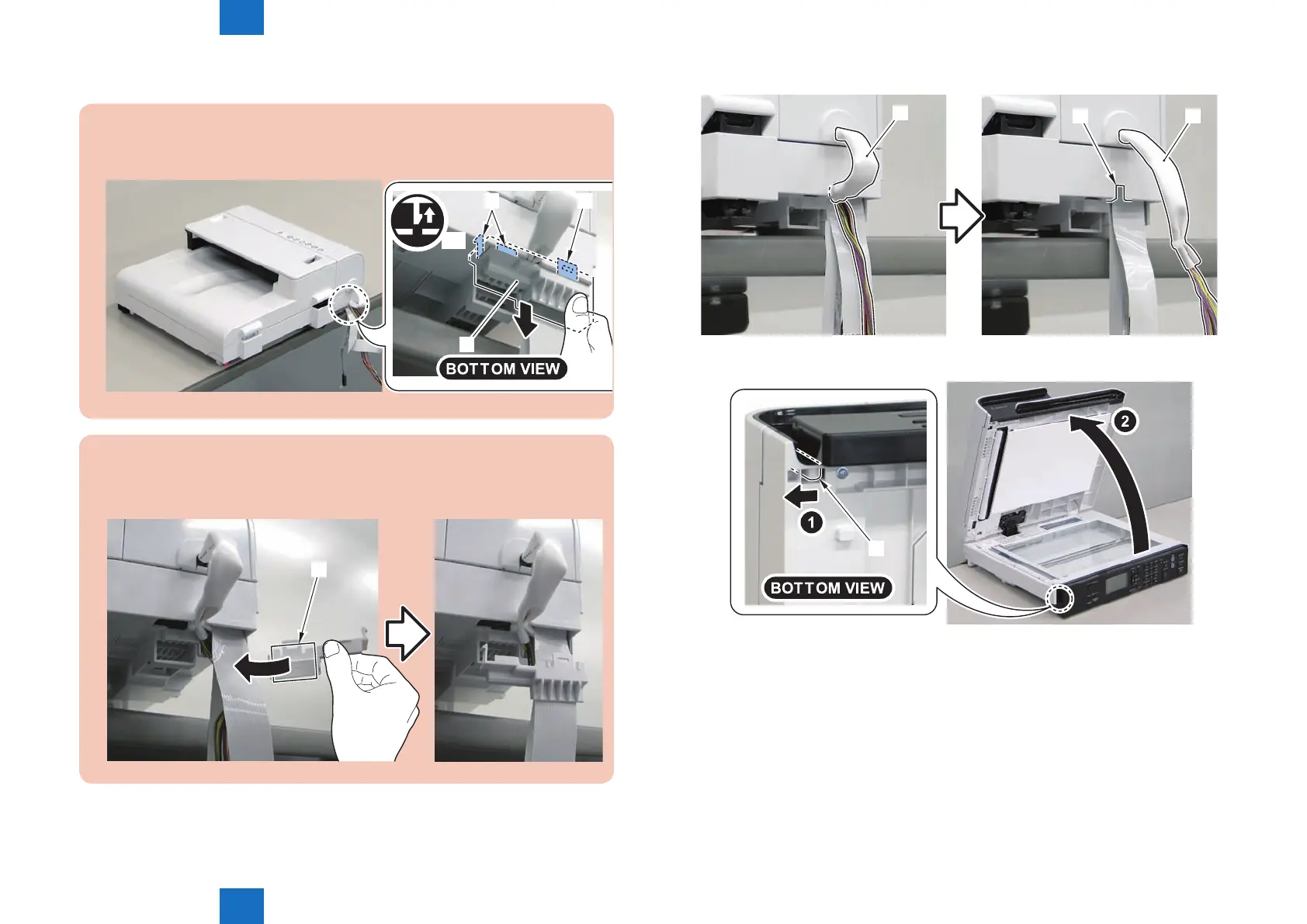

Caution:
Be sure to hold the connector cover when removing it.
x2
[2][3]
[1]
Caution:
Before installing the connector cover, be sure to store the harness, grounding wire,
and at cable in the [A] part.
[A]
2)Free the reader harness[1] from the cut-off[A]
[A]
[1]
[1]
3)Release the lock[1] on the lower left front side of the reader unit, and open the SADF unit[2]
[1]
F-4-154
F-4-155
