Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Cover and Reader Unit (MF4720w/MF4712/MF4710) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Cover and Reader Unit (MF4720w/MF4712/MF4710) > Procedure

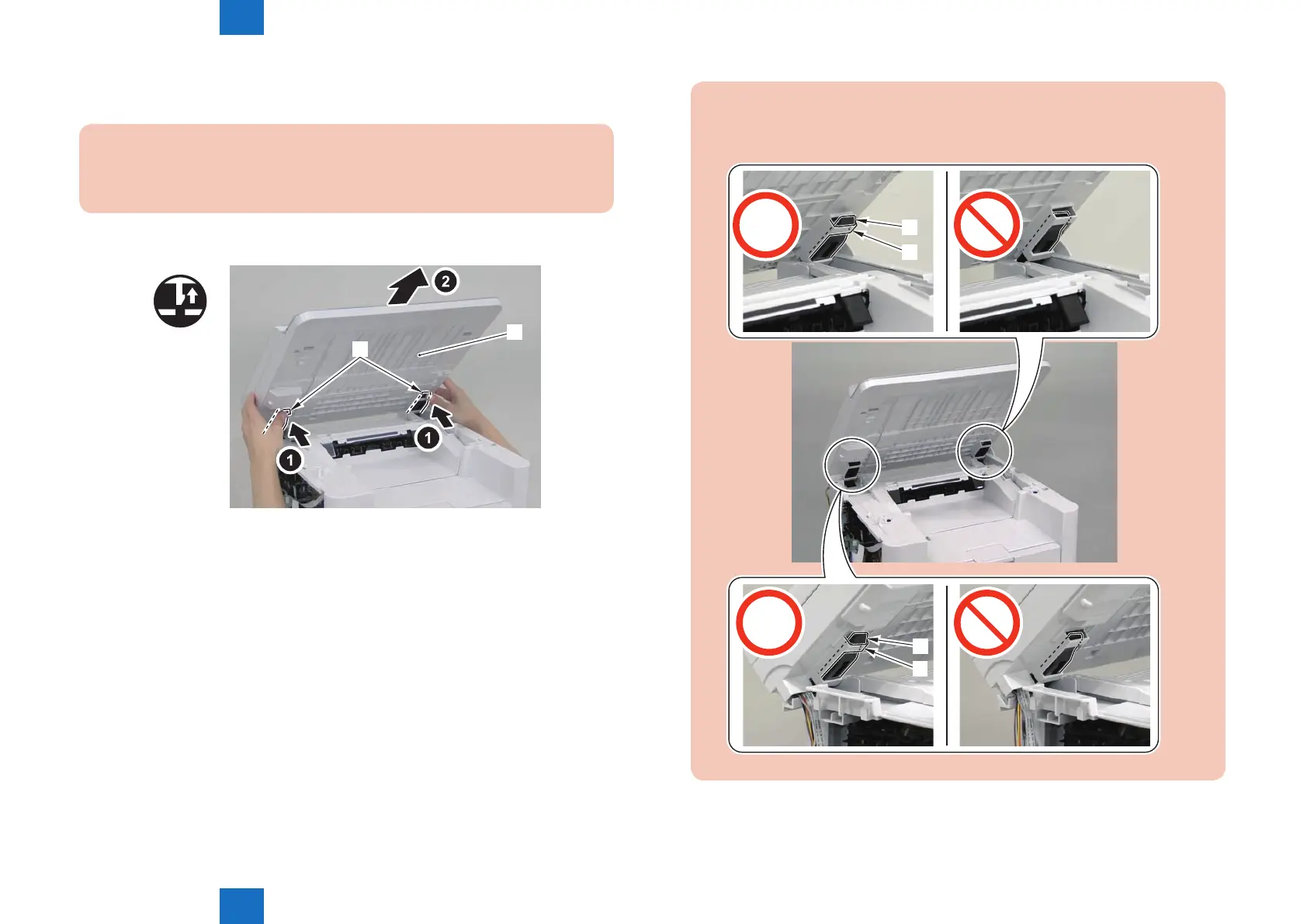

4)Remove the copyboard cover and reader unit.
• 2 claws[2]
Caution:
When placing the removed copyboard cover and reader unit on the desk, oor,
etc.,be careful not to get the at cable and harnesses trapped under them.
x2
[1]
[2]
F-4-262
Caution:
When mounting the reader unit and copyboard cover, x the 2 hinge arm claws [1]
to the 2 latches [2] of the reader unit.
[2]
[1]
[2]
[1]
