Canon imageCLASS D530 - Page 189

4
4
4-113
4-113
Disassembly/Assembly > Document Exposure/Feeder System > Removing the Flatbed Motor Unit(MF4720w/MF4712/MF4710) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the Flatbed Motor Unit(MF4720w/MF4712/MF4710) > Procedure
[2]
[3]
[1]

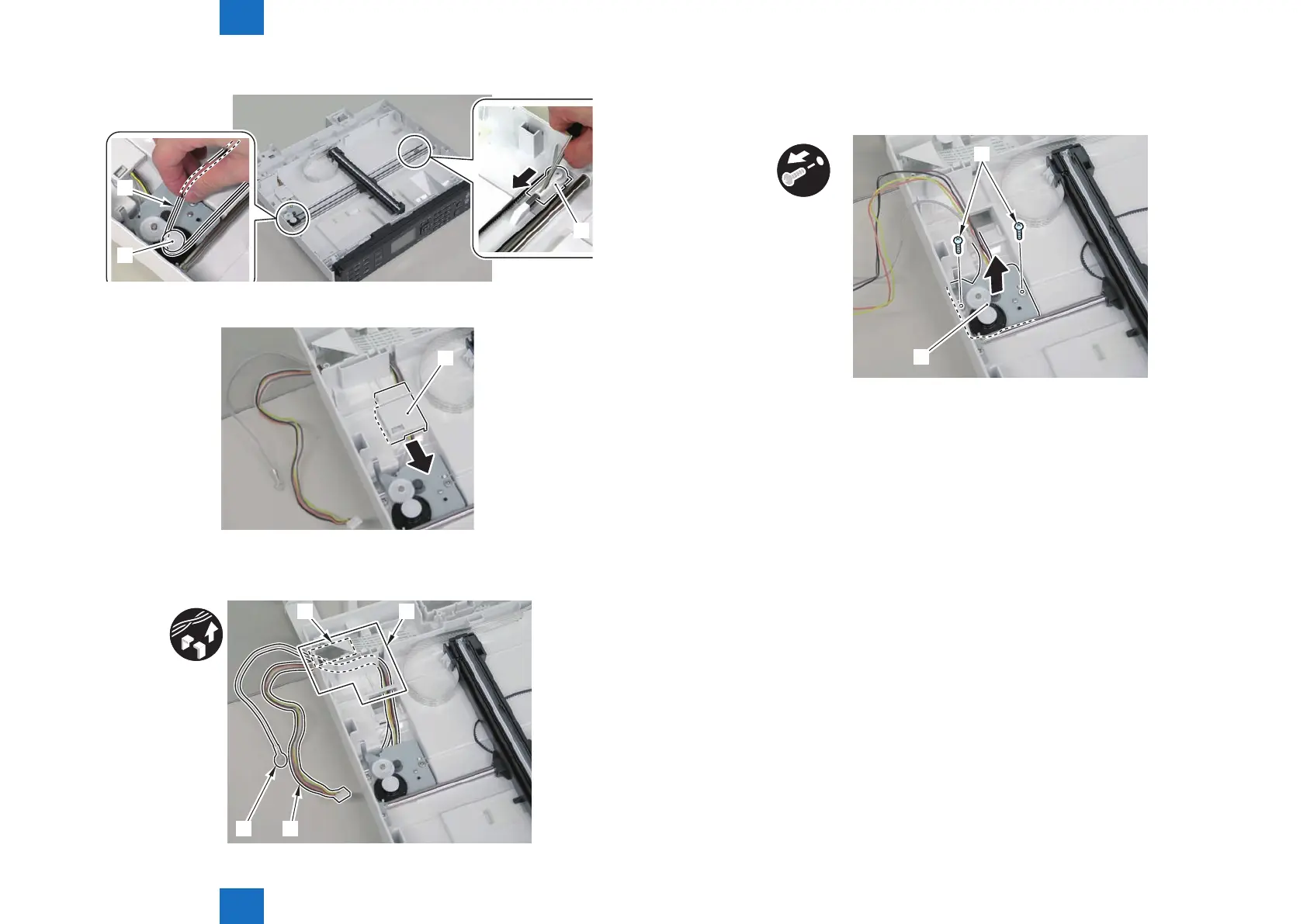

3)Remove the guide cover[1]
[1]
4)Free the harness[1] and the grounding wire[2] from the hole[A] of the reader unit and the
harness guide[B]
[1][2]
[A] [B]
F-4-267
F-4-268
F-4-269
5)Remove the atbed motor unit[1]
• 2 screws[2]
x2
[1]
[2]
F-4-270
