Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Pickup Roller Unit (L418S/L410/L190) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the DADF Pickup Roller Unit (L418S/L410/L190) > Procedure

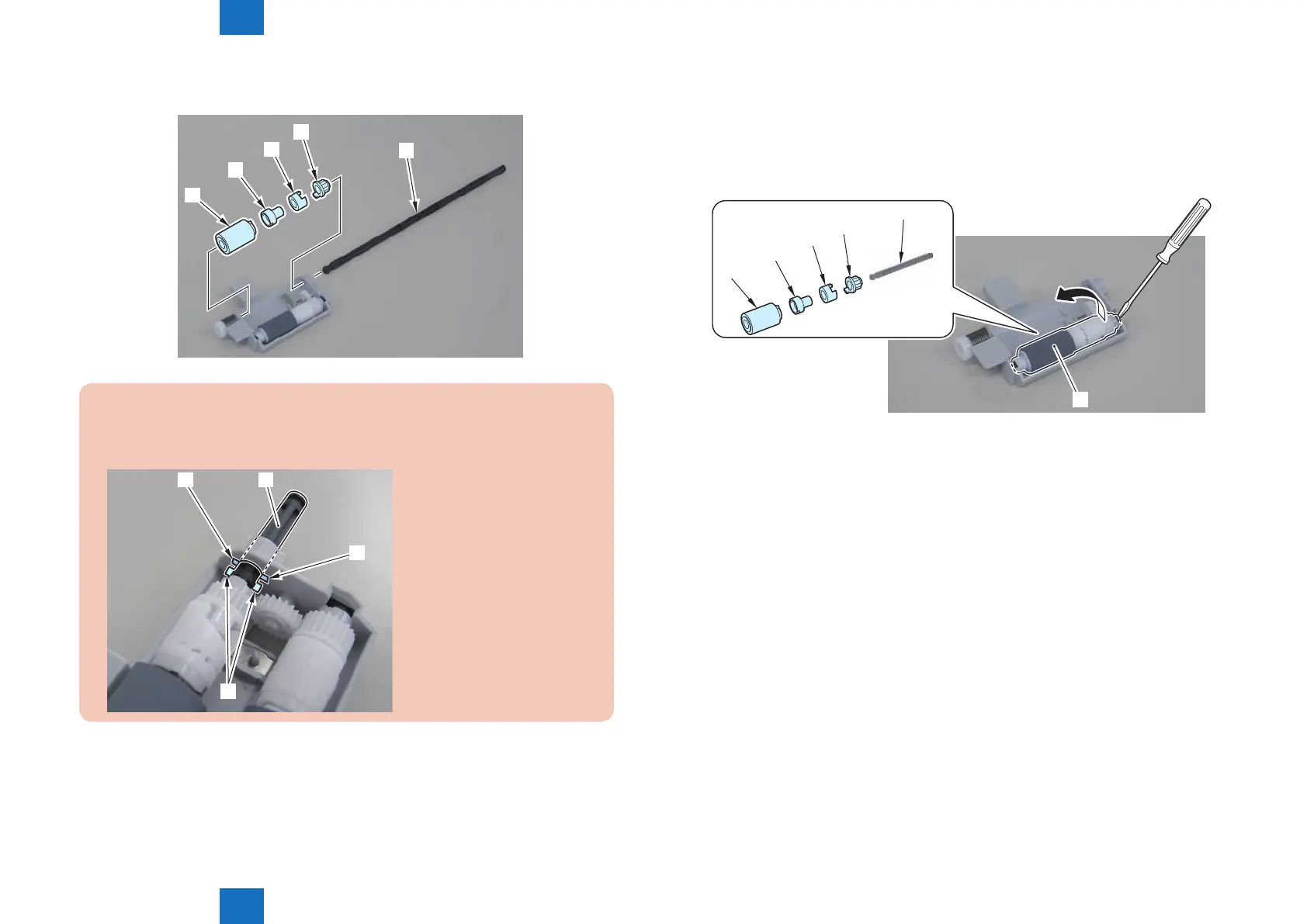

5)Pull out pickup roller shaft[1], and remove the pickup roller[2], bushing[A], bushing[B], and
gear[3].
[2]
[A]
[B]
[3]
[1]
Note
When pulling out the pickup roller shaft[1], be sure to align the boss[2] of the roller
shaft with the hole on the [A] part.
[2]
[1]
[A]
[A]
F-4-296
6)Remove the pickup roller unit[1]
• pickup roller shaft[2]
• pickup roller 2[3]
• 1 bushing[A]
• 1 bushing[B]
• 1 gear[4]
[1]
[3]
[A]
[B]
[4]
[2]
F-4-297
