Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Glass (L418S/L410/L190) > Procedure
Disassembly/Assembly > Document Exposure/Feeder System > Removing the Copyboard Glass (L418S/L410/L190) > Procedure

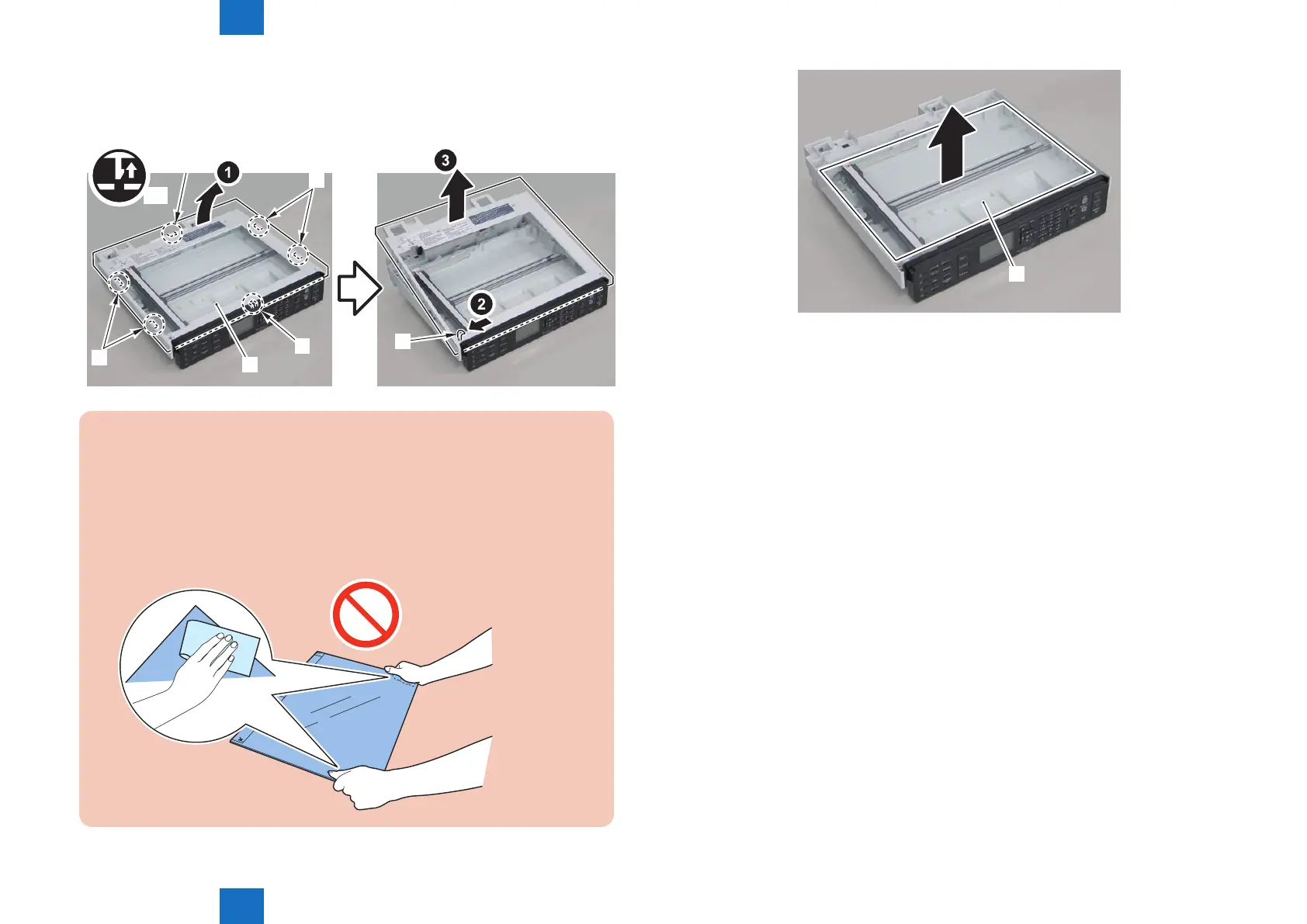

3)Remove the reader upper cover[1]
• 6 claws[2]
• 1 hook[3]
x6
[1]
[2]
[2]
[2]
[2]
[3]
Caution.
Place the detached copyboard glass cover on a cloth etc. to avoid damaging the
bottom sheet.
When removing the copyboard glass, take care not to touch the glass surface.
If the surface becomes dirty, clean it with lens-cleaning paper.
F-4-303
[1]
F-4-304
To Next Page
