Disassembly/Assembly > Controller System > Removing the Fixing Delivery/Paper Width Sensor PCB(MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Controller System > Removing the Fixing Delivery/Paper Width Sensor PCB(MF4890dw/MF4880dw) > Procedure

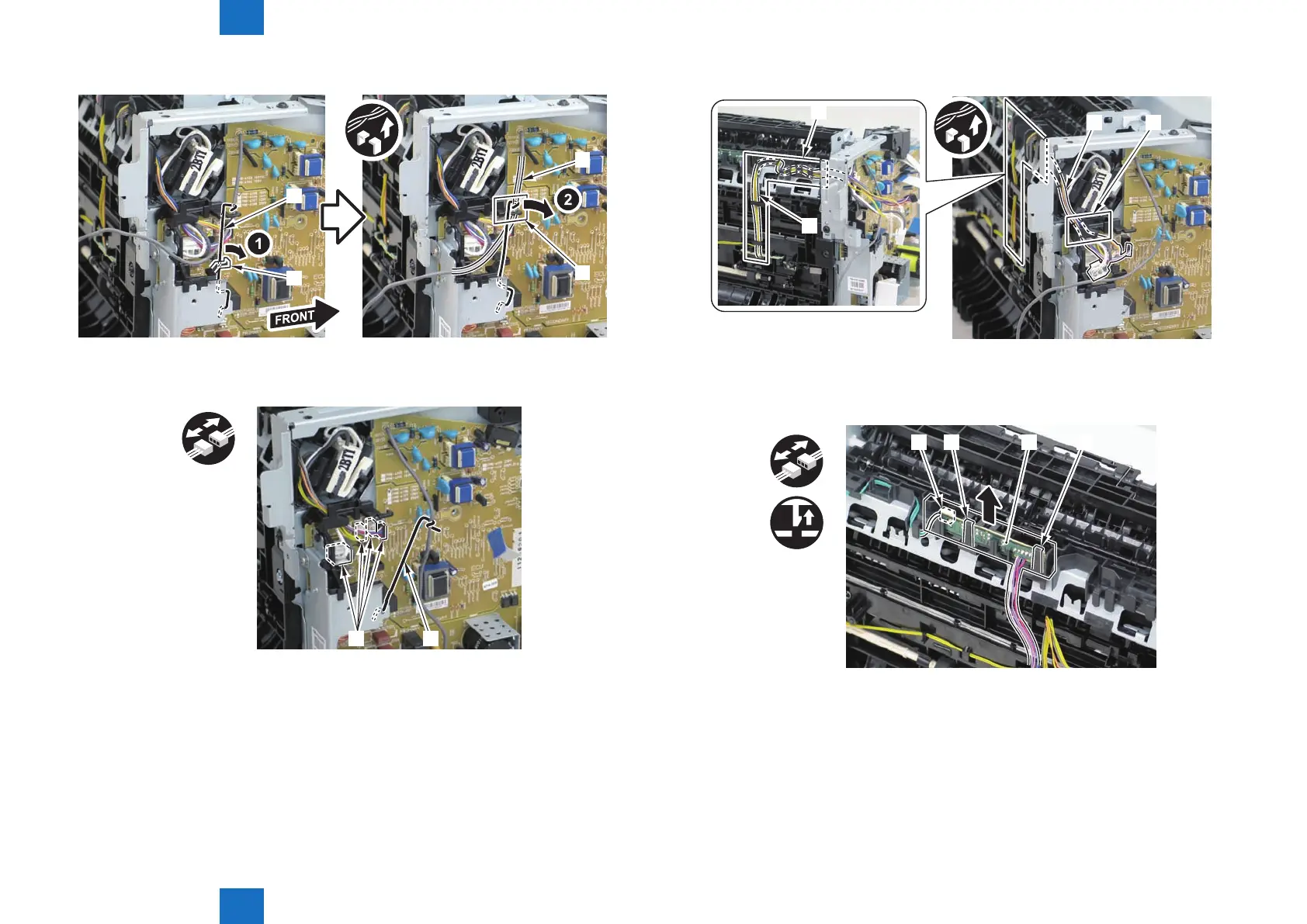

3)Remove the harness spring[1] from the hook[2], and free the harness[3] from the guide[A].
[1]
[2]
[3]
[A]
x4
[1][2]
F-4-360
F-4-361
5)Remove the harness[1] from the guide[A] and [B].
[1] [A]
[1]
[B]
6)Remove the xing delivery/paper width sensor PCB[1]
• 1 connector
• 2 claws[3]
x2
[2] [3] [3][1]
F-4-362
F-4-363
4)
Remove the harness retaining spring [1] and 4 connectors [2].
