Disassembly/Assembly > Controller System > Removing the Fixing Delivery/Paper Width Sensor PCB(MF4870dn/MF4830d) > Procedure
Disassembly/Assembly > Controller System > Removing the Fixing Delivery/Paper Width Sensor PCB(MF4870dn/MF4830d) > Procedure

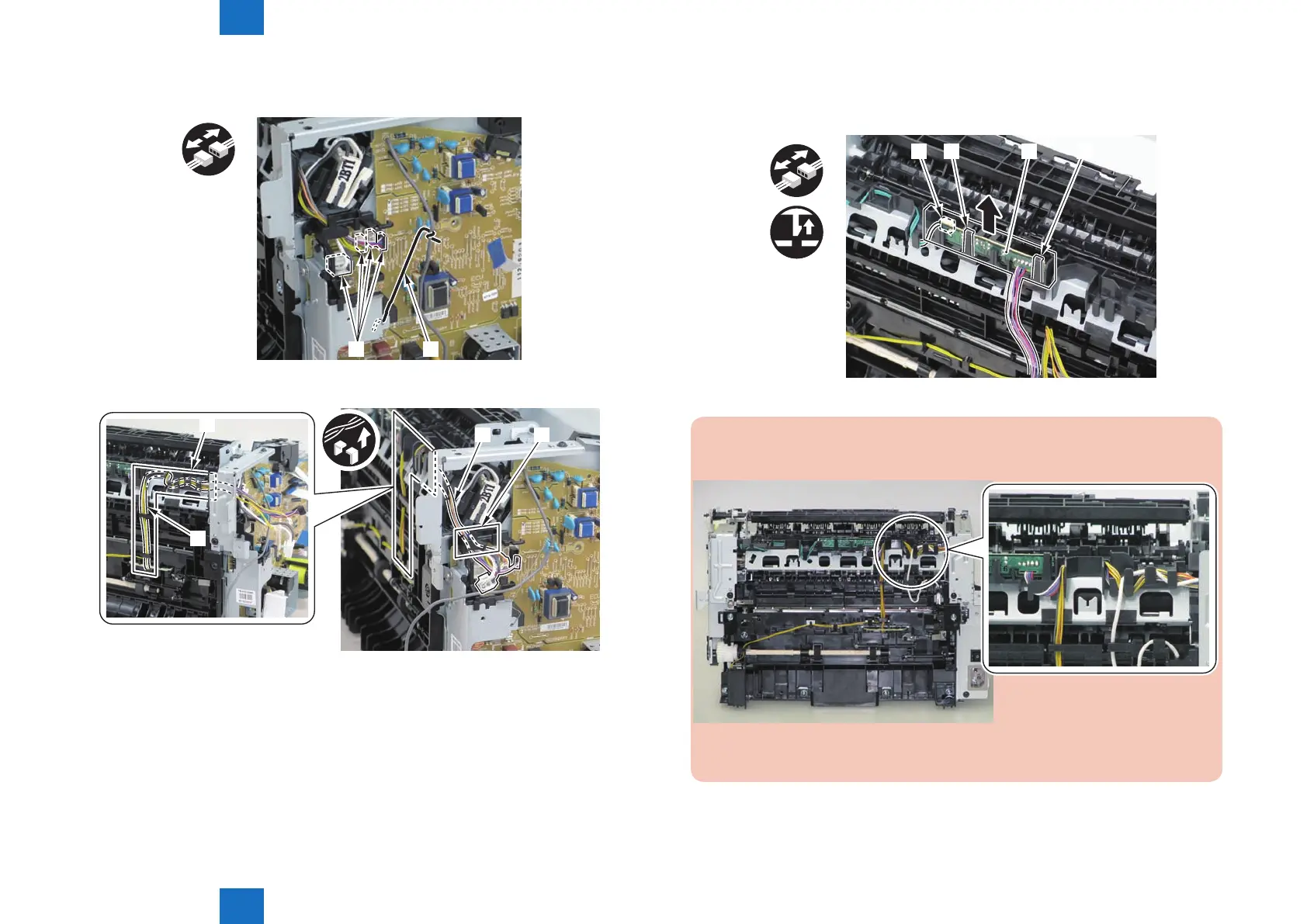

4)Remove the harness retaining spring[1] and 4 connectors[2]
x4
[1][2]
5)Remove the harness[1] from the guide[A] and [B].
[1] [A]
[1]
[B]
F-4-426
F-4-427
6)Remove the xing delivery/paper width sensor PCB[1]
• 1 connector
• 2 claws[3]
x2
[2] [3] [3][1]
Note:
The below picture shows how to wind the harness.it.
F-4-429
F-4-428
