Canon imageCLASS D530 - Page 253

4
4
4-177
4-177

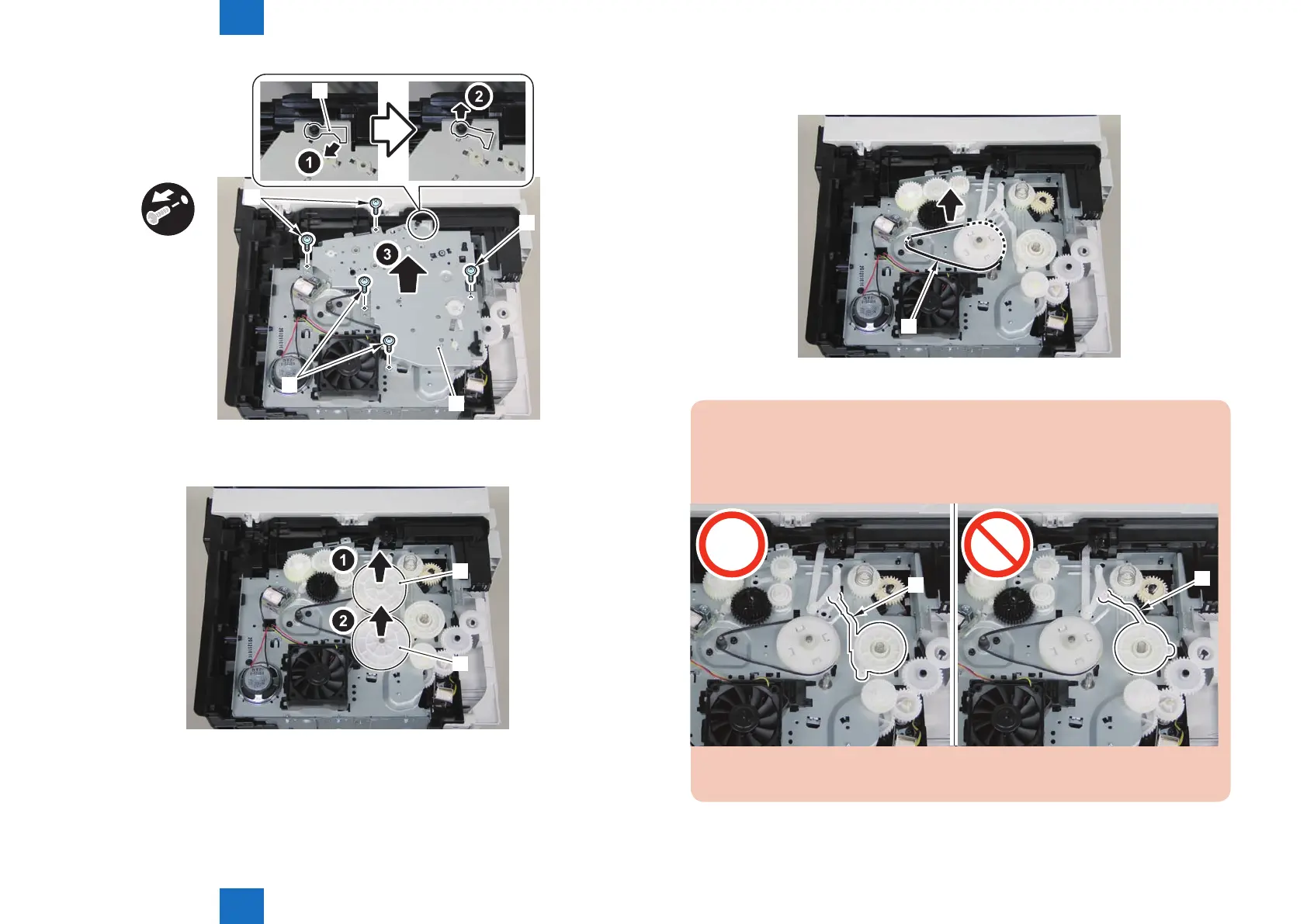

Disassembly/Assembly > Controller System > Removing the Drive Belt (MF4820d) > Procedure
Disassembly/Assembly > Controller System > Removing the Drive Belt (MF4820d) > Procedure
[1]
[2]
x5
[3]
[3]
[3]
4)Remove the xing transmission gear[1] and the cartridge transmission gear[2]
[1]
[2]
F-4-443
F-4-444
5)Remove the drive belt.
[1]
Caution:
When assembling the drive gear, install the cartridge arm [1] according to the position
shown in the left picture.
[1]
[1]
F-4-446
F-4-445
