Disassembly/Assembly > Controller System > Removing the Paper Leading Edge Sensor PCB(D530) > Procedure
Disassembly/Assembly > Controller System > Removing the Paper Leading Edge Sensor PCB(D530) > Procedure

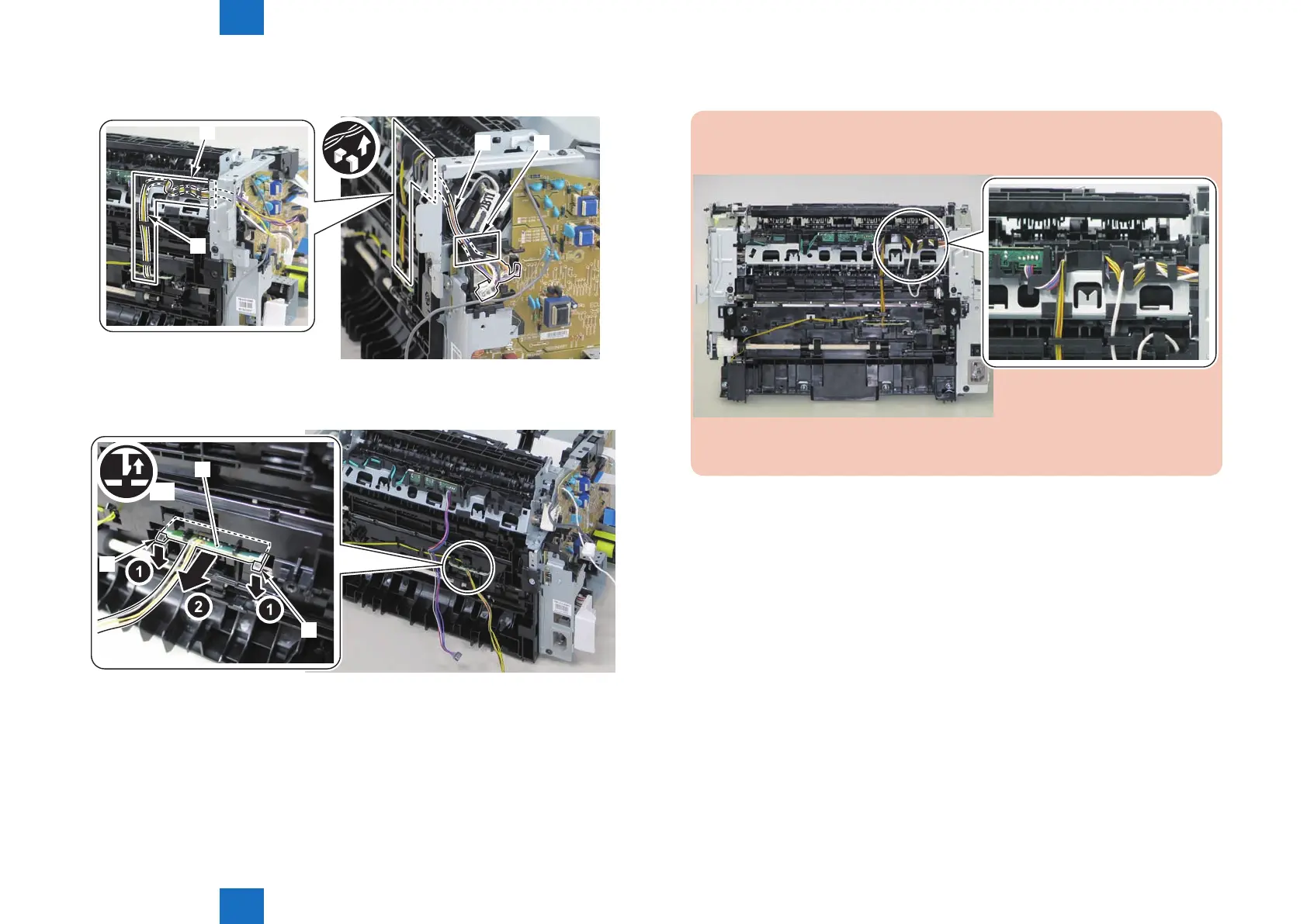

5)Remove the harness[1] from the guide[A] and [B].
[1] [A]
[1]
[B]
6)Remove the paper leading edge sensor PCB[1]
• 2 claws[2]
x2
[1]
[2]
[2]
F-4-531
F-4-532
Note:
The below picture shows how to wind the harness.
F-4-533
