Canon imageCLASS D530 - Page 376

4
4
4-300
4-300
Disassembly/Assembly > Fixing System > Removing the Fixing Assembly (D530) > Procedure
Disassembly/Assembly > Fixing System > Removing the Fixing Assembly (D530) > Procedure

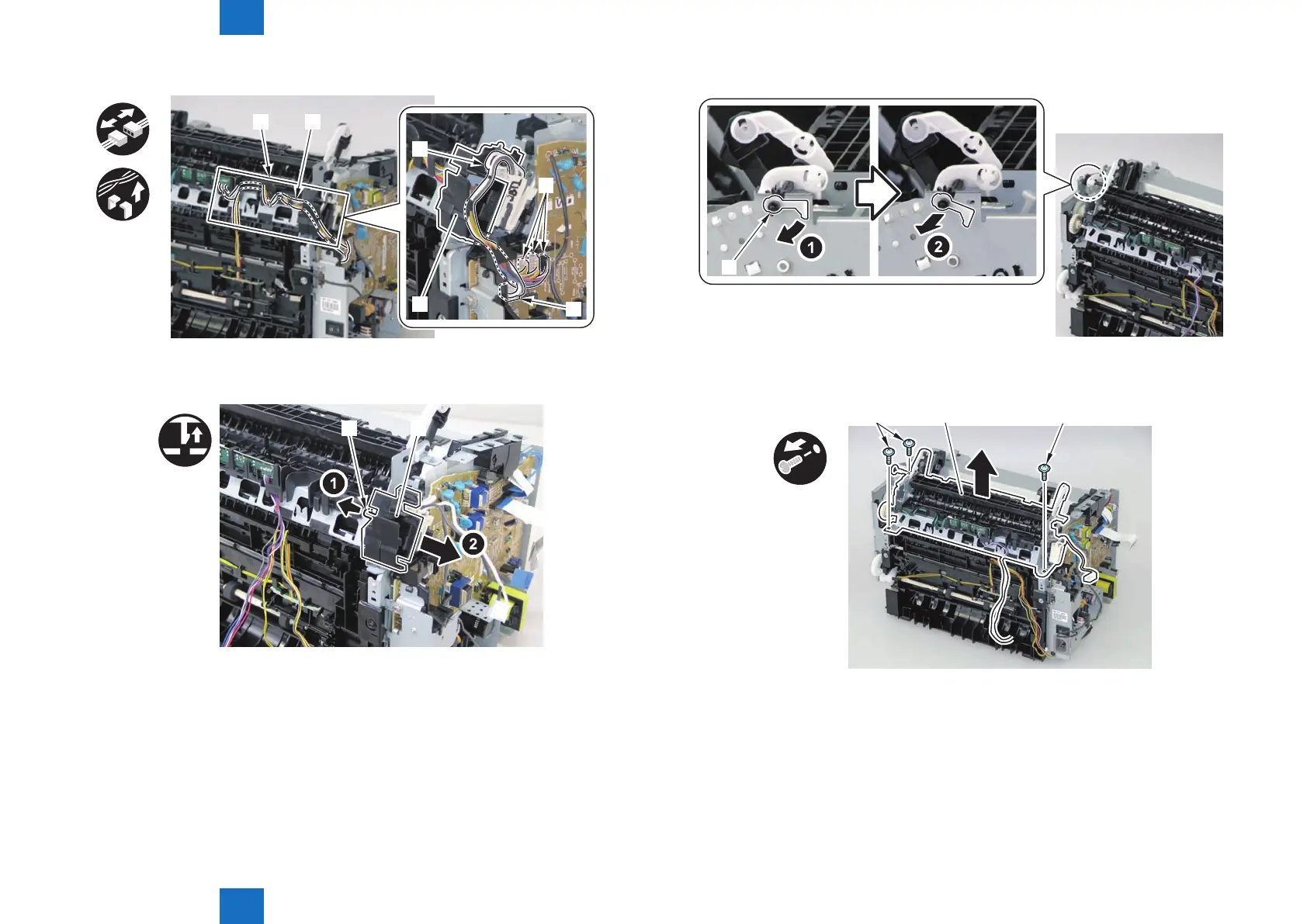

7) Disengage the xing harness [4] from the harness holder [3].
[1]
[1]
[4]
[3]
[A] [2]
x4
8) Remove the harness holder [1].
• 1 claw [2]
[1][2]
F-4-824
F-4-825
9) Remove the shaft support [1] of the delivery roller.
[1]
10) Remove the xing assembly [1].
• 3 screws [2]
x3
[2]
[2]
[1]
F-4-826
F-4-827
