Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Solenoid (MF4890dw/MF4880dw) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Solenoid (MF4890dw/MF4880dw) > Procedure

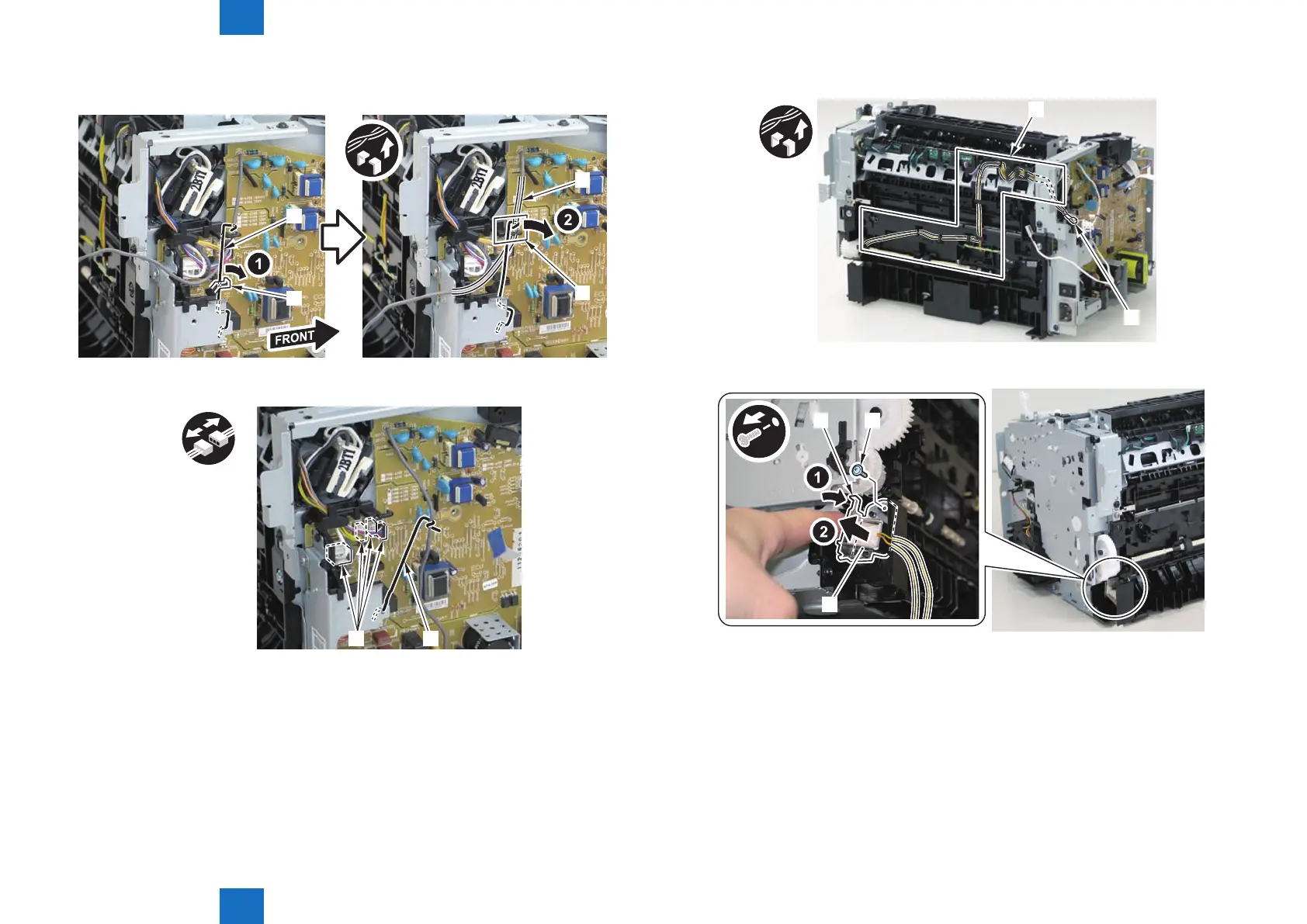

3)Remove the harness retaining spring[1] from the hook[2], and free the harness[3] from the
guide[A].
[1]
[2]
[3]
[A]
4)Remove the harness retaining spring[1] and 4 connectors[2].
x4
[1][2]
F-4-881
F-4-882
5)Free the pickup solenoid harness[1] from the harness guide[A]
[1]
[A]
6)Remove the screw[1], move the solenoid arm[2] and remove the pickup solenoid[3].
[1][2]
[3]
F-4-883
F-4-884
