Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Unit (MF4870dn/MF4830d) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Unit (MF4870dn/MF4830d) > Procedure

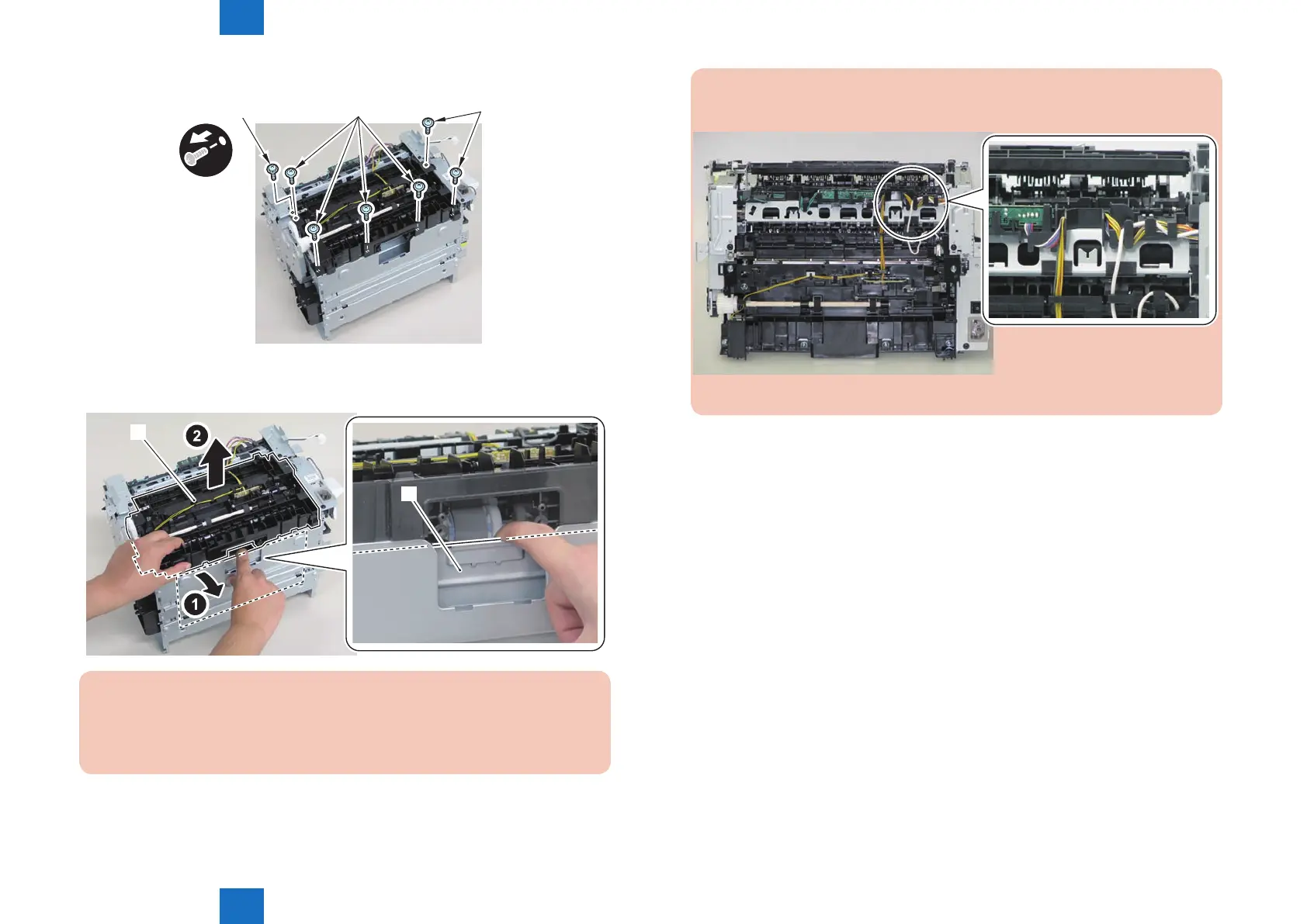

8) Remove the 6 screws (TP) [1] and the screw (with washer) [2].
x7
[2]
[1] [1]
9)Remove the pickup unit[2] while opening the pickup tray[1]
[2]
[1]
Caution:
When installing/removing the pickup unit, be sure to do so while opening the pickup
tray.
F-4-904
F-4-905
Note:
The below picture shows how to wind the harness.
F-4-906
