Disassembly/Assembly > Pickup And Feeding System > Removing the Duplex Feed Unit (MF4820d) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Duplex Feed Unit (MF4820d) > Procedure

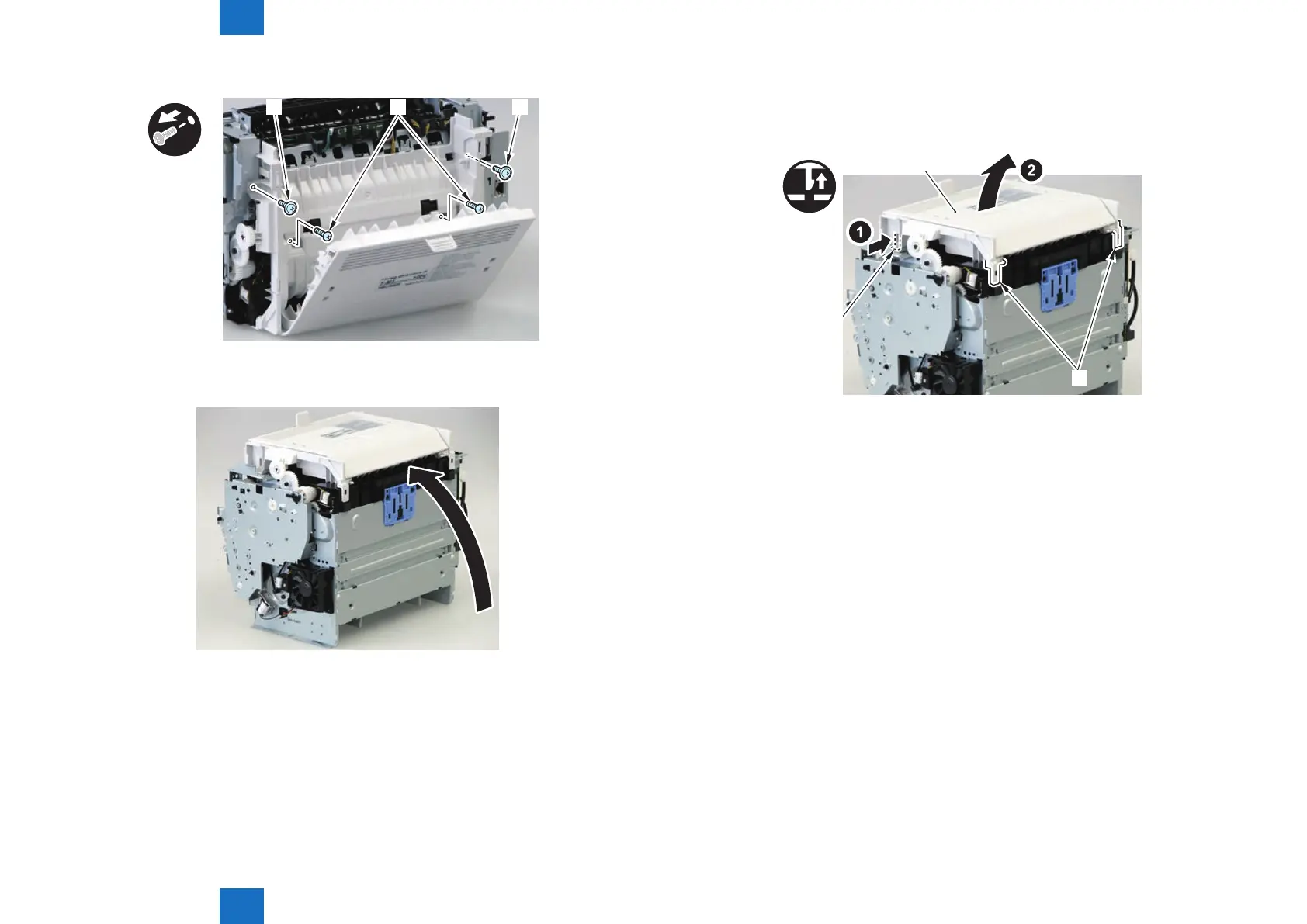

2) Remove the 2 screws (TP) [1] and 2 screws (tapping) [2] using a stubby screwdriver.
x4
[1][1]
[2]
3) Close the rear cover.
4) Face the front of the host machine downwards.
F-4-951
F-4-952
5)Remove the duplex feed unit[1].
• 1 claw[2]
• 2 hooks[3]
[2]
[1]
[3]
F-4-953
