Disassembly/Assembly > Pickup And Feeding System > Removing the Duplex Solenoid (MF4820d) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Duplex Solenoid (MF4820d) > Procedure

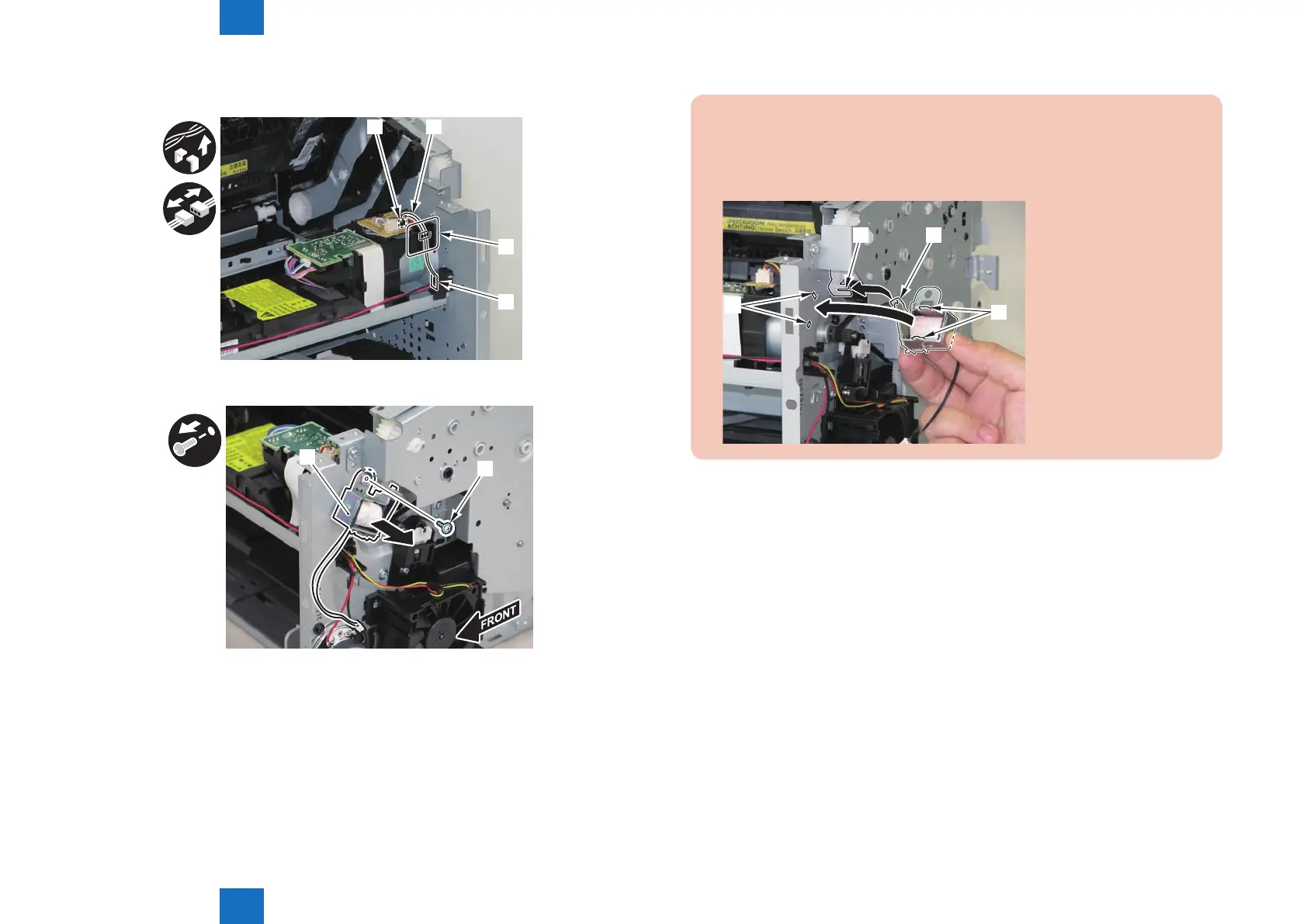

2)Free the solenoid harness[1] from the guide[A], and put it through the hole[B] of the right
side plate to the outside.
[2]
[A]
[1]
[B]
3)Remove the duplex solenoid[1].
[1]
[2]
F-4-957
F-4-958
Caution:
When mounting the duplex solenoid, align the solenoid lever [1] with the groove in
the link [2], and insert the 2 solenoid positioning protrusions [3] into the 2 positioning
holes [4] in the side panel to mount the solenoid.
[4]
[3]
[1][2]
