Canon imageCLASS D530 - Page 426

4
4
4-350
4-350
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Unit (D530) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Unit (D530) > Procedure

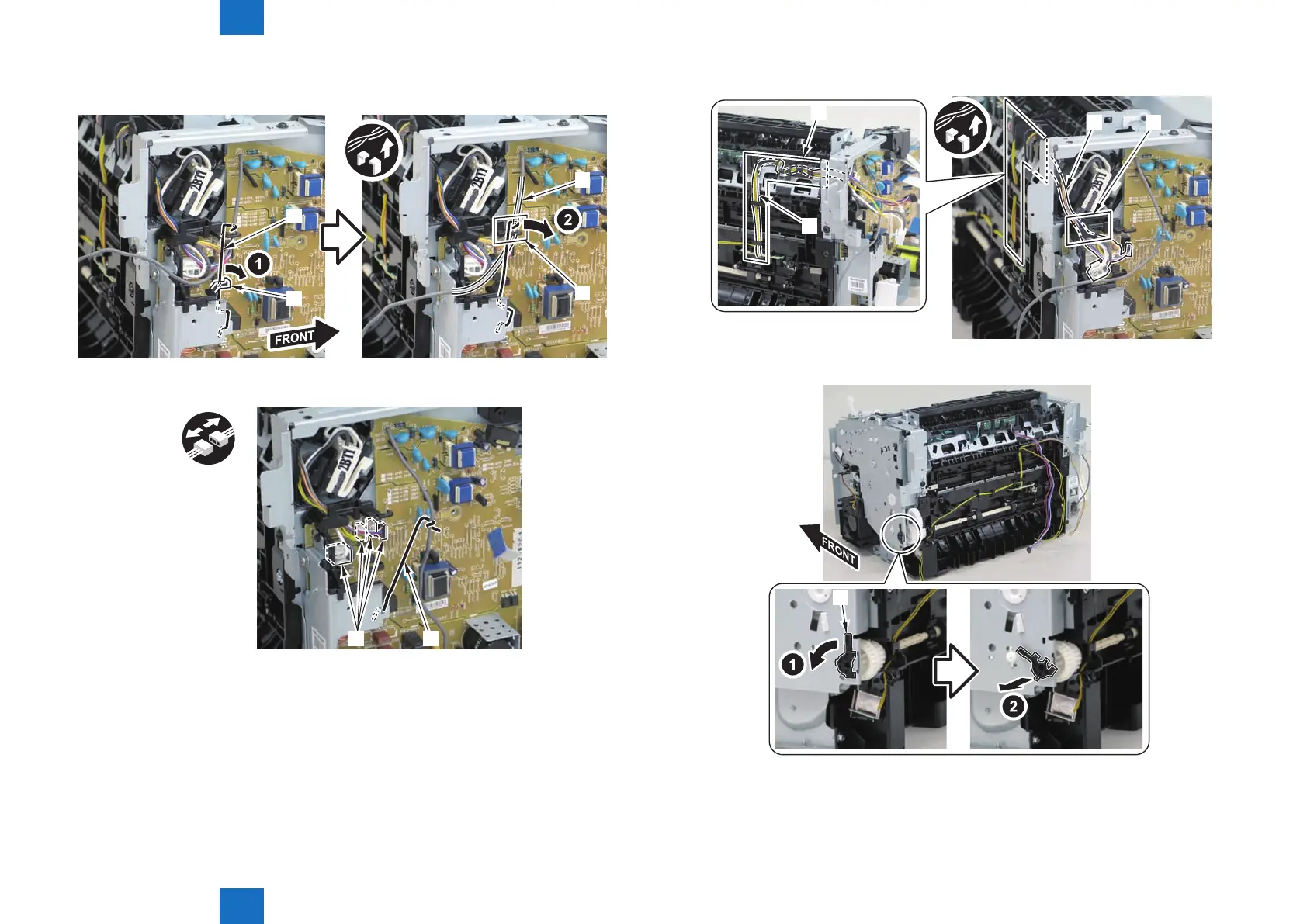

3)Remove the harness retaining spring[1] from the hook[2], and free the harness[3] from the
guide[A].
[1]
[2]
[3]
[A]
4)Remove the harness retaining spring[1] and 4 connectors[2].
x4
[1][2]
F-4-962
F-4-963
5)Remove the harness[1] from the guide[A] and [B].
[1] [A]
[1]
[B]
6)Remove the shaft retainer[1]
[1]
F-4-964
F-4-965
