Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Unit (MF4780w/MF4770n/MF4750/MF4730) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Unit (MF4780w/MF4770n/MF4750/MF4730) > Procedure

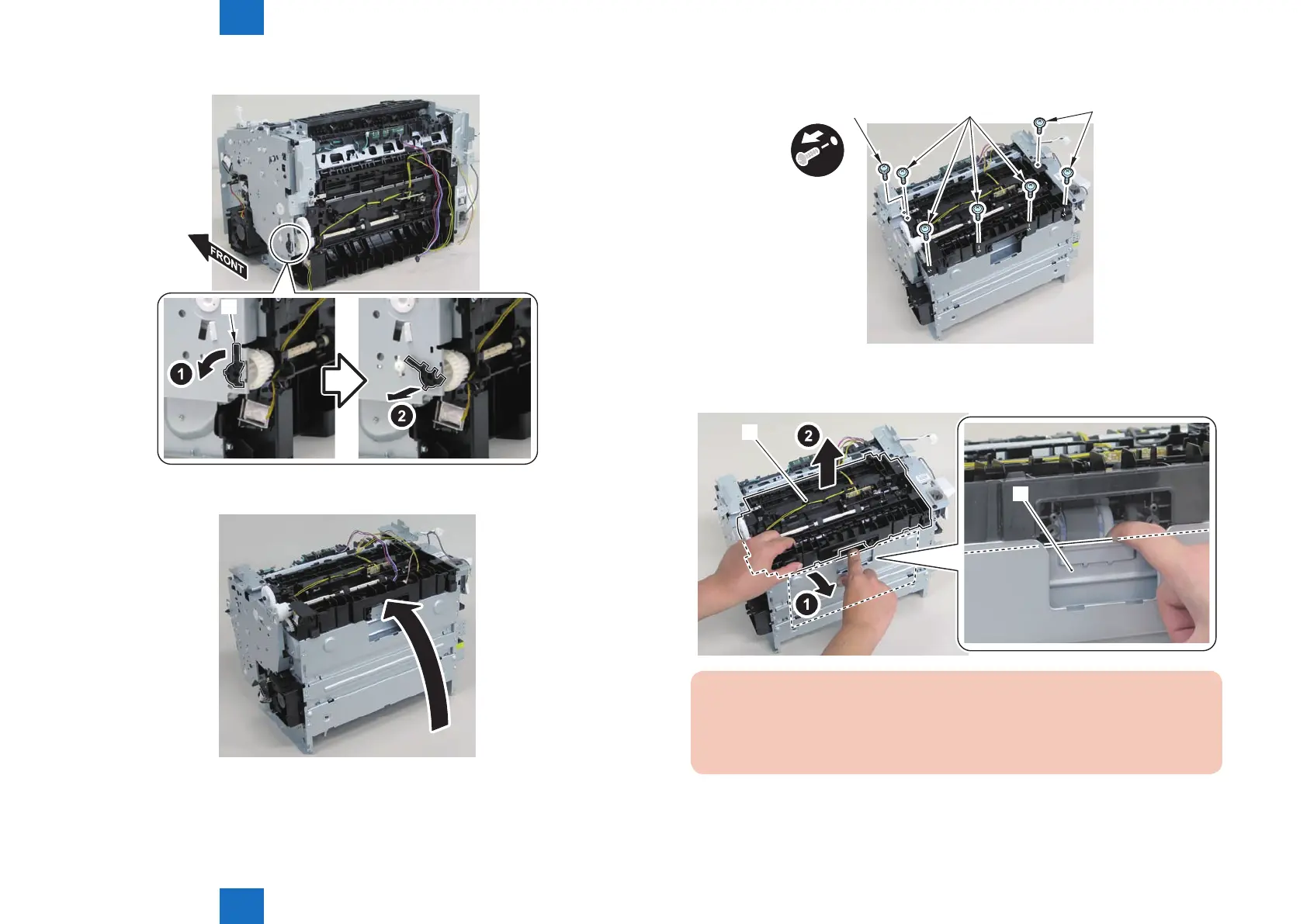

6)Remove the shaft retainer[1]
[1]
7)Face the front of the host machine downwards.
F-4-999
F-4-1000
8) Remove the 6 screws (TP) [1] and the screw (with washer) [2].
x7
[2]
[1] [1]
9)Remove the pickup unit[2] while opening the pickup tray[1]
[2]
[1]
Caution:
When installing/removing the pickup unit, be sure to do so while opening the pickup
tray.
F-4-1001
F-4-1002
