Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Unit (MF4720w/MF4712/MF4710) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Unit (MF4720w/MF4712/MF4710) > Procedure

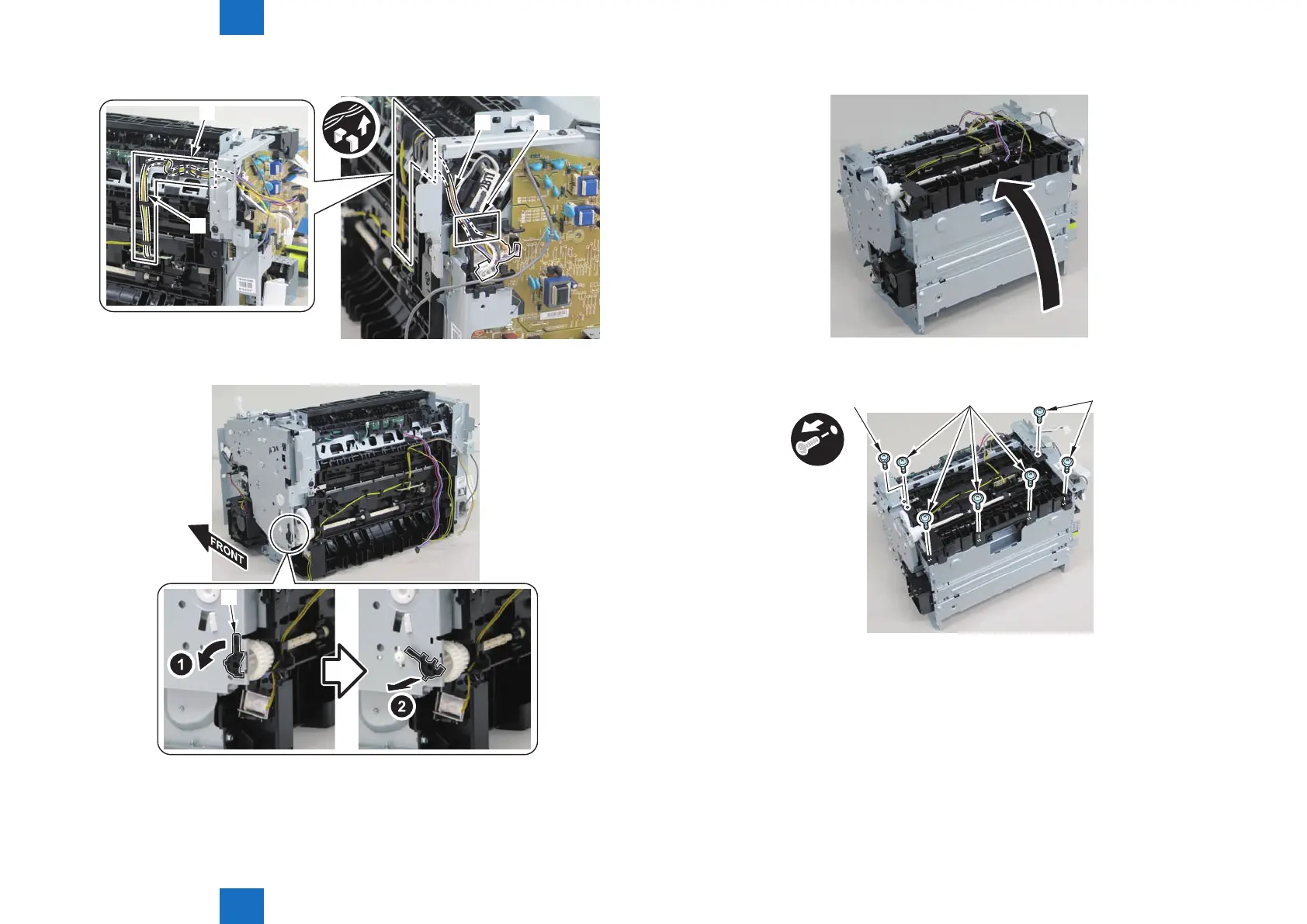

5)Remove the harness[1] from the guide[A] and [B].
[1] [A]
[1]
[B]
6)Remove the shaft retainer[1]
[1]
F-4-1021
F-4-1022
7)Face the front of the host machine downwards.
8) Remove the 6 screws (TP) [1] and the screw (with washer) [2].
x7
[2]
[1] [1]
F-4-1023
F-4-1024
