Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Solenoid (MF4720w/MF4712/MF4710) > Procedure
Disassembly/Assembly > Pickup And Feeding System > Removing the Pickup Solenoid (MF4720w/MF4712/MF4710) > Procedure

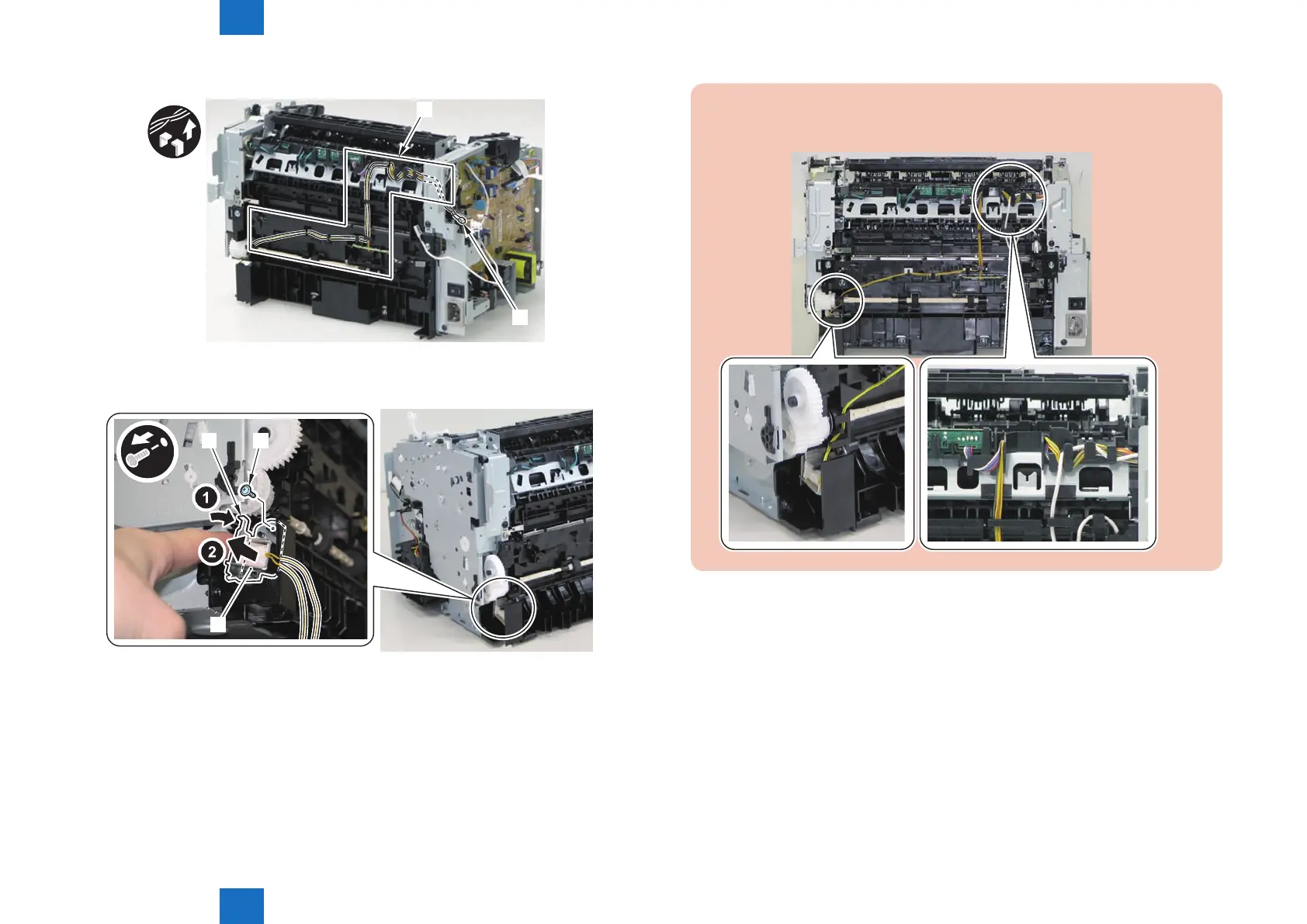

5)Free the pickup solenoid harness[1] from the harness guide[A]
[1]
[A]
6)Remove the screw[1], move the solenoid arm[2] and remove the pickup solenoid[3].
[1][2]
[3]
F-4-1035
F-4-1036
Caution:
The below picture shows how to wind the harness.
