Disassembly/Assembly > List Of Parts > Electrical Components Layout Drawing > Sensor / Switch
Disassembly/Assembly > List Of Parts > Electrical Components Layout Drawing > Sensor / Switch
■

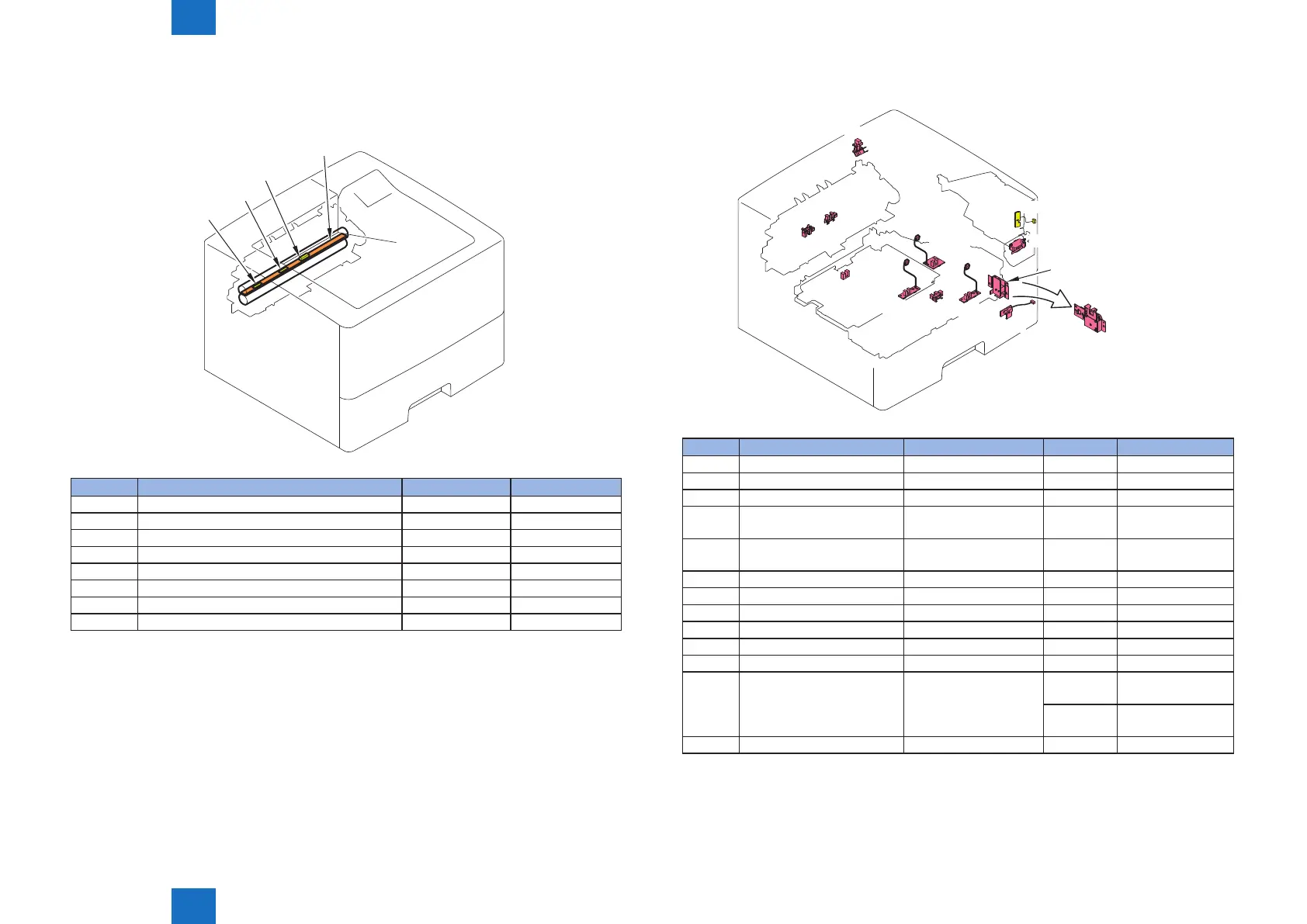

Heater / Thermo Switch / Thermistor
TP1(120V)
TP1B(200V)
TP1C(100V)
H1(120V)
H2(200V)
H3(100V)
TH1
TH2
Key No. Name Main Units Reference
H1 Fixing Heater (120V) Fixing Unit -
H2 Fixing Heater (200V) Fixing Unit -
H3 Fixing Heater (100V) Fixing Unit -
TH1 Fixing Sub Thermistor Fixing Unit -
TH2 Fixing Main Thermistor Fixing Unit -
TP1 Fixing Thermo Switch (120V) Fixing Unit -
TP1B Fixing Thermo Switch (200V) Fixing Unit -
TP1C Fixing Thermo Switch (100V) Fixing Unit -
F-3-9
T-3-9
■
Sensor / Switch
PS205
PS3
PS4
PS1
PS2
PS8001
PS215
PS502
PS225
SW235
SW501
TH3
SW1301
(LBP3560/6750dn)
SW1301
(LBP3580/6780x)
Key No. Name Main Units Remarks Reference
PS1 Face-up Sensor Product Conguration - -
PS2 Fixing Delivery Sensor Fixing Unit - -
PS3 Cassette Paper Sensor Pickup Unit - -
PS4 Face-Down Tray Paper Full
Sensor
Product Conguration - -
PS205 Multi-purpose Tray Paper
Sensor
Product Conguration - -
PS215 Top Sensor Product Conguration - -
PS225 Paper Width Sensor Product Conguration - -
PS502 Duplex Feede Sensor Product Conguration - -
PS8001 Rear Cover Sensor Product Conguration - -
SW235 Cassette Paper Switch Product Conguration - (Refer to page 3-57)
SW501 Cartridge Door Switch Product Conguration - (Refer to page 3-57)
SW1301 Power Switch Right Lower Cover LBP3560
/6750dn
-
LBP3580
/6780x
(Refer to page 3-40)
TH3 Environment Sensor Product Conguration - (Refer to page 3-42)
F-3-10
T-3-10
